Page 57
Ref # Part # Part Name & Description
Ref # Part # Part Name & Description
MODELS: WS-48315 / WS-55315 / WS-65315
Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

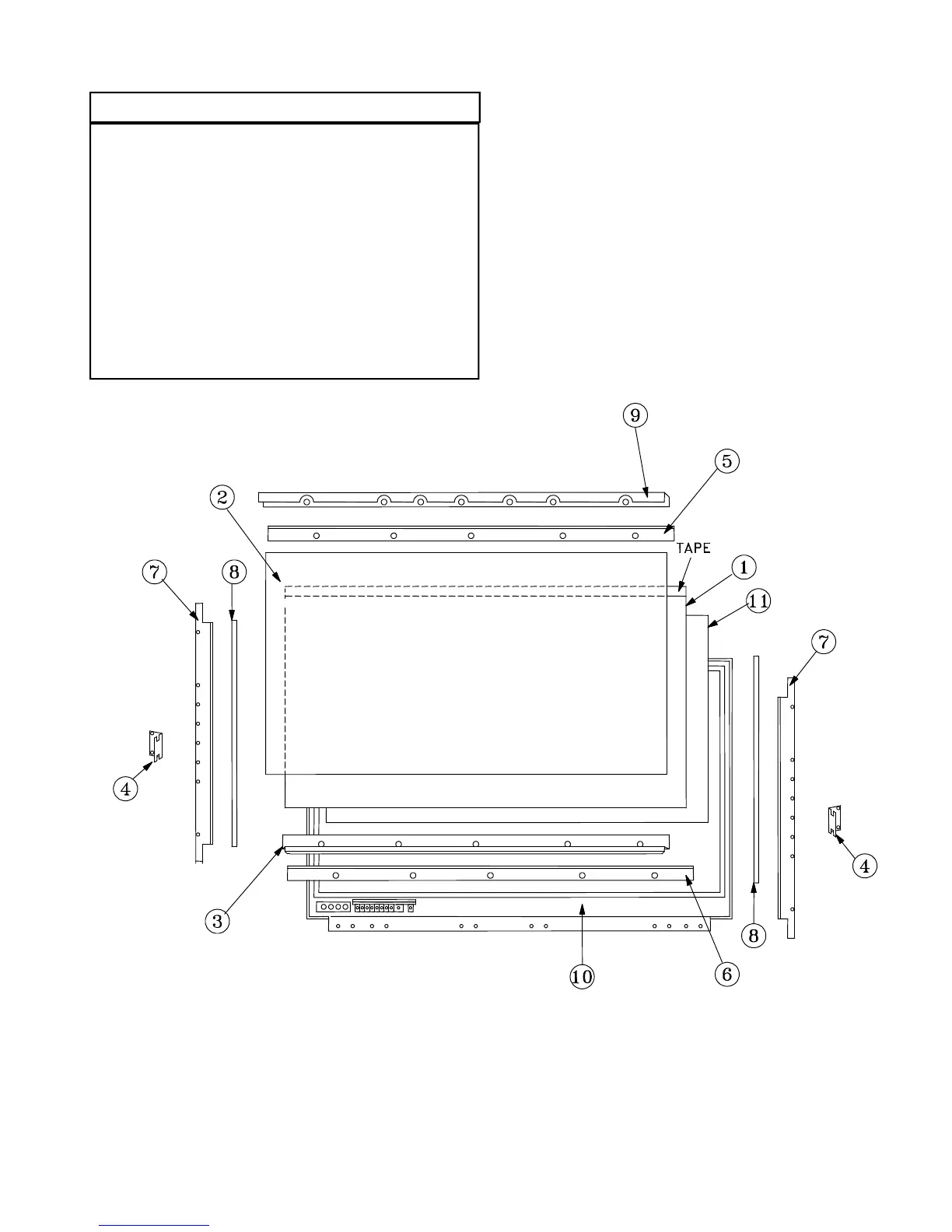

Figure 1: WS-48315
Screen Assembly Parts (Rear View)
SCREEN ASSEMBLY PARTS
WS-48315 Screen Parts (Figure 1)
(1)
491P138020 SCREEN-LENTICULAR - 48"
(2) 491P139020 LENS-FRESNEL - 48"
(3) 597C027010 BRACKET-SCREEN FRAME
(4) 598D339010 BRACKET-SCREEN-SIDE
(5) 622B010010 HOLDER-SCREEN - TOP
(6) 622B011010 HOLDER-SCREEN - BOTTOM
(7) 622B012010 HOLDER-SCREEN - SIDE
(8) 622B013030 CLIP-DIAMOND SHIELD - 48"
(9) 635B109010 STIFFENER-SCREEN - TOP
(10) 751A005070 BEZEL-FRONT
(11) 760D628090 DIAMOND SHIELD - 48"
To Next Page
