MODELS: WS-48315 / WS-55315 / WS-65315
Page 23

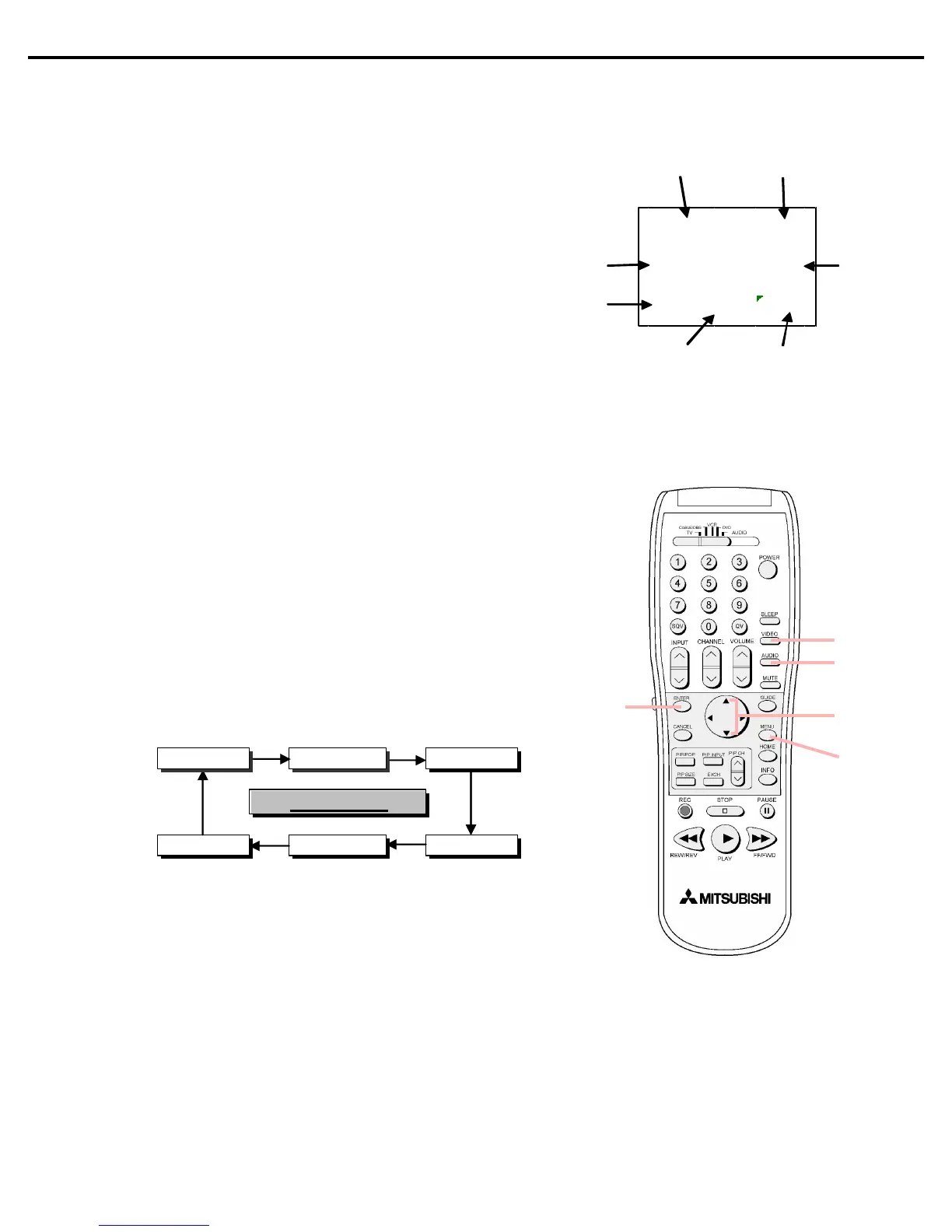

5. Circuit Adjustment Mode
Except for the following, all adjustment items must be performed
using the remote hand unit.
• CRT Cutoff
• Lens Focus
• Electrostatic Focus
A. Activating the Circuit Adjustment Mode
1. Press the "MENU" button on a remote hand unit.
2. Press the number buttons "0", 3", "5", "7" in sequence.
The screen will change to the Adjustment Mode.
Note: Repeat steps 1 and 2 if the circuit
adjustment mode display does not appear
on screen
B. Selection of adjustment Functions and
Adjustment Items
To select an adjustment item in the circuit adjustment mode,
first select the adjustment function that includes the specific
adjustment item to be selected. Then, select the adjustment
item.
Refer to the following pages for the listing of adjustment
functions and adjustment items.
1. Press the "AUDIO" button on a remote hand unit to
select an adjustment function. Each time the button
is pressed, the Function changes in the following
sequence:
2. Press the “VIDEO” button to select a specific
Adjustment Item. The Item number increases each
time the “VIDEO” button is pressed.
C. Changing Data
After selecting an adjustment Item, use the “ADJUST
UP/DOWN” button to change data.
• Press “ADJUST DOWN” to decrease the data value.
• Press “ADJUST UP” to increase the data value.
FUNCTION CHASSIS
Video Chr V24
MODE
Mode 0 NTSC
SIGNAL
ITEM#
1 SCT 55
ABBREV. DATA
FUNCTIONS
ENTER
VIDEO
AUDIO
ADJUST
UP/DN
MENU
To Next Page
