Page 16
MODELS: WS-48315 / WS-55315 / WS-65315
SERVICING PCBs

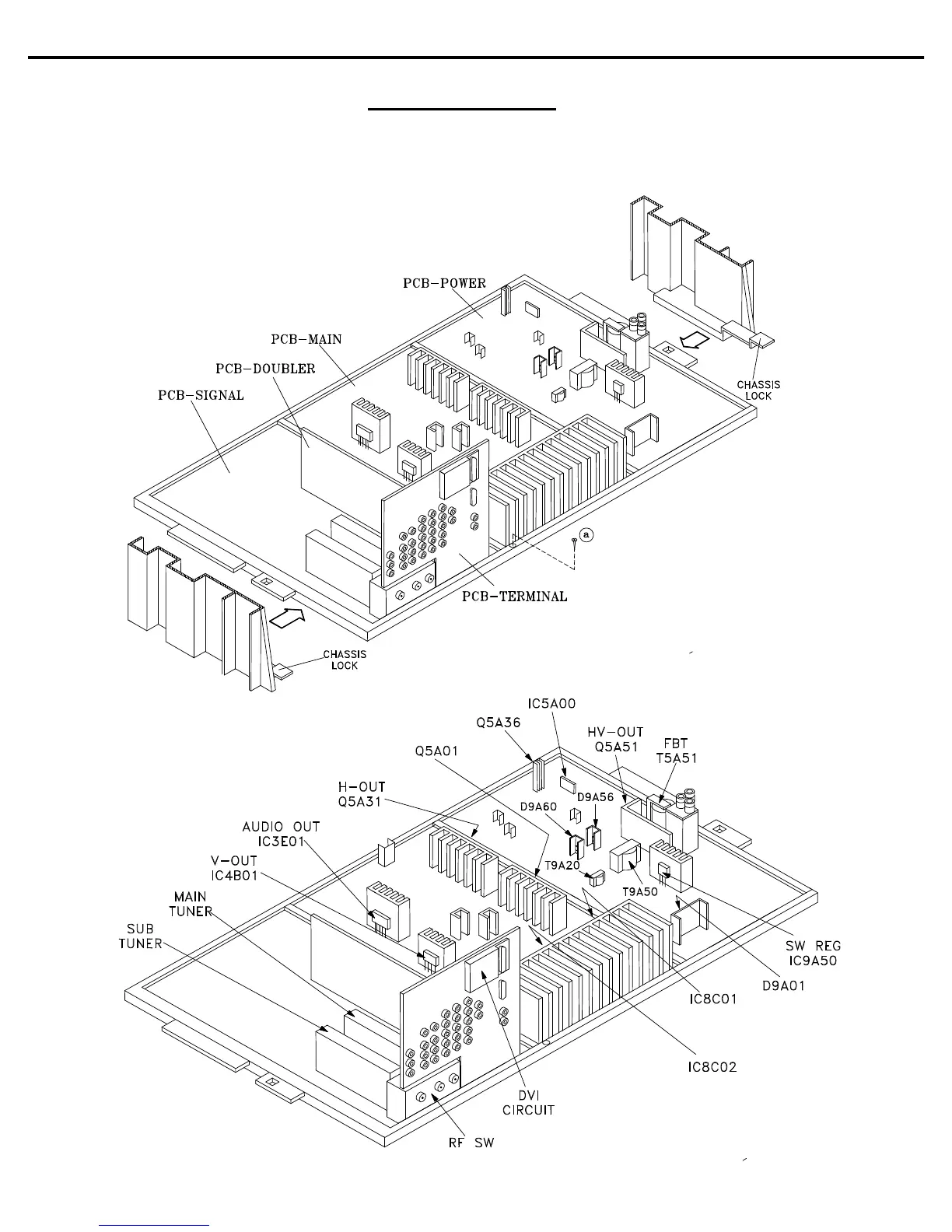

Chassis Removal and PCB Locations
Major Part Locations
Chassis Removal
1) Remove screw “a” from the Main Chassis.
2) Raise the two chassis locks on the inner sides of the
Lightbox Assembly and slide the chassis towards the
rear.
