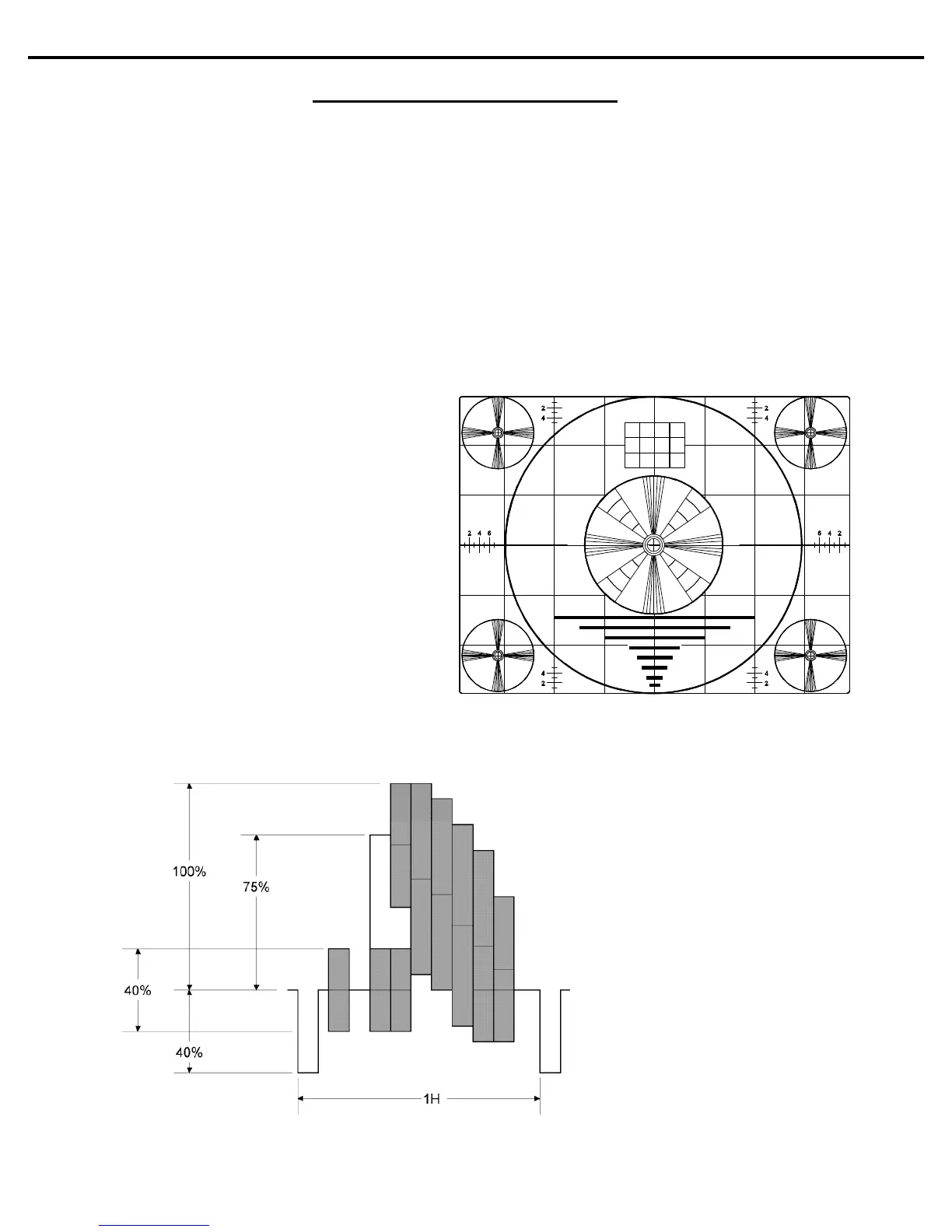

Page 20
MODELS: WS-48315 / WS-55315 / WS-65315
Monoscope Signal
Split-Field Color Bars (100% window)
ELECTRICAL ADJUSTMENTS
Note: Perform only the adjustments required.
Do not attempt an alignment if proper equipment is not available.
1. Test Equipment
Oscilloscope (Unless otherwise specified, use 10:1 probes)
Signal Generator (both SD and HD capable)
Direct Current Voltmeter
Direct Current Ampere Meter
2. Test Signal
A. Monoscope Signal
Note: If you do not have
a monoscope signal source,
connect the unit to a VCR
and play a Monoscope
*alignment tape.
(* Part Number: 859C568060)
B. Color Bar Signal
Use the color bar signal shown
below, unless otherwise specified
in this manual.
