Page 14
MODELS: WS-48315 / WS-55315 / WS-65315

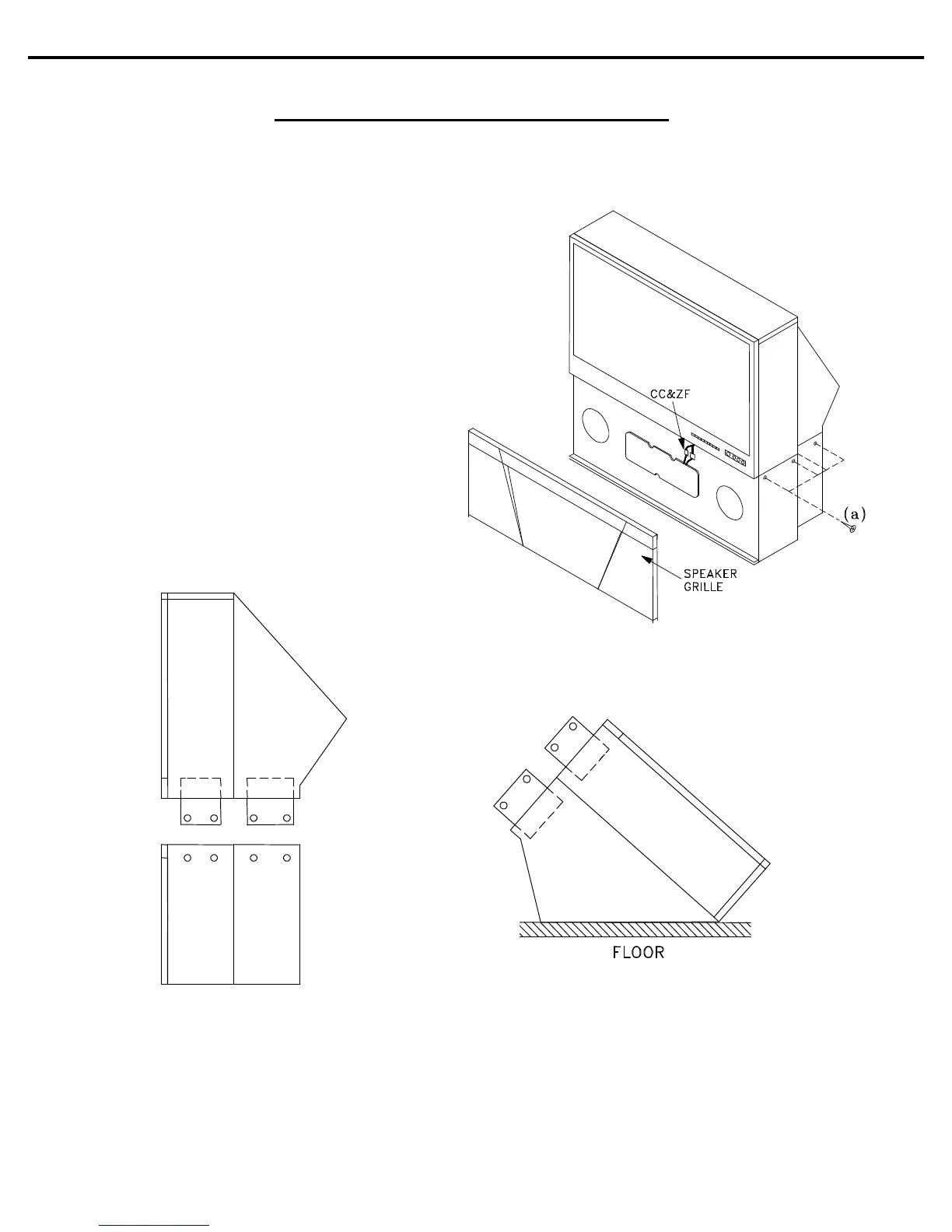

CABINET SEPARATION PROCEDURE
(WS-65315)
Cabinet Separation Precedure
(Figure 1)
1. Pull the Speaker Grille off.
2. Unplug connectors “CC” and ZF.
3. Remove 4 screws “a” on both sides of the
cabinet.
(Figure 2)
4. Carefully lift the cabinet top until the support
tabs clear the bottom cabinet.
(Figure 3)
5. Carefully rotate the cabinet top and place it on
the floor.
6. Reverse the procedure to mount the cabinet top
on the cabinet bottom.
Modes WS-65315 cabinet is assembled in two pieces. These two pieces may be separated to allow easier delivery
and setup.
Figure 1
Figure 2
Figure 3
