Mitsubishi WS-48315 User Manual

MODELS: WS-48315 / WS-55315 / WS-65315
Page 7
*Refer to PARTS LIST for Part Numbers

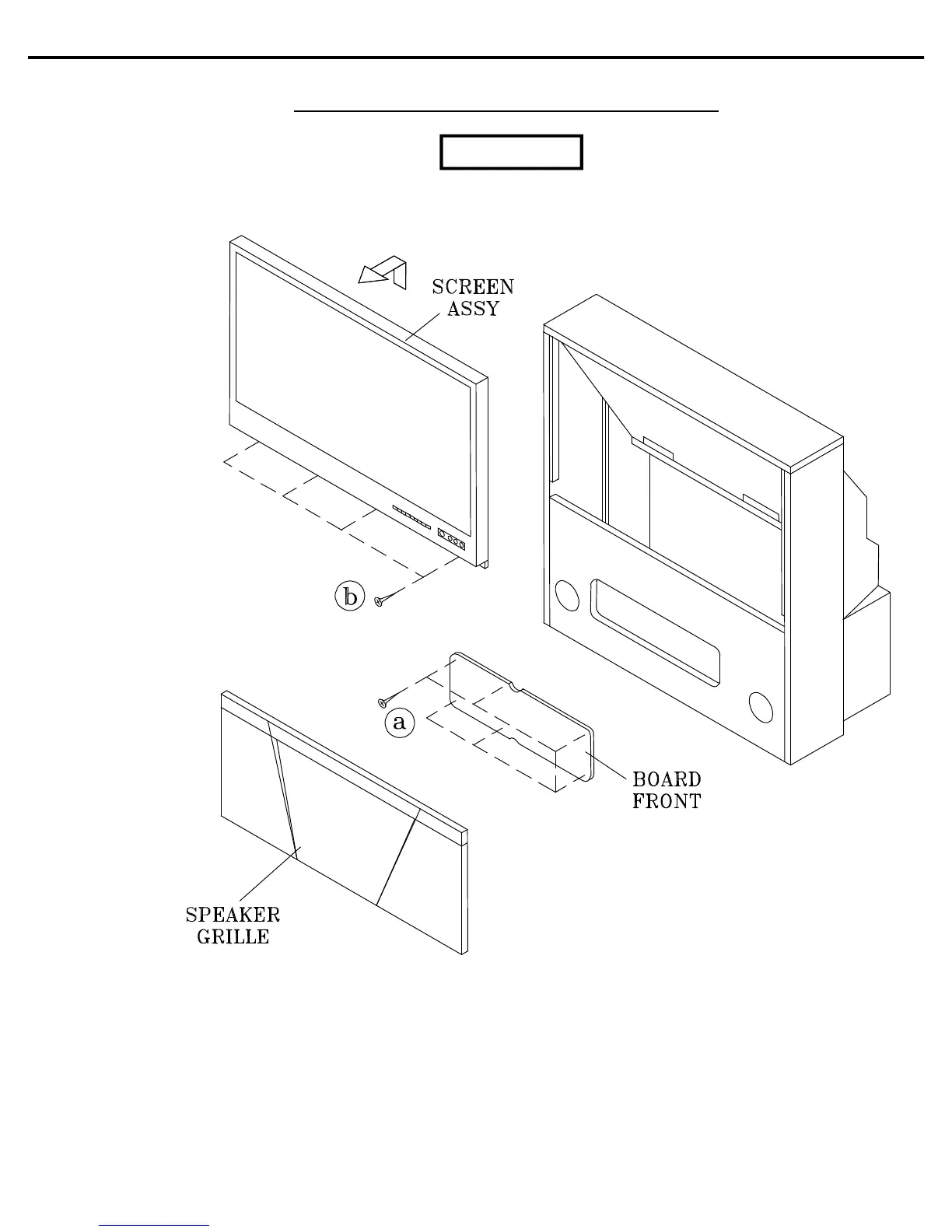

CABINET DISASSEMBLY (FRONT VIEW)
Front Cabinet Disassembly
1. Remove the Speaker Grille by pulling forward.
2. Remove the Board-Front by removing six screws "a".
3. Remove the Screen Assembly by removing four screws "b". Disconnect all cable harnesses between the
Screen Assembly and the PCB-Signal.
4. Lift the Screen Assembly and pull up and away from the cabinet as shown.
WS-48315
