2. Installation of the Lenticular Screen and Fresnel Lens
Note: Store the Lenticular Screen and Fresnel Lens in a cool dry place. High heat/humidity may
deform the Lenticular Screen and Fresnel Lens.
1. Apply double coated tape (Part # LENS-TAPE) along the top front edge of the Fresnel Lens
as shown in Figure 2-2. Refer to Table A for proper tape length.
2. Place the Fresnel Lens on top of the Lenticular Screen and apply pressure at the top edge to
bond them together as shown in Figure 2-2.
3. Reverse the disassembly procedure for that model to install the screens in the screen frame.
Lenticular Screen
Fresnel Lens
0.16 inch

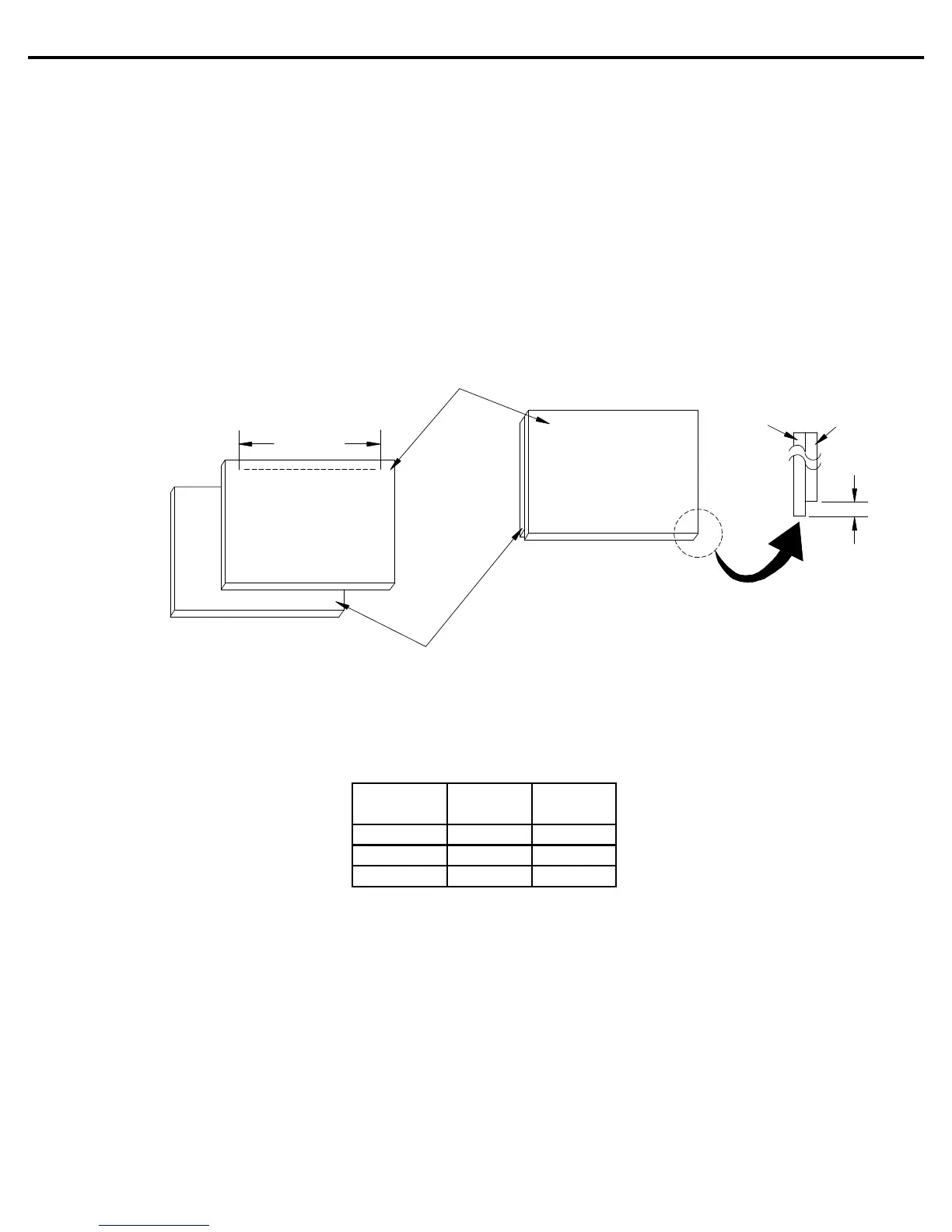

Figure 2-2
Lenticular
Screen
Fresnel
Lens
Top
Bottom
Double Sided Tape
(Part# LENS-TAPE)
( * X ) inch
Top
Bottom
Model
Screen
Size
Tape
Length
WS-48315 48" 41.76
WS-55315 55" 47.85
WS-65315 65" 56.55
Table A
