Mitsubishi WS-48315 User Manual

Page 58
Ref # Part # Part Name & Description
Ref # Part # Part Name & Description
MODELS: WS-48315 / WS-55315 / WS-65315
Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315
WS-55315 Screen Parts (Figure2)
(1) 491P103030 SCREEN-LENTICULAR - 55"
(2) 491P104030 LENS-FRESNEL - 55"
(3) 622B016010 CLIP-DIAMOND SHIELD - 55"
(4) 622C104010 HOLDER-SCREEN
(5) 701B481010 FRAME-SCREEN-TOP
(6) 701B482010 FRAME-SCREEN-SIDE
(7) 702A446010 CORNER-CAP
(8) 702A436010 PANEL-CONTROL
(9) 760D628080 DIAMOND SHIELD - 55"
(10) 598D491010 BRACKET-SCREEN SIDE
(11) 594C988010 BRACKET-SCREEN FRAME

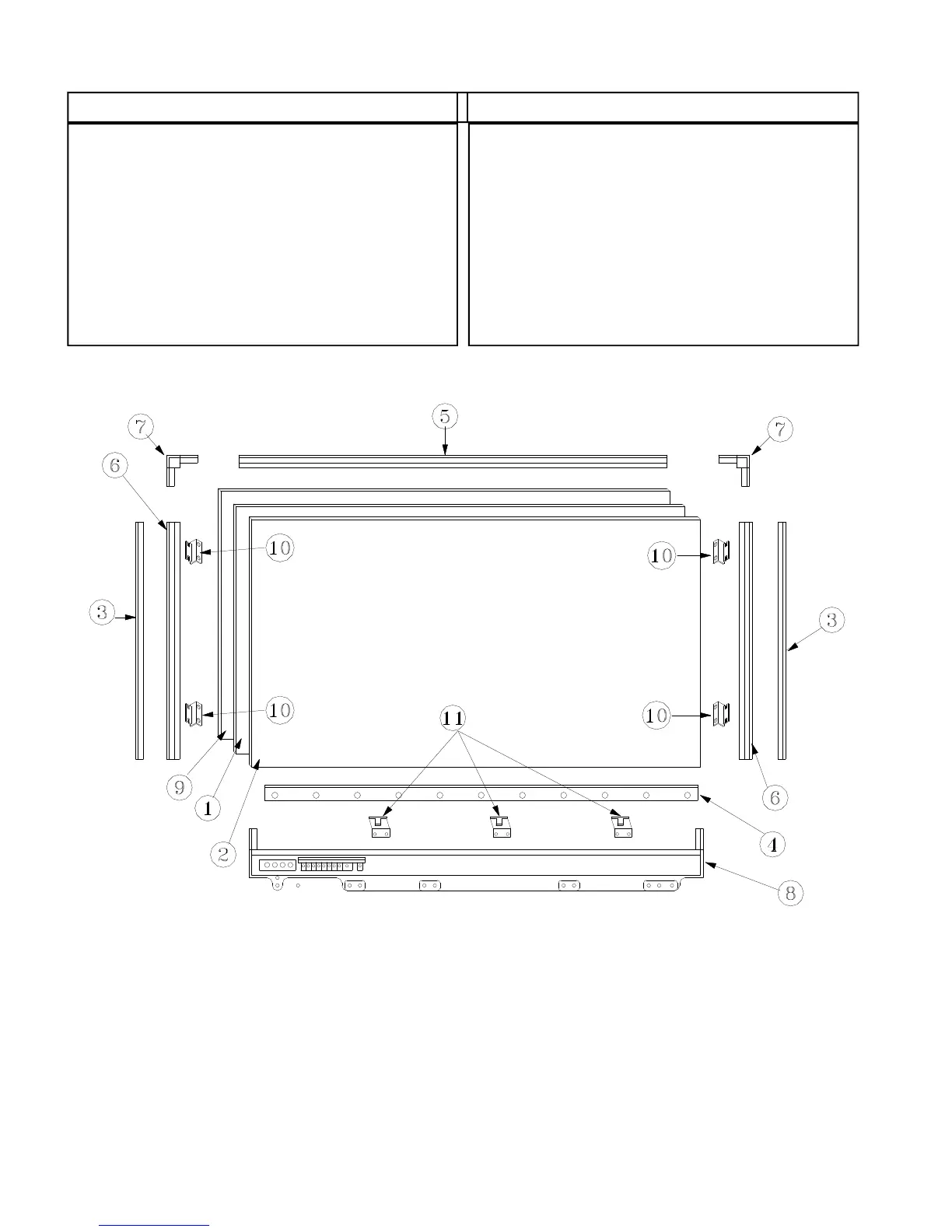

Figure 2: WS-55315 / WS-65315
Screen Assembly Parts (Rear View)
WS-65315 Screen Parts (Figure 2)
(1) 491P105050 SCREEN-LENTICULAR - 65"
(2) 491P106080 LENS-FRESNEL - 65"
(3) 622B016020 CLIP-DIAMOND SHIELD - 65"
(4) 622C104020 HOLDER-SCREEN
(5) 701B481020 FRAME-SCREEN-TOP
(6) 701B482020 FRAME-SCREEN-SIDE
(7) 702A446010 CORNER-CAP
(8) 702A437010 PANEL-CONTROL
(9) 760D627070 DIAMOND SHIELD - 65"
(10) 598D491010 BRACKET-SCREEN SIDE
(11) 594C988010 BRACKET-SCREEN FRAME
