Miyachi MG3D - Establishing Connections for Voltage Measurement

Operating Instructions MG3 Digital
Commissioning
76609409EN-BA-MG3D-V1_6.docx 19/82 2010-08-02
3.1.3 Establishing Connections for Voltage Measurement
If no threaded holes are provided for attaching the voltage measuring cables you may
make them yourselves.
Take care to position the threaded holes as close to the electrodes as possible without
compromising their stability!

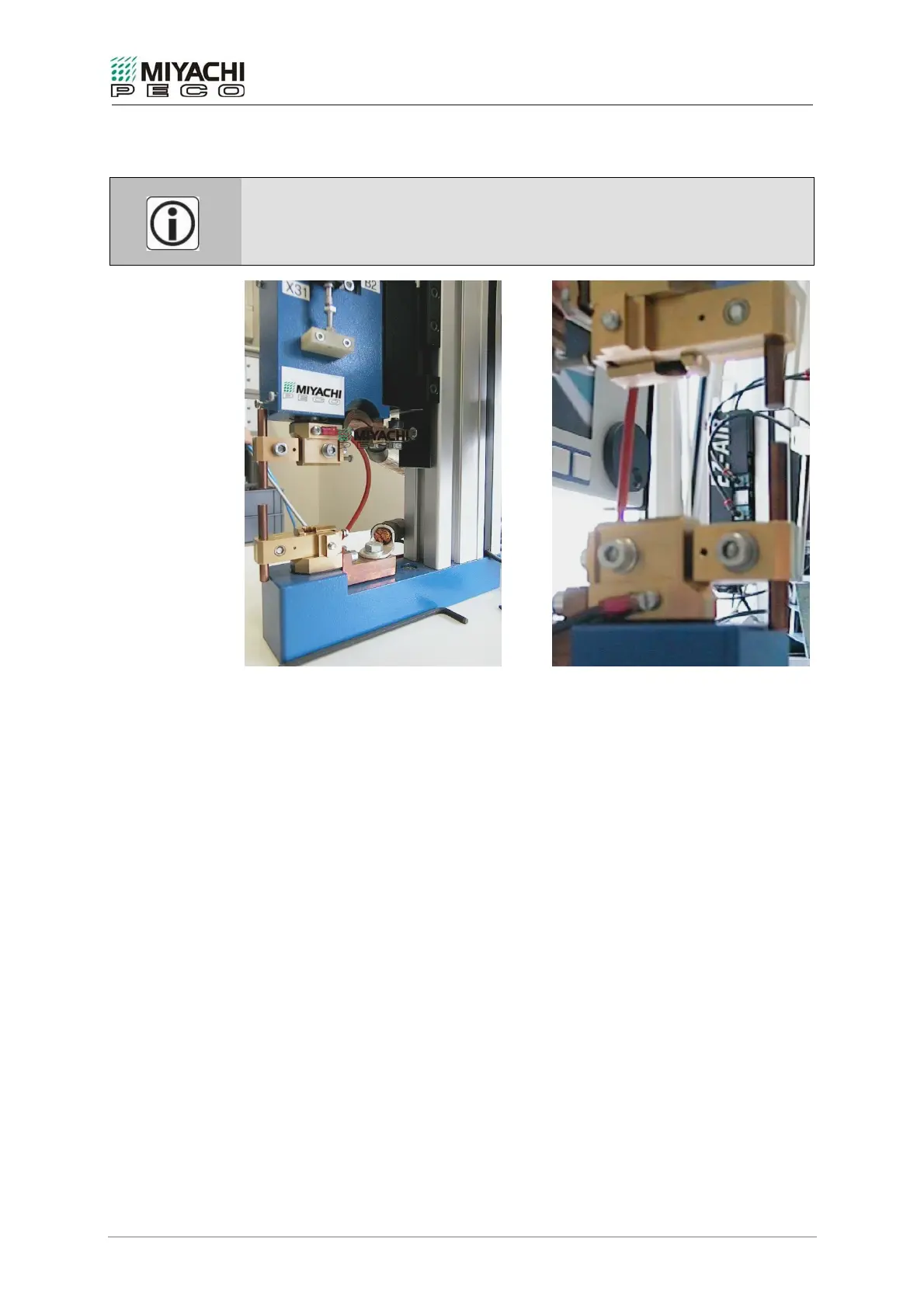

Fig. 3: (+) Connection (example) Fig. 4: (-) Connection (example)
• Connect the red cable (+) terminal to the welding head (+) pole (Fig. 3) at the
position provided for this purpose.
• Connect the black cable (–) terminal to the welding head (-) pole (Fig. 4) at the
position provided for this purpose.
• Insert the 5-pole male connector in socket X13 (Fig. 2/8)
or X14 (Fig. 2/10).
