Operating Instructions MG3 Digital
Technical Description
76609409EN-BA-MG3D-V1_6.docx 6/82 2010-08-02
2 Technical Description
2.1 Design and Mode of Action

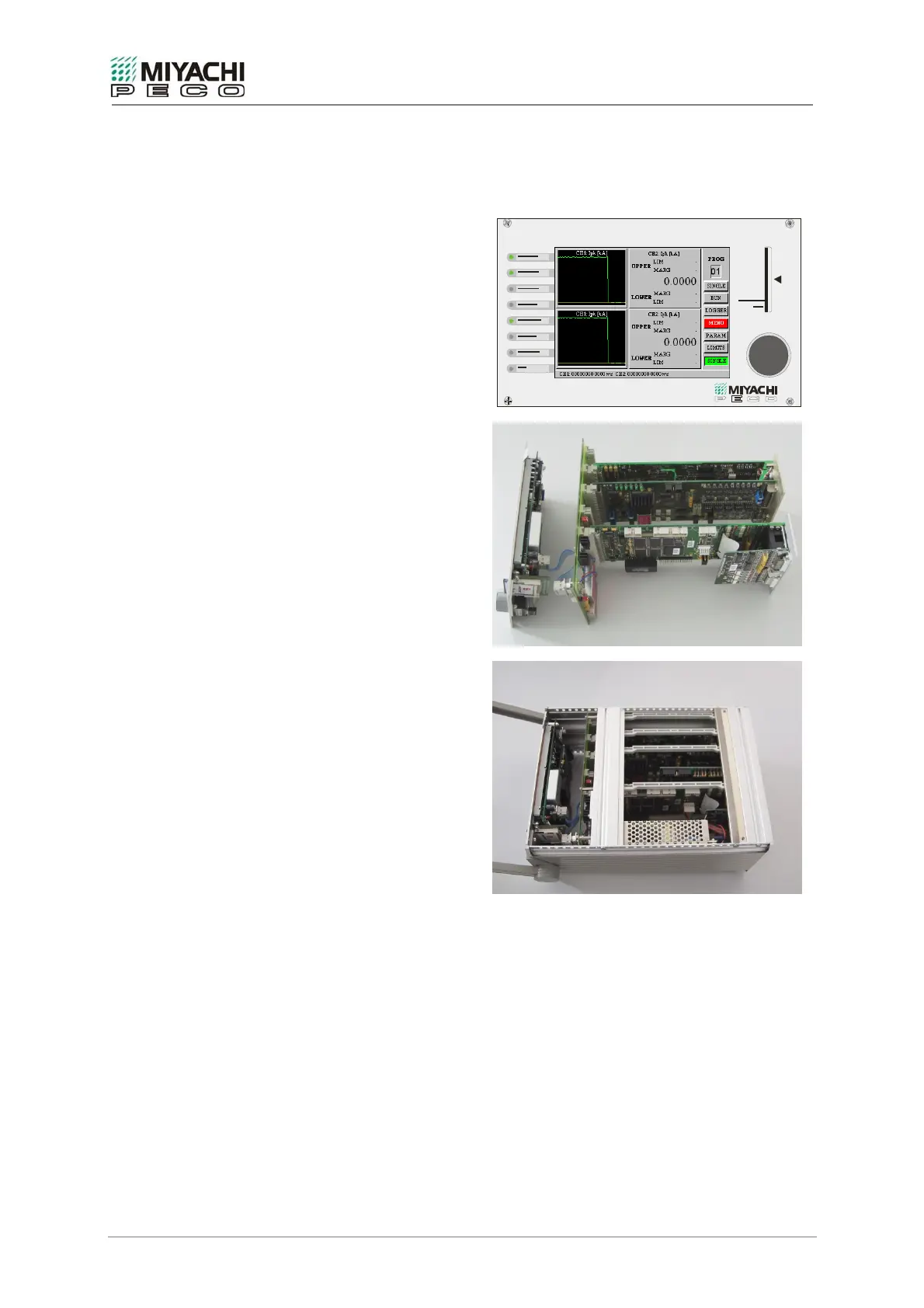

Measuring instrument MG3 comprises:
Operator and
display module (Display)
PCB holder and
housing with built-in power
supply
The housing dimension is 1/2 x 19 in. The MG3 can also be supplied in a 19 in. housing
then offering space for an additional control unit.
Data transfer between display unit and PCB holder is made through a CAN interface.
In its standard version, measuring instrument MG3 Digital is equipped
with a 2-channel current-measuring and voltage-measuring card with appropriate internal
periphery in a portable housing.
A combined path-, force-, and temperature-measuring card can supplement the standard
version. Please contact our sales department for further details.
After applying mains, the measuring instrument MG3 Digital detects existing plug-in cards
by plug & plays and configures itself automatically during the boot process.
Individual operator configurations remain stored even when the instrument has been
switched off.
