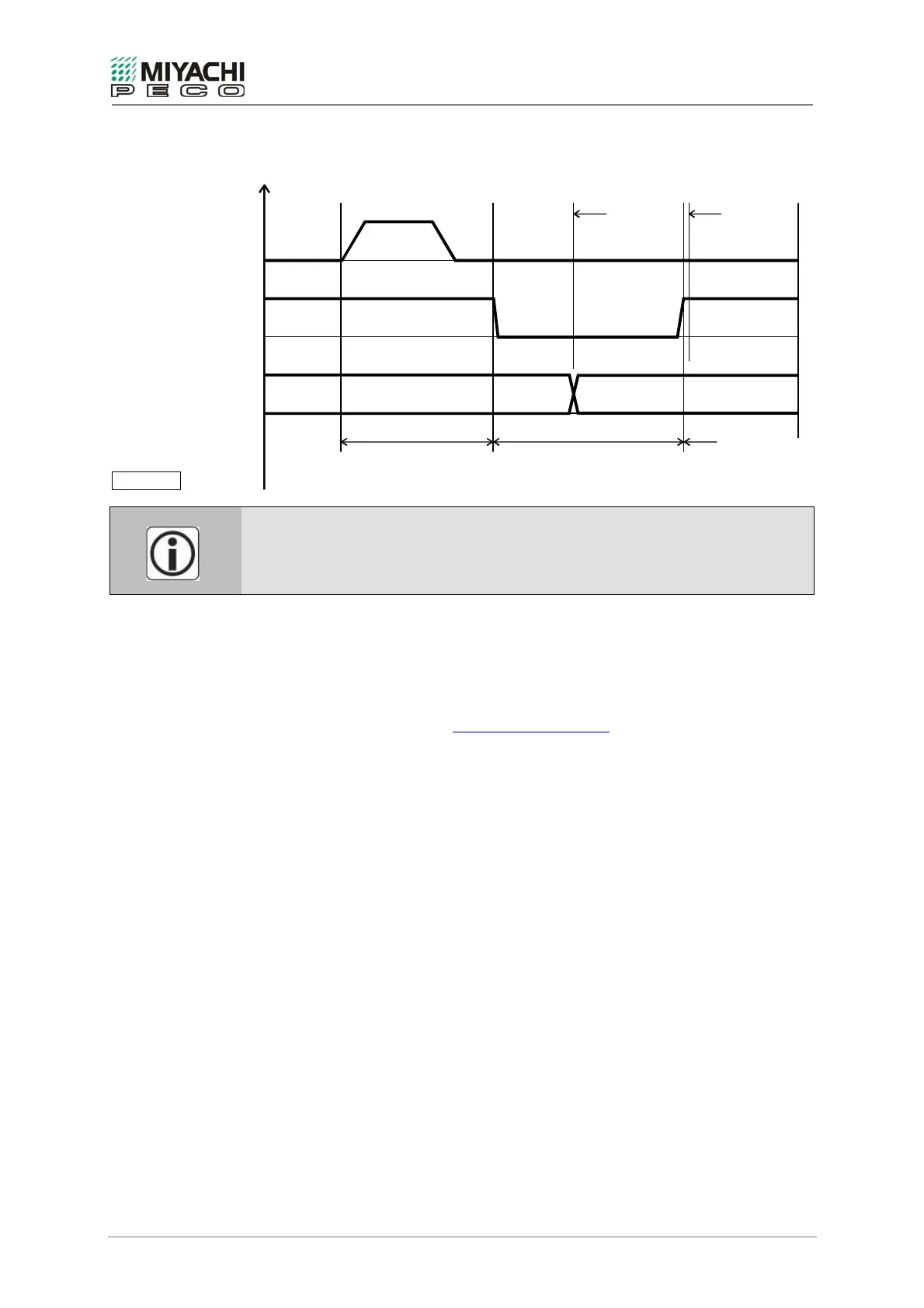

6.8 Flow Chart Measuring and External Selection
Dia7-MG3
high
high
high
low
low
low
external
change of program
program
takeover
Redy Output
Current Signal
External
Program number
old external program number new external program number
measuring delay
Ready
for new measuringno measuring possible!
adjusted measuring time
Change of program best during measuring interval. Change can be made after current
initiation earliest.
6.9 Connection to field bus system
The MG3 can communicate with a control or master computer via CAN-Bus. The CANopen
log is utilized for this purpose. The MG3 acts as a CANopen slave. Detailed instructions
can be found on our homepage
www.miyachieurope.com
under
"Supplement to MG3 Digital operating instructions"
The associated Electronic Data Sheet (EDS) can also be downloaded here.
