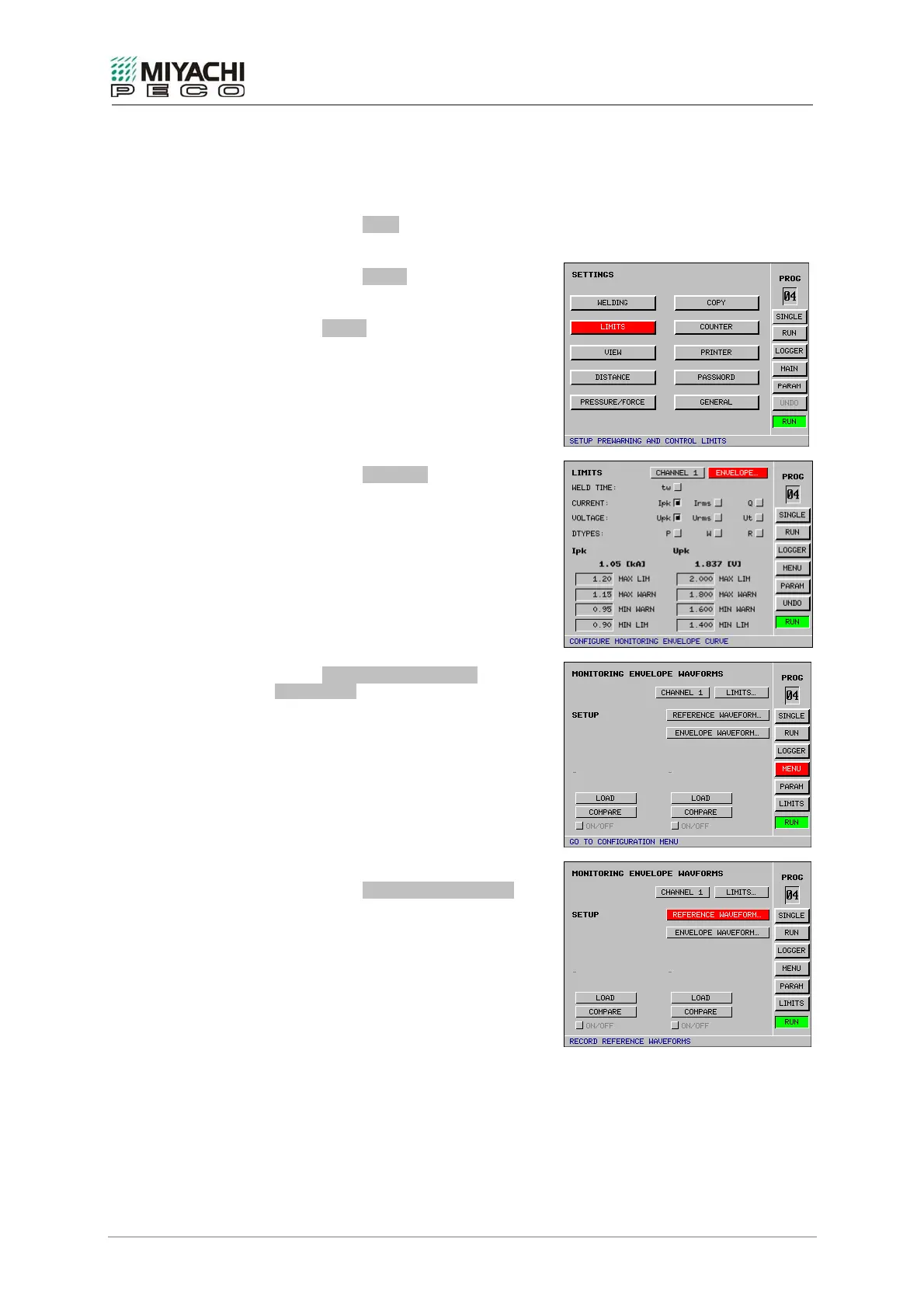

5.9 Generating Reference Waveforms and Envelope Waveforms
A reference waveform is the mean waveform derived from n trial welding operations.
Preparations
• Select button MENU with the
knob/pushbutton combination and depress
button.
• Select button LIMITS with the
knob/pushbutton combination and depress
button.
• Screen LIMITS opens.
• Select button ENVELOPE with the
knob/pushbutton combination and depress
button.
• Screen MONITORING ENVELOPE
WAVEFORMS opens, and now you can:
• generate a reference waveform and an
envelope waveform by yourself, or
• load an envelope waveform.
Generating a reference waveform
• Select button REFERENCE WAVEFORM with
the knob/pushbutton combination and
depress button.
