Operating Instructions MG3 Digital

Operation

76609409EN-BA-MG3D-V1_6.docx 23/82 2010-08-02

4 Operation

4.1 Measuring Instrument MG3D – What is What?

MG3 Digital - Process Sentry

CF I / II

REJECT

WARN

FAULT

TRIG 2

TRIG 1

READY

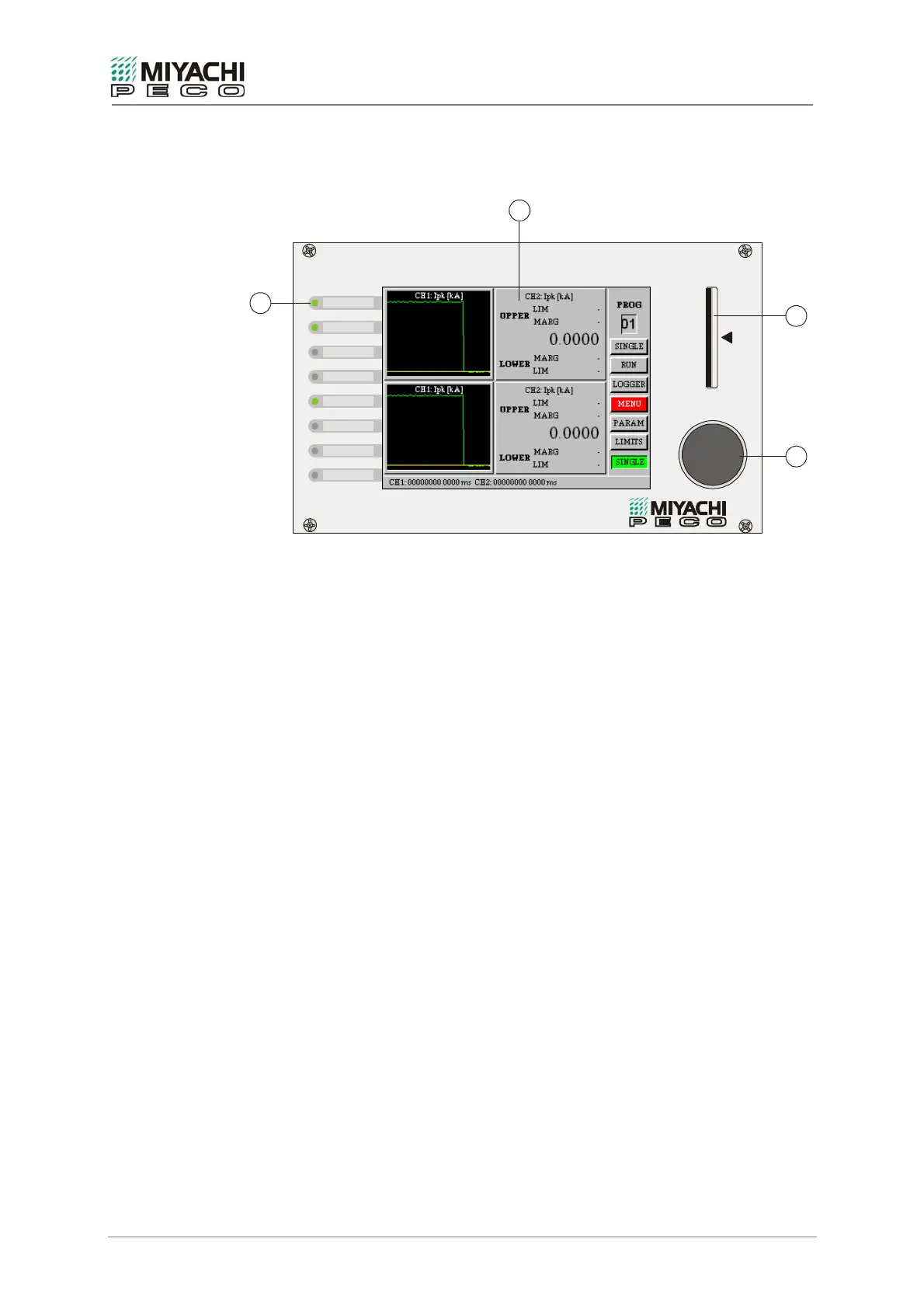

Fig. 10: Control panel MG3 Digital

1. LED status displays

2. Screen (display)

3. Board slot for the CompactFlash

(CF) card(s) type I or II, or for a

MicroDrive (MD)

4. Knob/pushbutton combination

4.1.1 LED Status Displays

LED Status Displays signalize:

• Measuring instrument MG3 Digital ready for measurement (READY)

• Measurement activity on channel 1 or 2 (TRIG1, TRIG2)

• Measuring instrument MG3 Digital overflow metering range (FAULT)

• Measurement within set limit values (ACCEPT)

• Measurement outside set warning limit(s) (WARN)

• Measurement outside set limits (REJECT)

• Compact flash card missing (CF flashes) or access to compact flash card (CF lights)
