Operating Instructions MG3 Digital

Integration in Automated Installations

76609409EN-BA-MG3D-V1_6.docx 73/82 2010-08-02

6.7 Flow Chart Part Detection and Current Measuring Parallel

The active measurement waits for the subsequent current of the next channel if the part

detection signals are active and the current for the primary channel has ended (or the

part detection signals are interrupted).

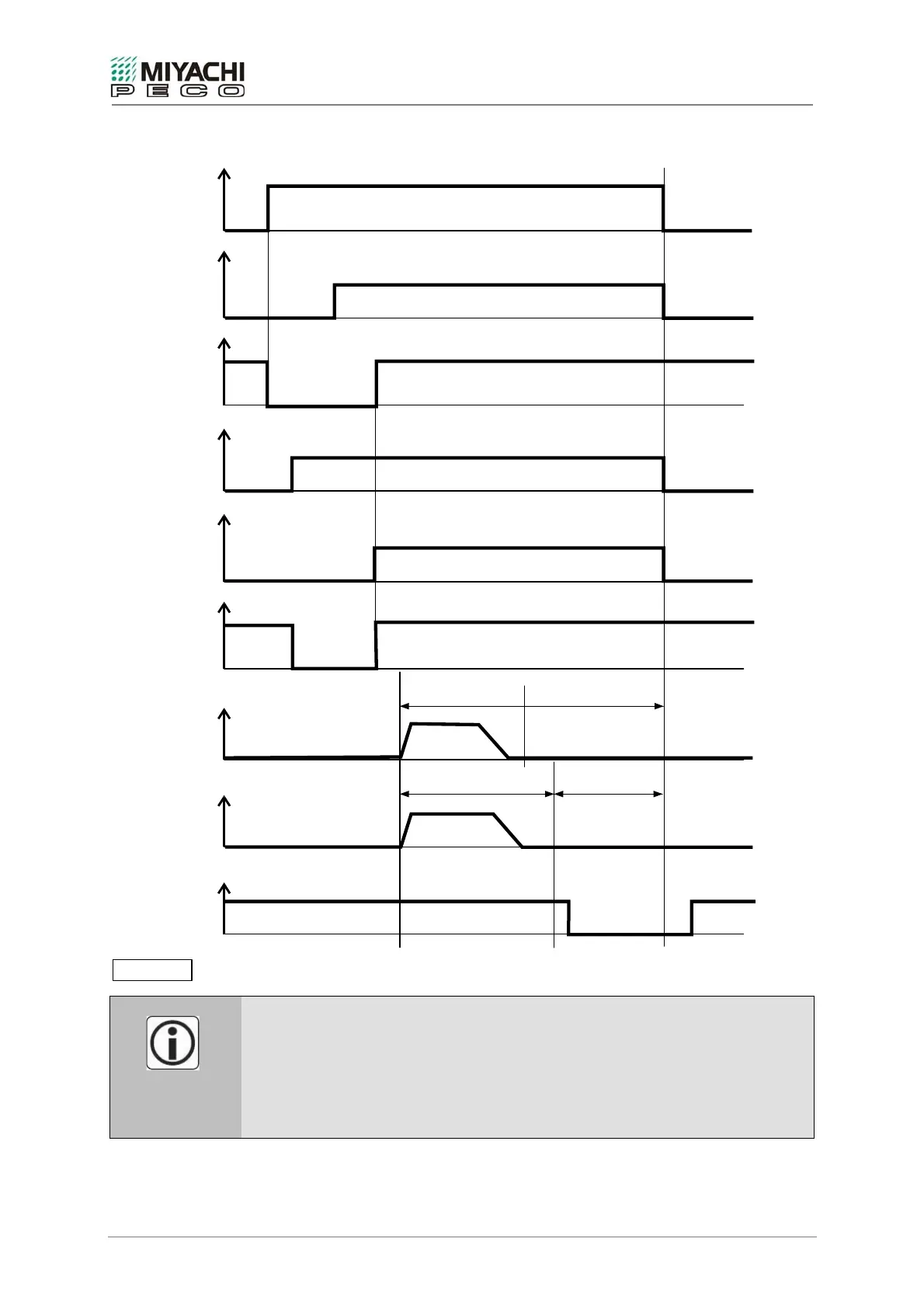

Upper example:

• Channel 1 commences

• Channel 1 is finished and waits on channel 2 because the part detection signal for

channel 2 is still active.

• The channel sequence is irrelevant during this.

Dia7-MG3

New

sequence

Current 2

Current 1

Part evaluation 1

Part

available1

Start part 1

Part evaluation 2

Part

available 2

Start part 2

setted

measuring time 1

hold time

control 1

setted

measuring time 2

hold time

control 2
