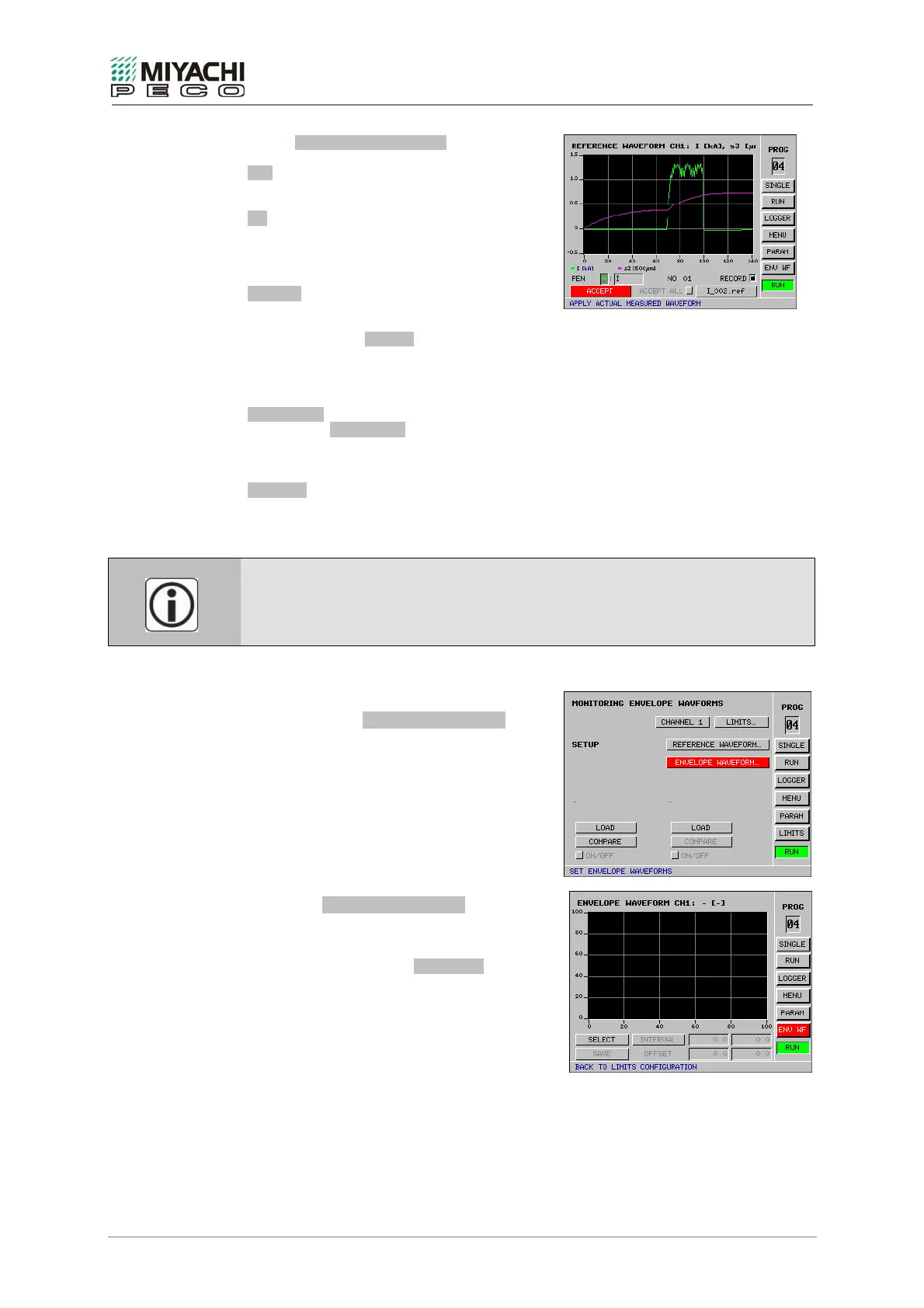

Screen REFERENCE WAVEFORM opens, and now
you can generate a reference waveform.
PEN
Assigns a color to a quantity.
NO
States the number of measurements (1…99)
out of which the arithmetic mean shall be
derived.
RECORD
As soon as a measurement has been carried
out, it can be used for taking of the mean by
depressing button ACCEPT. Now value NO is
decreased by 1 automatically. Repeat this
process until all measurements were
performed.
ACCEPT ALL
Enabling the ACCEPT ALL button draws on
every triggered waveform to form the mean
value until the value NO is zero.
I_001.ref
File designation for the reference waveform
generated. Reference waveforms have the file
extension *.REF.
The reference waveform is automatically stored on the compact flash card when all
measurements were performed.
An envelope waveform is formed from a reference waveform and is used for the
additional monitoring of a weld variable.
Generating an envelope waveform
• Select button ENVELOPE WAVEFORM with
the knob/pushbutton combination and
depress button.
• Screen ENVELOPE WAVEFORM opens.
A reference waveform previously generated
is shown in the dialogue field. You can then
continue directly with INTERVALL.
