6.0 MAST MODE OF OPERATION
6.1 MAST WORKING SCREEN

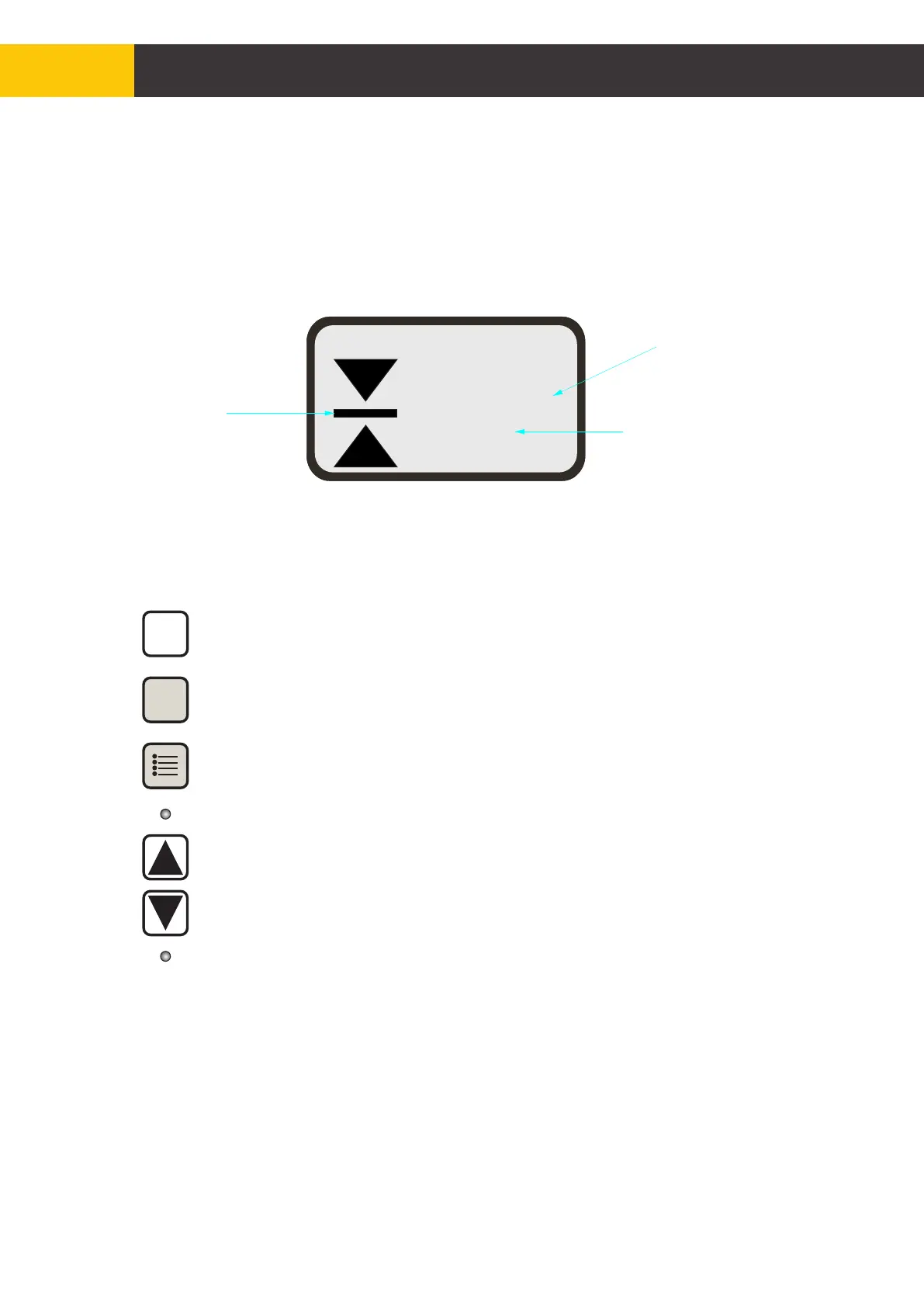

If the mast is connected, the mast working screen is displayed as shown. The image below
shows the current position of the mast in mm.
6.2 MAST FUNCTION KEYS
- Open the reference screen.
ZERO
- Set current mast position to zero.
- Press to invoke the mast reference settings.
- Move the mast up or down manually.
Current mast position.
Mast measurement
Dead Band
+0110
MAST
[mm]
MAN
DOWN
UP
MAST
MAST
REF
