1 PRODUCT OVERVIEW
The CB.D2.CAN is a control panel for single machine control application. The CB.D2.CAN
has a single control for valve actuation and dual control for auxiliary valves. The system
provides the user with the flexibility to independently use single or multiple valve control.
Information provided by the sensor is intelligently processed and applied to the valve control.
System control status and sensor readings are shown in bigger fonts for easy viewing.
A clearly structured configuration menu enables the operator to set all necessary settings from
accuracy selection for control to the selection of different valve types to be used.
In addition, a three-coloured 5 channel LED clusters of the unit provides an easily visible
indication of the direction the hydraulic valves should be actuated to bring the blade to the set
position.
The hydraulic valves can be actuated either automatically or manually from the panel using
keys or a joystick. The CB.D2 can drive ON/OFF hydraulic valves along with PV and PI
without the need of any external accessory.
© Copyright MOBA Mobile Automation Australia Pty Ltd
Overview
7

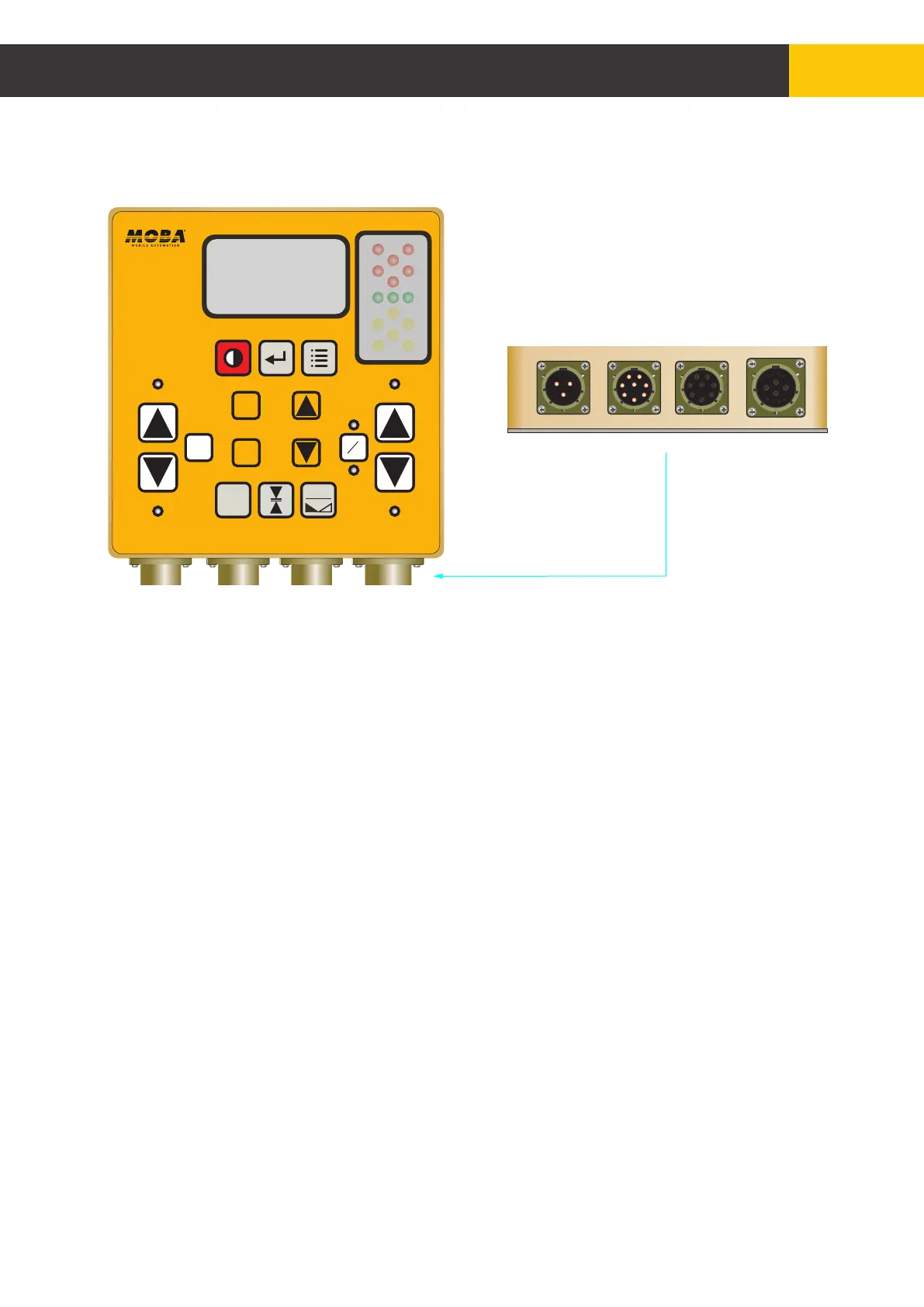

Figure 1.1
HYDRAULIC/AUX
JOYSTICK(S)SENSOR(S)
ZERO
UP
DOWNDOWN
HYDMAST
UP
AUX
FUNC
F2
F1
12-24 V DC
MAST
REF
A
M
REF
+
-
