37MCP15-500.7

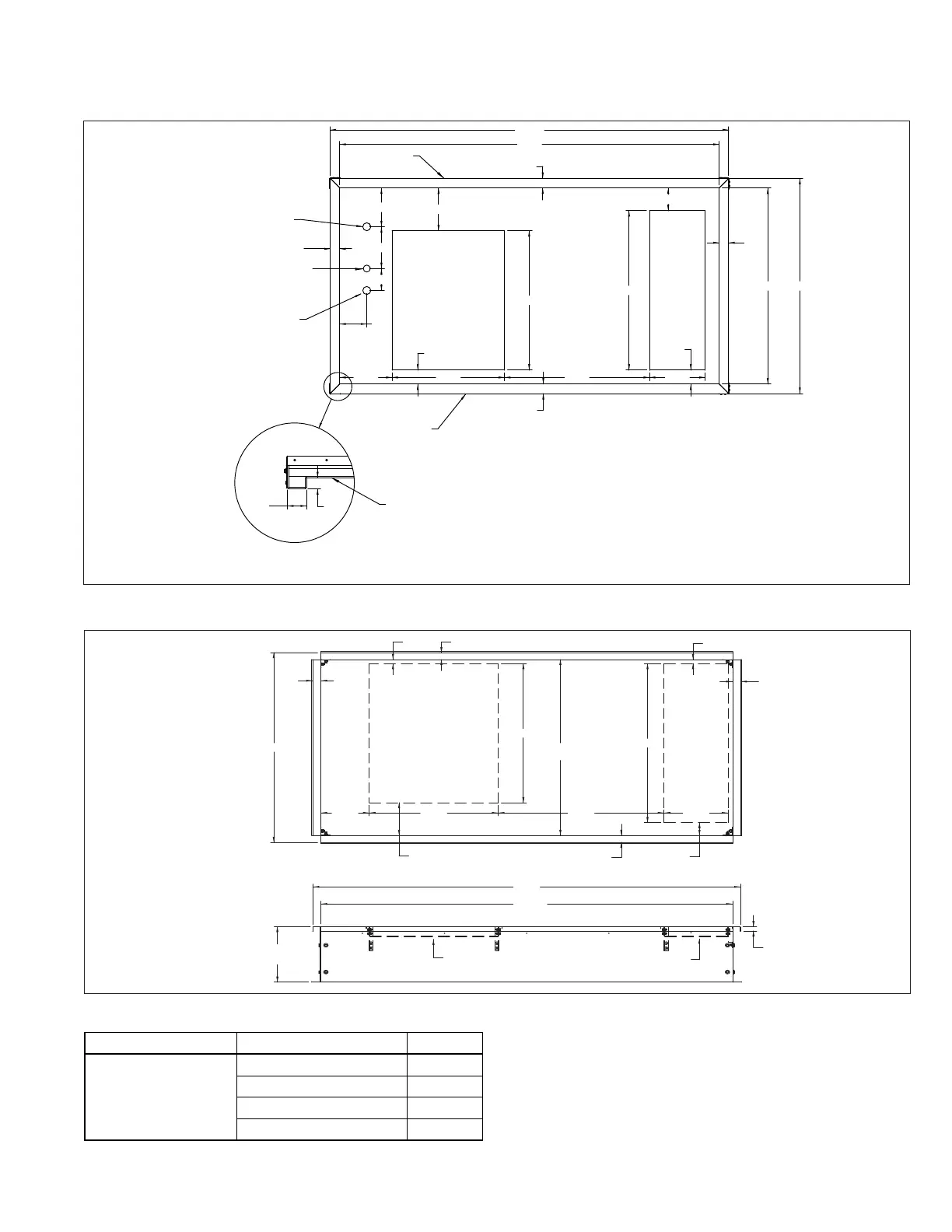

Figure 37.1 - Unit Base Dimensions (inches)
DIMENSIONS - B-CABINET UNIT BASE/ROOF CURB (NO ENERGY RECOVERY)
BASE ASSEMBLY AS
VIEWED FROM BOTTOM
RETURN/
EXHAUST
AIR
OPENING
(if applicable)
SUPPLY AIR
OPENING
INSIDE BASE ASSEMBLY DETAIL
VIEW AS VIEWED FROM SIDE
LANDING AREA
FOR ROOF CURB
2.00" DIA. ELECTRICAL
POWER PIPING HOLES
1.75" DIA.
FURNACE CONDENSATE
DRAIN LINE HOLE
(CONDENSING FURNACES ONLY)
UNIT ACCESS
SIDE
CONDENSING
SECTION SIDE
2.00" DIA. GAS FURNACE
PIPING HOLE
(IF EQUIPPED)
1.37
35.00
49.22
95.22
40.00
28.25 36.36 14.0013.11
10.73
5.72
6.78
9.76
10.50
5.50
100.00
54.00
3.50
3.50
2.39
2.39
2.39
2.39
2.39
SUPPLY AIR
OPENING
LOCATION
RETURN AIR
OPENING
LOCATION
RETURN AIR DUCT
CONNECTOR ACCESSORY
(OPTIONAL)
SUPPLY AIR DUCT
CONNECTOR ACCESSORY
(OPTIONAL)
10.62 28.25 36.36 14.00
35.00
44.25
INSIDE
1.751.03
1.03
1.75
1.75
1.75
8.23
3.22
47.75
93.75
90.25
INSIDE
1.12
14.0 OR 24.0
SEE SCHEDULE
40.00
Figure 37.2 - Roof Curb Dimensions (inches)
Table 37.1 - Roof Curb Weight (approx) - lbs.
Section Description Weight
Roof Curb
14” - Insulated 174
14” - Uninsulated 179
24” - Insulated 268
24” - Uninsulated 273
