Modine Manufacturing MPR - B-Cabinet Size Unit with Energy Recovery

38 MCP15-500.7

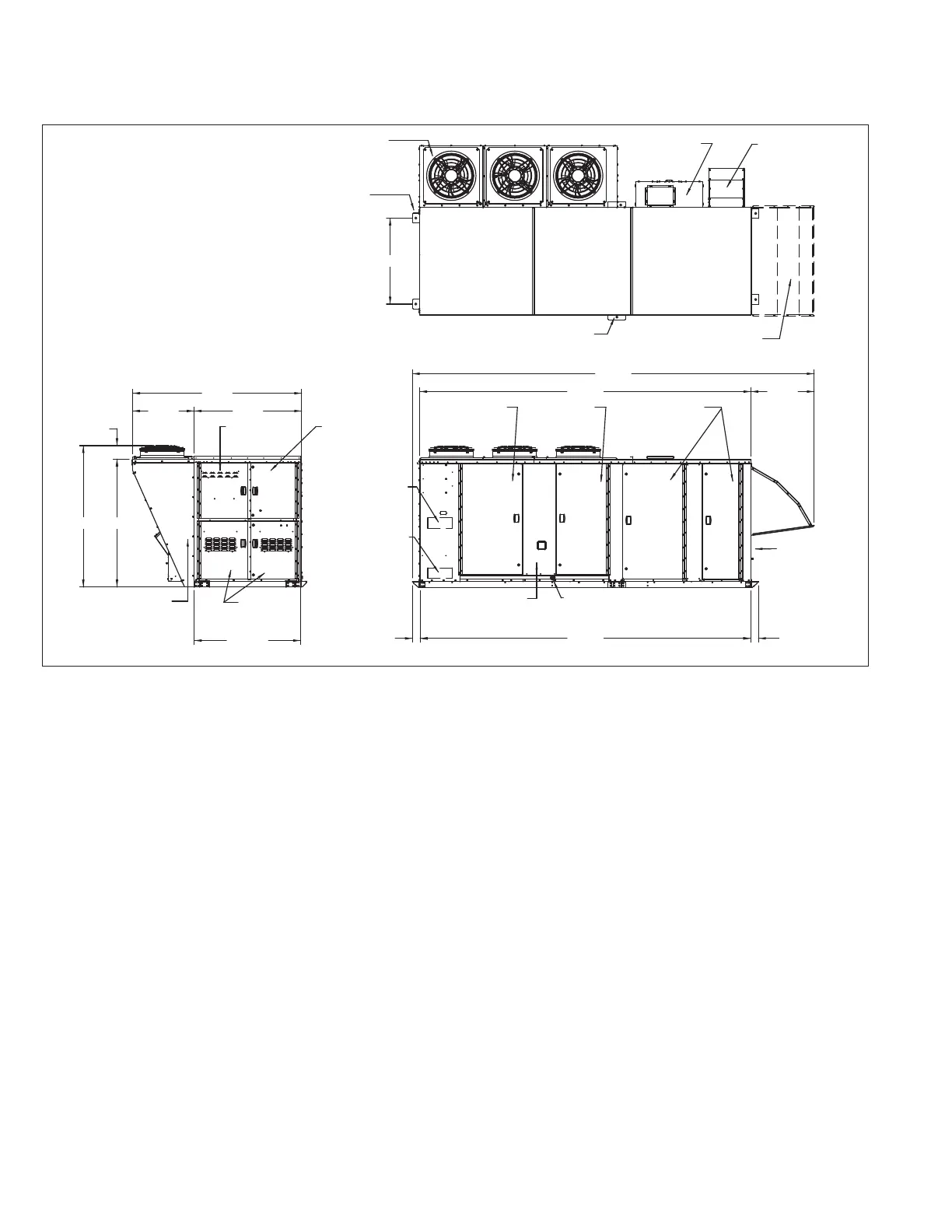

Figure 38.1 - Unit Dimensions (inches)
DIMENSIONS - B-CABINET SIZE UNIT (WITH ENERGY RECOVERY)
CONDENSING
SECTION
ACCESS PANEL
(ALSO OTHER SIDE)
EVAPORATOR &
HOT GAS REHEAT COIL
SERVICE ACCESS PANEL
SUPPLY AIR BLOWER
& EVAPORATOR/
HOT GAS REHEAT COIL
ACCESS DOOR
FILTER & DAMPERS
ACCESS DOOR
1" NPT EVAP
COIL DRAIN
PAN PIPE
CONNECTION
COMPRESSOR
COMPARTMENT
ACCESS DOOR
APPROXIMATE AREA
FOR SIDE ELECTRICAL
SERVICE ENTRANCE
(refer to Warning label
on unit for exact location)
CONDENSING SECTION
FAN QUANTITY:
(2) FOR 7 AND 10 TON UNITS
(3) FOR 13, 15, AND 20 TON UNITS
ACCESSORY RAINHOOD
AND BIRDSCREEN
(FIELD INSTALLED ACCESSORY)
GAS/ELECTRIC
HEAT (OPTION)
COMPARTMENT
ACCESS DOORS
CONTROLS
COMPARTMENT
ACCESS DOOR
APPROXIMATE AREA
FOR SIDE GAS
SERVICE ENTRANCE
(refer to Warning label
on unit for exact location)
(4) 1" LIFTING ANGLES
(EACH CORNER)
(2) 1" LIFTING ANGLES
(EACH SIDE)
ENERGY RECOVERY
WHEEL & CONTROLS
COMPARTMENT
ACCESS DOORS
ENERGY RECOVERY
WHEEL ECONOMIZER
BYPASS DAMPER
ENERGY RECOVERY
EXHAUST AIR
RAINHOOD
EXHAUST FAN
BELT DRIVE &
AUTO BELT
TENSIONER
ACCESS PANEL
4.00
168.00
4.00
168.38 32.16
204.30
64.96
6.93
71.89
54.00
(BASE)
31.30 54.63
85.93
43.72
