E35 Turbofan Ovens
D. TOP OVEN
Remove Panels
1) Remove side panels from oven, each side
panel is held on by 4 screws.
2) Remove rear RH side corner panel (power
and water entry points), secured with 3
screws at front edge of panel (Figure A.3).
3) Remove the 2 front bottom side panel support
brackets, 2 screws each.
E. STACKING
Stack
1) Remove legs / feet from top unit and place
onto bottom unit (on stacking assembly)
secure using 2 screws (K) in each corner of
the unit (at front and back down from the
sides).
2) Remove the RH double stack side (I).
3) Remove vent bottom plate, 4 screws from
underneath.
4) Secure vent extension (N) with 3 screws
(screw closest to oven is inaccessible), using
sealant provided (Q) to ensure sealed
connection. See Figure A.7.
5) Refit the RH double stack side (I).
6) Tighten all screws on the stacking assembly.
7) Place connection sleeve (O) over join in vent
using plenty of sealant (Q) between vent and
sleeve, and secure using hose clamps (P).
See Figure A.8.
N
I
L
G
H
K
K
J
M

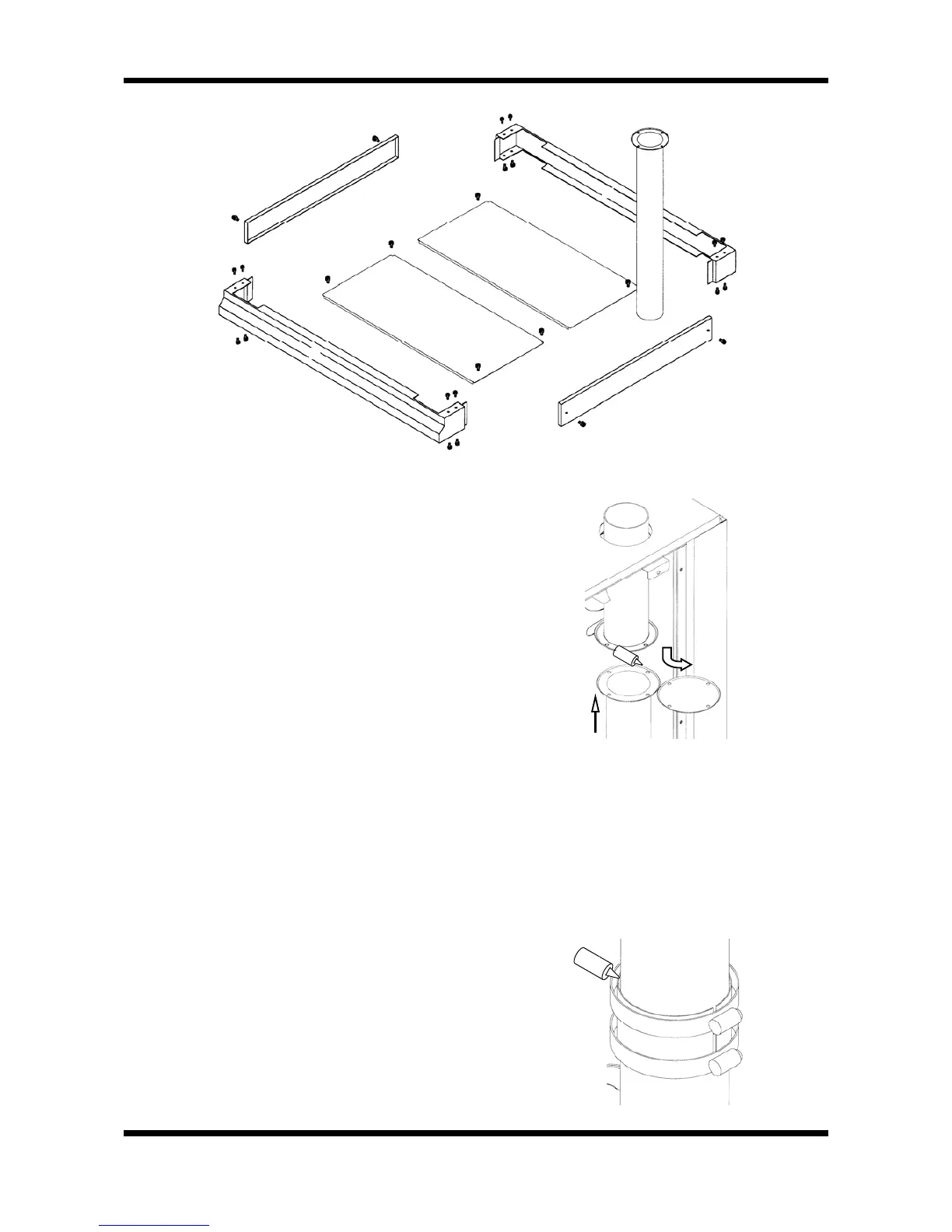

Figure A.6
Figure A.8
Figure A.7
Re-assembly
8) Replace side cover support brackets (Figure
A.4) at top front of bottom unit and bottom
front of top unit, using original screws.
9) Replace rear RH panel (Figure A.3) on each
unit using original screws.
10) Replace side panels, using original screws.
N
P
O
Q
