Operation
EPM2000/EPM2000e Reference Guide
27

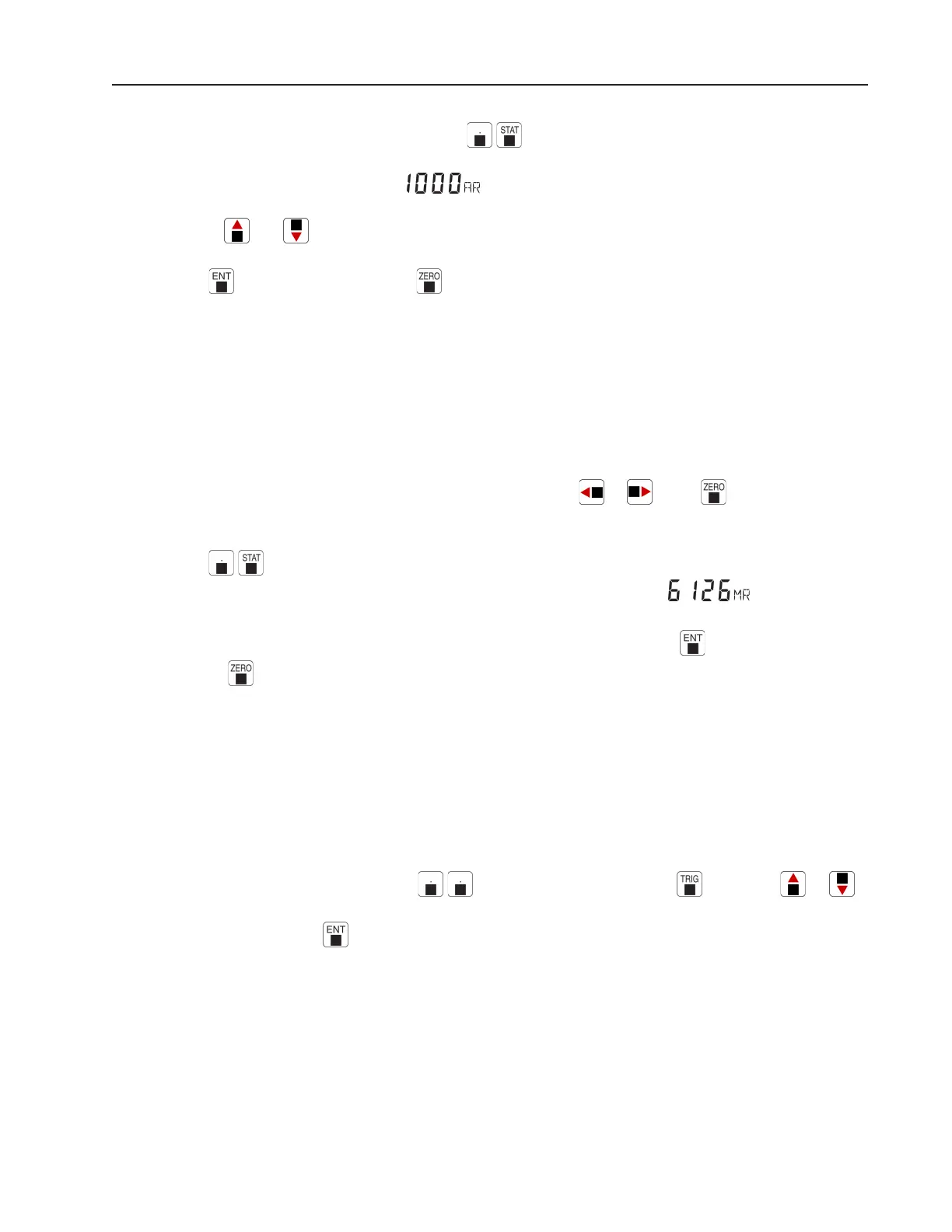

To change a channel’s Restart Mode, press . The LCD will display the Statistics Batch Size
and the Restart Mode. For example, if the channel was set to a 1000-pulse Batch Size and Automatic
Restart, then the LCD would read
.
Use the
and keys to toggle the restart mode from Automatic to Manual.
Press
to accept the selection or to cancel it.
STATISTICS BATCH SIZE
Program each channel of the EPM2000 to collect a sample size from 2 to 9999 readings. Each
channel can also be programmed with a batch size of 0.
When the batch size is 0, the channel enters a “running statistics” mode. The EPM2000 constantly
tracks the minimum and maximum pulse energy read by that channel. Toggle between displaying the
current maximum and current minimum values by pressing
or . Press to clear the two
values and begin collecting new statistical data.
Press
to change the Batch Size. The LCD will display the statistics batch size and the restart
mode. For example, a batch size of 6126 with manual restart appears as
.
Use the Numeric Entry Keys to change the value of the batch size. Press
to accept the new
value or
to cancel the action.
TRIGGER HOLDOFF
The Trigger Holdoff determines how long the EPM2000 waits after receiving a valid trigger before
resetting the triggering circuit. This avoids false triggers from a noisy pulse tail (See Understanding
the EPM2000 Trigger). The Trigger Holdoff can be set for 0 to 49 ms and the holdoff of each
channel can be set independently.
Set the Trigger Holdoff by pressing
. Press the desired channel’s key. Press or
to increment or decrement through the possible delay values or use the Numeric Entry Keys to enter
a value directly. Press
to complete the action.
