4.2 Solenoid and Inductive Sensor Flash Test
4.21 SOLENOID TEST
This mode is used for checking the operation of the solenoid drives.
The inhibit line must be Low to activate the corresponding solenoid.
Inhibit 1
⇒
Sorter solenoid 1, Bottom flap
Inhibit 2
⇒
Sorter solenoid 2, Top flap
Inhibit 3
⇒
Manifold solenoid
Inhibit 4
⇒
Accept gate solenoid
Inhibit 5 to 8
⇒
Not used
If there is no sorter fitted then inhibits 1 and 2 will be inactive. Likewise, if the active
manifold is not fitted for 8-way sorting, then inhibit 3 will be inactive.
4.22 INDUCTIVE SENSOR FLASH TEST
The SR5 will also show the status of the inductive coils on the accept lines.
An inactive accept line indicates there is a fault.
Accept 1
⇒
Inductive sensor 1 status (Active = OK)
Accept 2
⇒
Inductive sensor 2 status
Accept 3
⇒
Inductive sensor 3 status
Accept 4
⇒
Inductive sensor 4 status
Accept 5
⇒
Inductive sensor 5 status
Accept 6
⇒
On

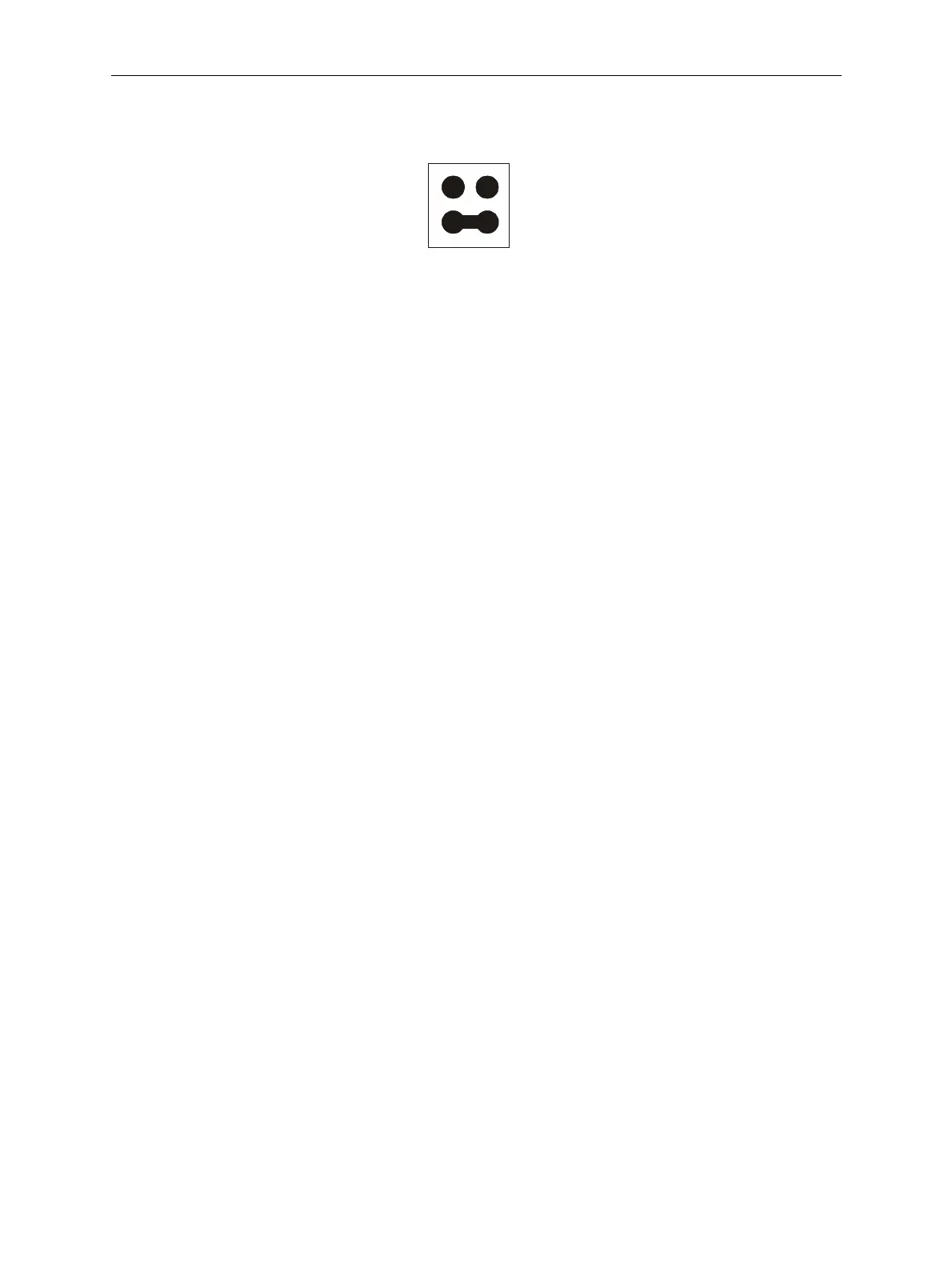

To exit the diagnostic tests, remove the links and press the program button until the LED
turns Green.
0
V
0
V
Jumper
