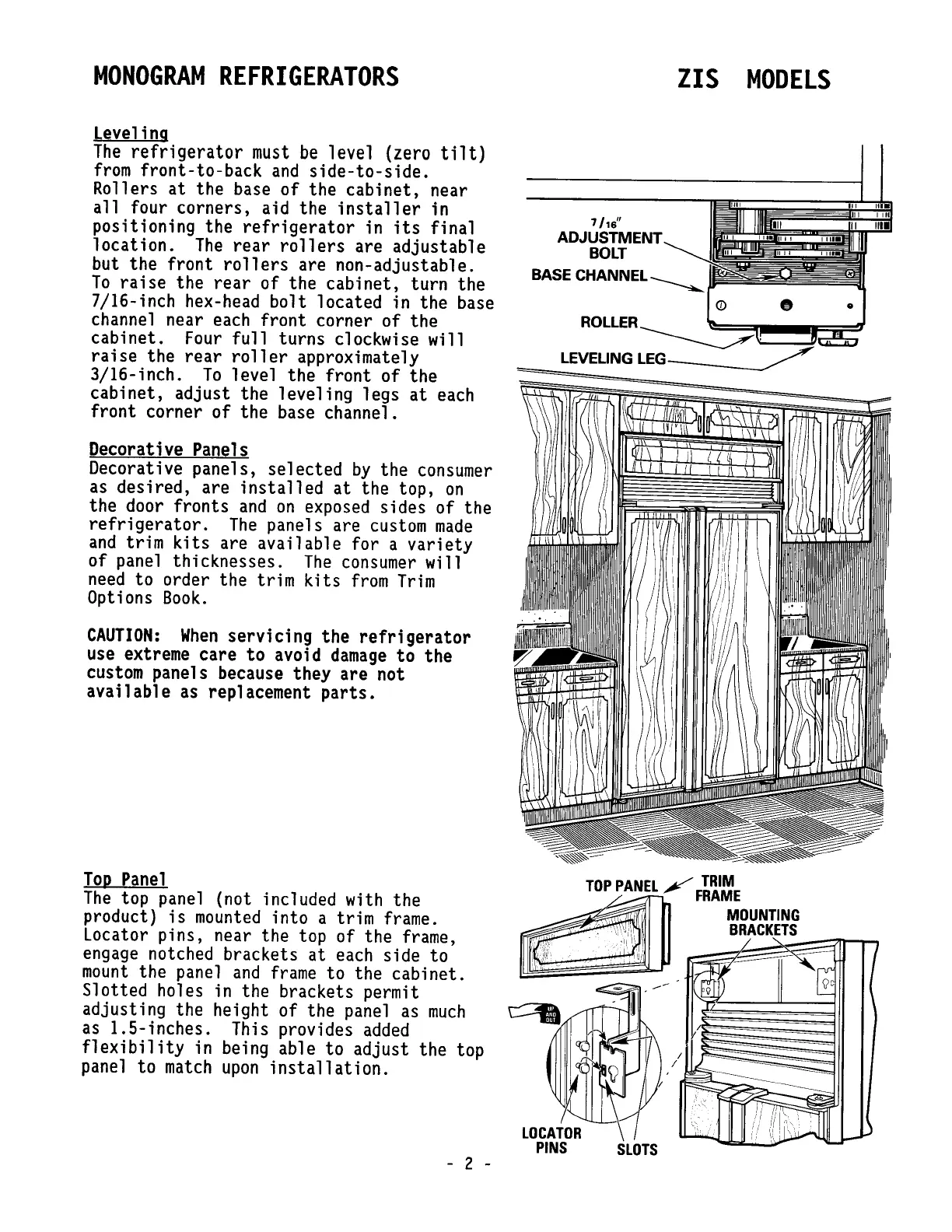

MONOGRAM
REFRIGERATORS
leveling
The
refrigerator
must
be
level (zero
tilt)
from
front-to-back
and
side-to-side.
Rollers at the base of the cabinet, near
all
four corners, aid the
installer
in
positioning the
refrigerator
in
its
final
location.
The
rear
rollers
are adjustable
but the front
rollers
are non-adjustable.
To
raise
the
rear
of the cabinet, turn the
7/l6-inch hex-head bolt located
in
the
base
channel near
each
front corner of the
cabinet.
Four
full turns clockwise will
raise
the rear
roller
approximately
3/l6-inch.
To
level the front of the
cabinet, adjust the leveling legs at
each
front corner of the base channel.
Decorative Panels
Decorative panels, selected
by
the
consumer
as
desired, are
installed
at the top,
on
the door fronts
and
on
exposed
sides of the
refrigerator.
The
panels are
custom
made
and
trim
kits
are available for a variety
of
panel
thicknesses.
The
consumer
will
need
to order the trim
kits
from
Trim
Options
Book.
CAUTION:
When
servicing the
refrigerator
use
extreme care
to
avoid
damage
to
the
custom
panels because they are not
available
as
replacement
parts.
Top
Panel
The
top
panel
(not included with the
product)
is
mounted
into a trim frame.
locator pins, near the top of the frame,
engage
notched brackets at
each
side to
mount
the
panel
and
frame
to the cabinet.
Slotted holes
in
the brackets permit
adjusting the height of the
panel
as
much
as
1.S-inches. This provides
added
flexibility
in
being able to adjust the top
panel
to
match
upon
installation.
