MONOGRAM REFRIGERATORS

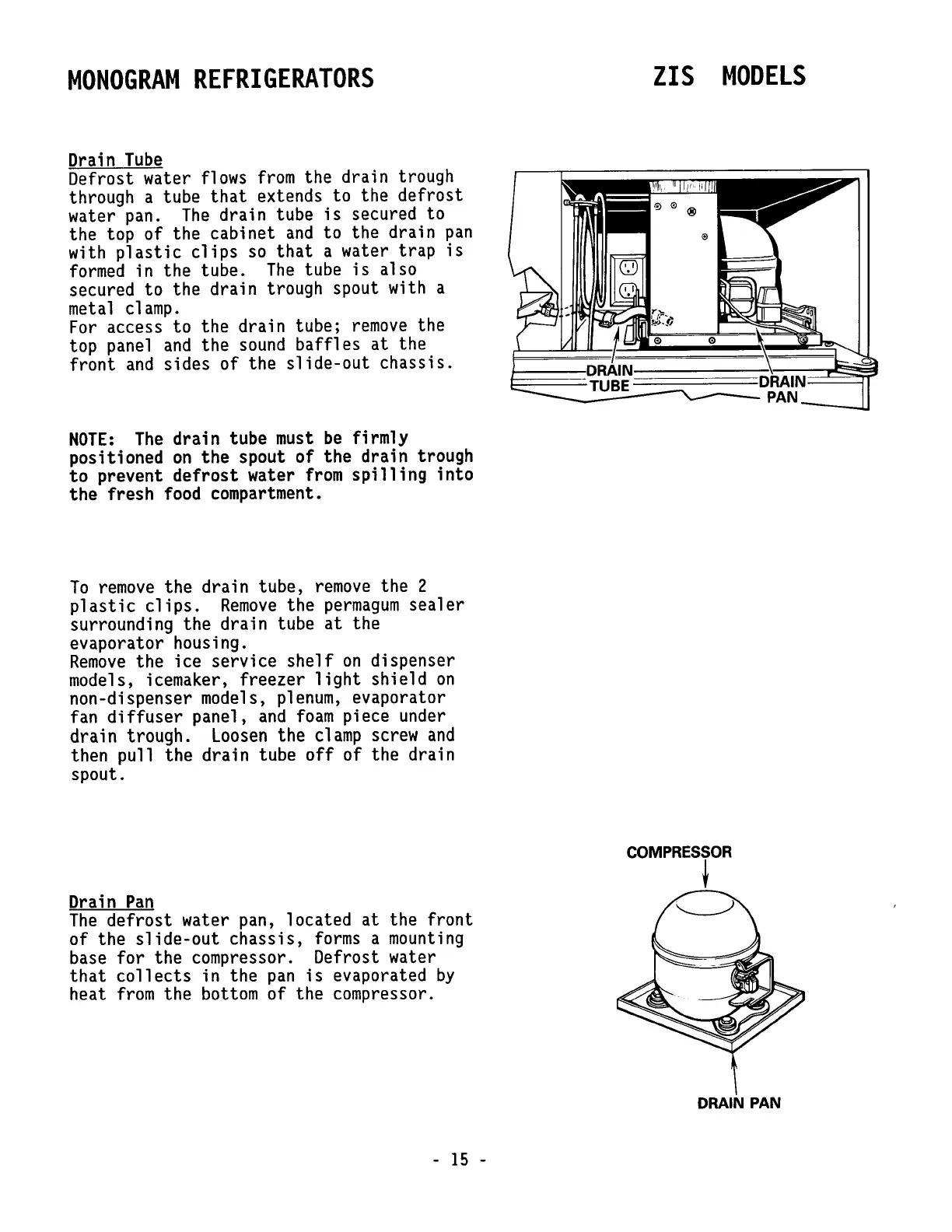

Drain Tube
Defrost water flows from the drain trough
through a tube
that extends to the defrost
water pan. The drain tube is secured to
the top of the cabinet
and to the drain pan
with plastic clips so that a water trap is
formed in the tube. The tube is also
secured
to the drain trough spout with a
metal clamp.
For access to the drain tube; remove the
top panel
and the sound baffles at the
front
and sides of the slide-out chassis.
NOTE: The drain tube must be firmly
positioned
on the spout of the drain trough
to prevent defrost water from spilling into
the fresh
food compartment.
To remove the drain tube, remove the 2
plastic clips. Remove the permagum sealer
surrounding the drain tube at the
evaporator housing.
Remove the ice service shelf on dispenser
models, icemaker, freezer
light shield on
non-dispenser models, plenum, evaporator
fan
diffuser panel, and foam piece under
drain trough.
Loosen the clamp screw and
then pull the drain tube off of the drain
spout.
Drain
Pan
The defrost water pan, located at the front
of the
slide-out chassis, forms a mounting
base for the compressor. Defrost water
that collects in the pan is evaporated by
heat from the bottom of the compressor.
- 15 -
ZIS MODELS
COMPRESSOR
t
DRAIN PAN
