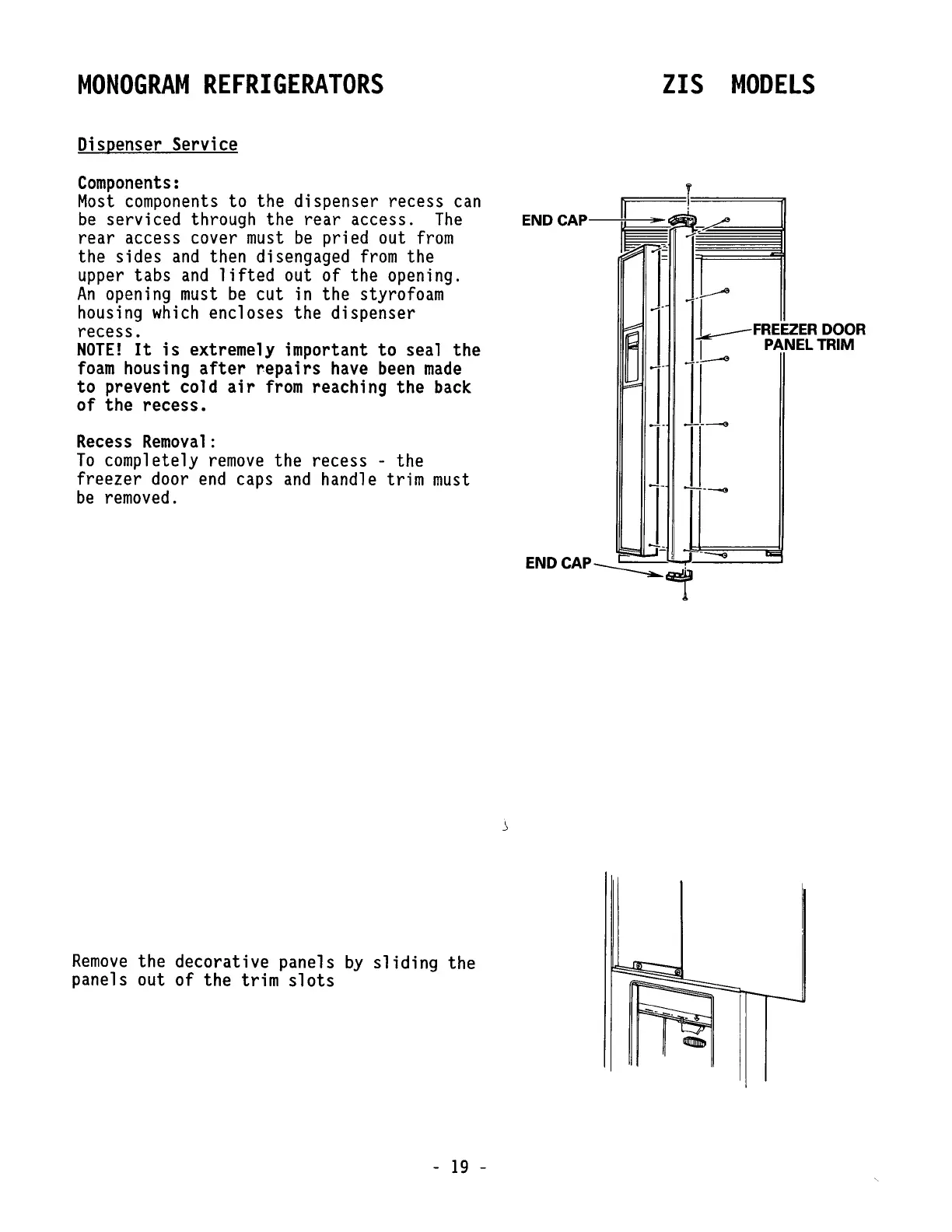

Dispenser Service
Components:
Most components to the dispenser recess can
be serviced through the rear access. The
rear access cover must be pried out from
the sides and then disengaged from the
upper tabs
and lifted out of the opening.
An opening must be cut in the styrofoam
housing
which encloses the dispenser
recess.
NOTE! It is extremely important to seal the
foam housing after repairs have been made
to prevent cold air from reaching the back
of the recess.
Recess
Removal:
To completely remove the recess - the
freezer door end caps and handle trim must
be removed.
Remove the decorative panels by sliding the
panels out
of the trim slots
- 19 -
lIS MODELS
ENDCAP-~iiii~'~
_-FRI:EzE:R DOOR
r"MI,.II:L TRIM
--
