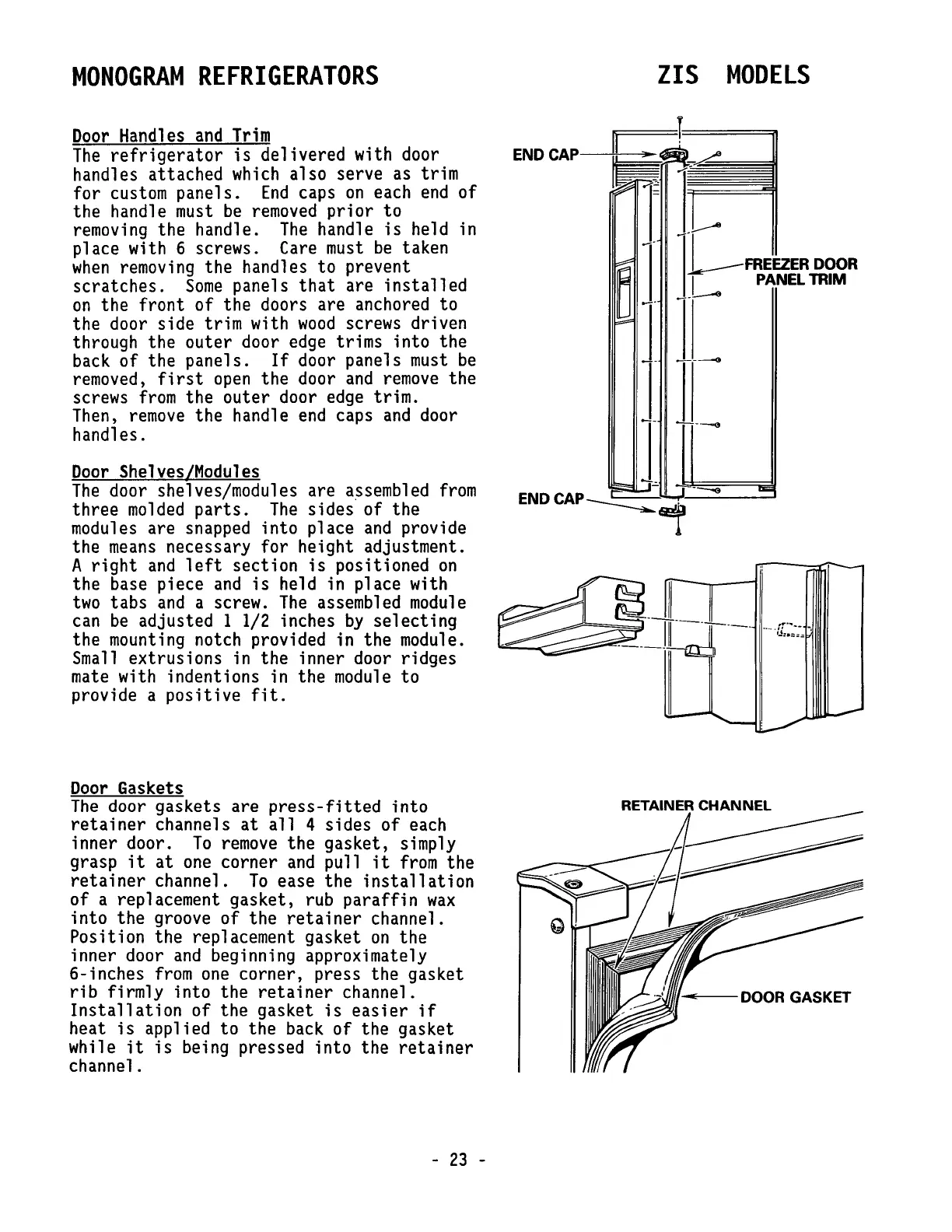

MONOGRAM
REFRIGERATORS
Door
Handles
and
Trim
The
refrigerator
is
delivered with door
handles attached
which
also serve
as
trim
for
custom
panels.
End
caps
on
each
end
of
the handle
must
be
removed
prior
to
removing
the handle.
The
handle
is
held in
place with 6 screws.
Care
must
be
taken
when
removing
the handles
to
prevent
scratches.
Some
panels
that
are
installed
on
the front
of
the doors are anchored to
the door side trim with
wood
screws driven
through the outer door
edge
trims into the
back
of
the panels.
If
door panels
must
be
removed,
first
open
the door
and
remove
the
screws
from
the outer door
edge
trim.
Then,
remove
the handle
end
caps
and
door
handles.
Door
Shelves/Modules
The
door shelves/modules are assembled
from
three
molded
parts.
The
sides' of the
modules
are snapped into place
and
provide
the
means
necessary for height adjustment.
A
right
and
left
section
is
positioned
on
the base piece
and
is
held in place with
two
tabs
and
a screw.
The
assembled
module
can
be
adjusted 1 1/2 inches
by
selecting
the mounting notch provided in the
module.
Small
extrusions in the inner door ridges
mate
with indentions in the
module
to
provide a
positive
fit.
Door
Gaskets
The
door gaskets are
press-fitted
into
retainer
channels
at
all
4 sides of each
inner door.
To
remove
the gasket, simply
grasp
it
at
one
corner
and
pull
it
from
the
retainer
channel.
To
ease the
installation
of a replacement gasket, rub
paraffin
wax
into
the groove of the
retainer
channel.
Position the replacement gasket
on
the
inner door
and
beginning approximately
6-inches
from
one
corner, press the gasket
rib
firmly into the
retainer
channel.
Installation
of the gasket
is
easier
if
heat
is
applied
to
the
back
of
the gasket
while
it
is
being pressed into the
retainer
channel.
-
23
-
END
CAP
lIS
MODELS
F==t===
II
~...4.
~
~~t@-~I
1~11~
JL
k:;=~
~L-FREEZER
DOOR
I
PANEL
TRIM
_-'----"'6
;:;;;;=
---
END
CAP
~
D..:.
,--
--=
-------~
RETAINER
CHANNEL
..,!
IIIIJ'----DOOR
GASKET
