MONOGRAM REFRIGERATORS

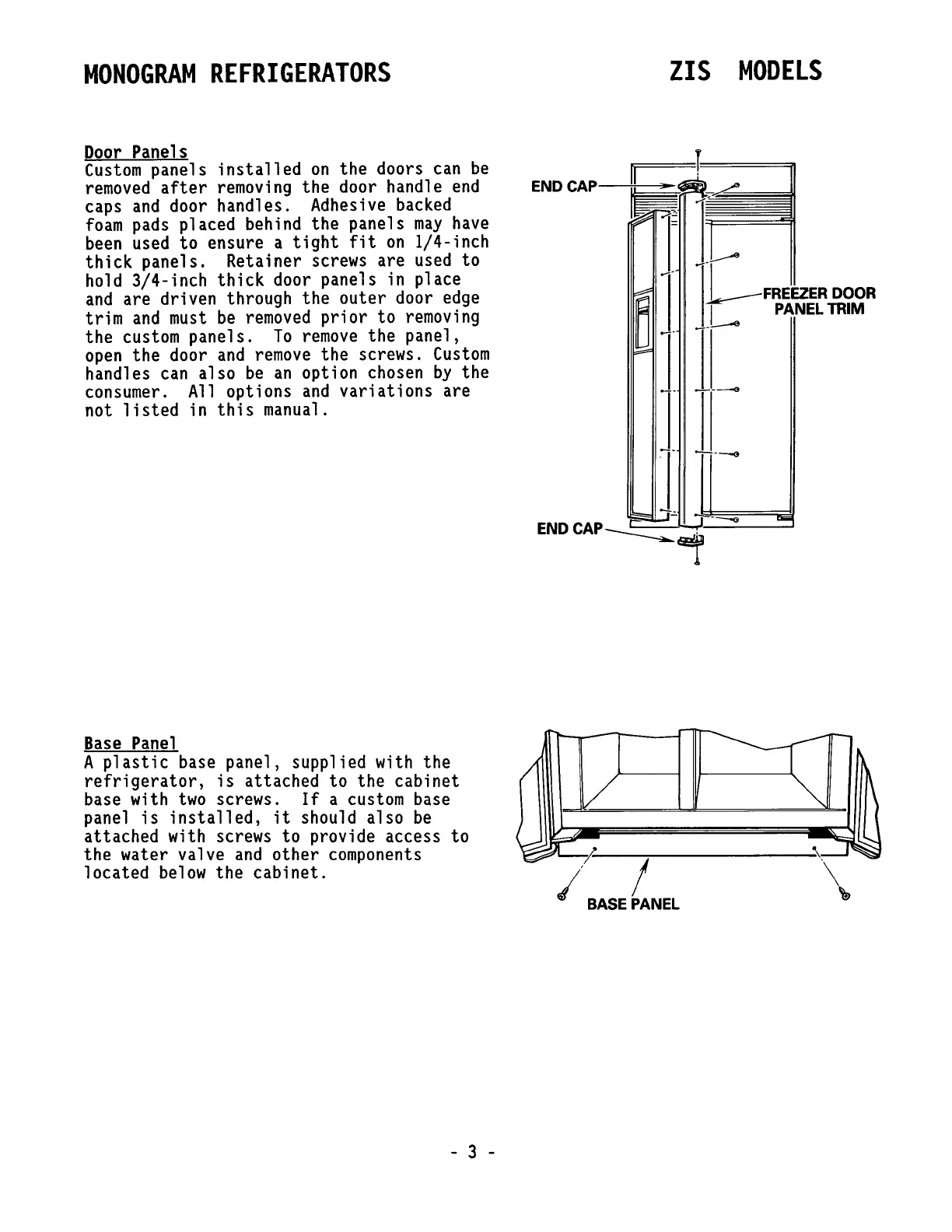

Door Panels
Custom panels installed on the doors can be
removed after removing the door handle end
caps and door handles. Adhesive backed
foam pads placed behind the panels may have
been used to ensure a tight fit on 1/4-inch
thick panels. Retainer screws are used to
hold 3/4-inch
thick door panels in place
and are driven through the outer door edge
trim and must be removed prior to removing
the custom panels. To remove the panel,
open the door and remove the screws. Custom
handles can also be an option chosen by the
consumer.
All options and variations are
not
listed in this manual.
Base Panel
A plastic base panel, supplied with the
refrigerator, is attached to the cabinet
base with
two screws. If a custom base
panel
is installed, it should also be
attached with screws to provide access to
the water valve and other components
located below the cabinet.
- 3 -
ZIS MODELS
r==~
II ~ -='-~
-=?5i!r S
-~
~.-.- -- L-FREEZER DOOR
~ __ __L.. PANEL 11I1M
~
END CAP
-- --~
~D~ ,-_ ~
END CAP ________ ~
l !
I BASE PANEL
