MONOGRAM REFRIGERATORS

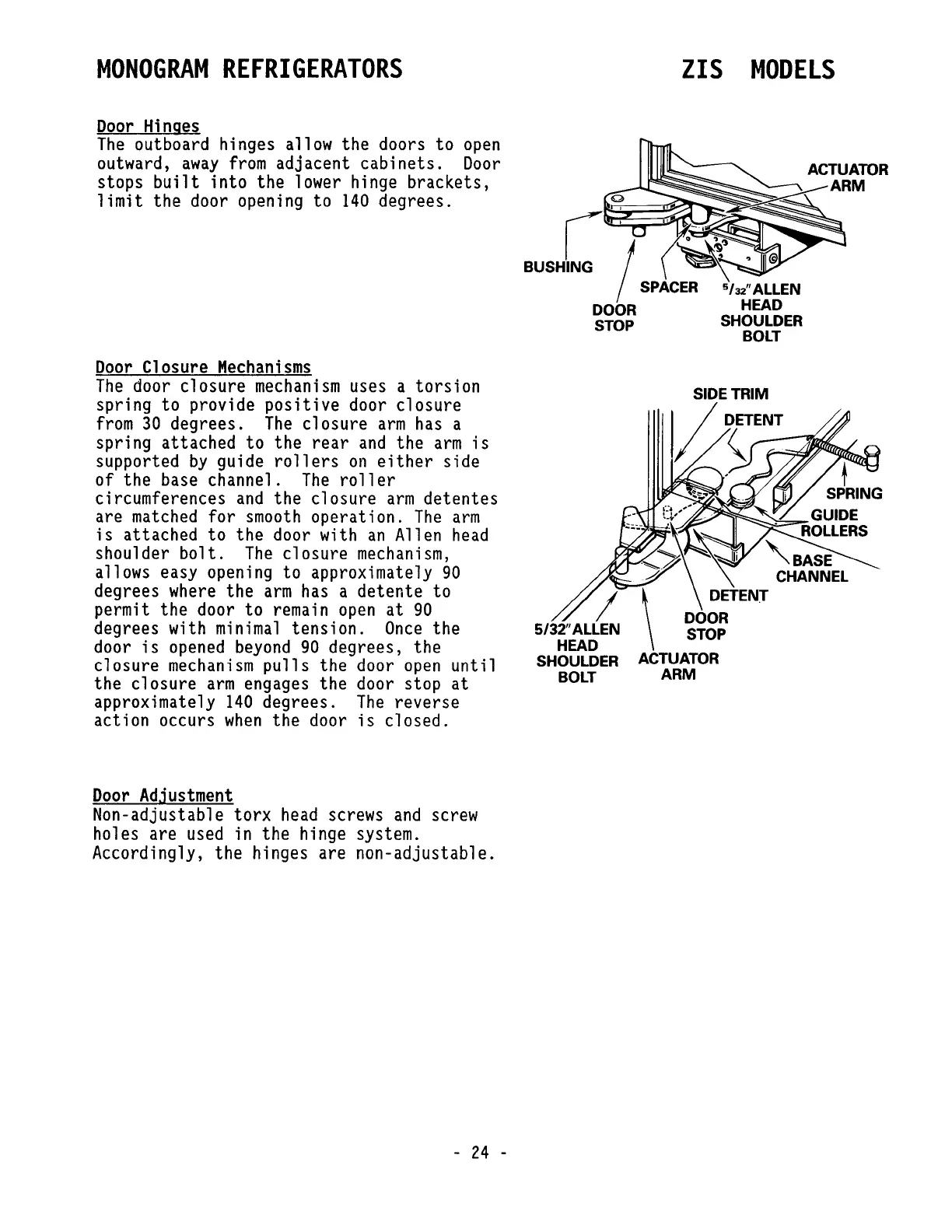

Door Hinges
The outboard hinges allow the doors to open
outward, away from adjacent cabinets. Door
stops built into the lower hinge brackets,
limit the door opening to 140 degrees.
Door Closure Mechanisms
The door closure mechanism uses a torsion
spring to provide
positive door closure
from 30 degrees. The closure arm has a
spring attached to the
rear and the arm is
supported by guide rollers on either side
of the base channel.
The roller
circumferences and the closure arm detentes
are
matched for smooth operation. The arm
is attached to the door with an Allen head
shoulder bolt. The closure mechanism,
allows easy opening to approximately 90
degrees where the arm has a detente to
permit the door to remain
open at 90
degrees with minimal tension. Once the
door
is opened beyond 90 degrees, the
closure
mechanism pulls the door open until
the closure arm engages the door stop at
approximately 140 degrees. The reverse
action occurs
when the door is closed.
Door Adjustment
Non-adjustable torx
head screws and screw
holes are
used in the hinge system.
Accordingly, the hinges are non-adjustable.
- 24 -
I
5/32" ALLEN
HEAD
ZIS MODELS
SIDE TRIM
i ~ETE_NT-----z,/~OlIfn>.-/
SHOULDER ACTUATOR
BOLT ARM
