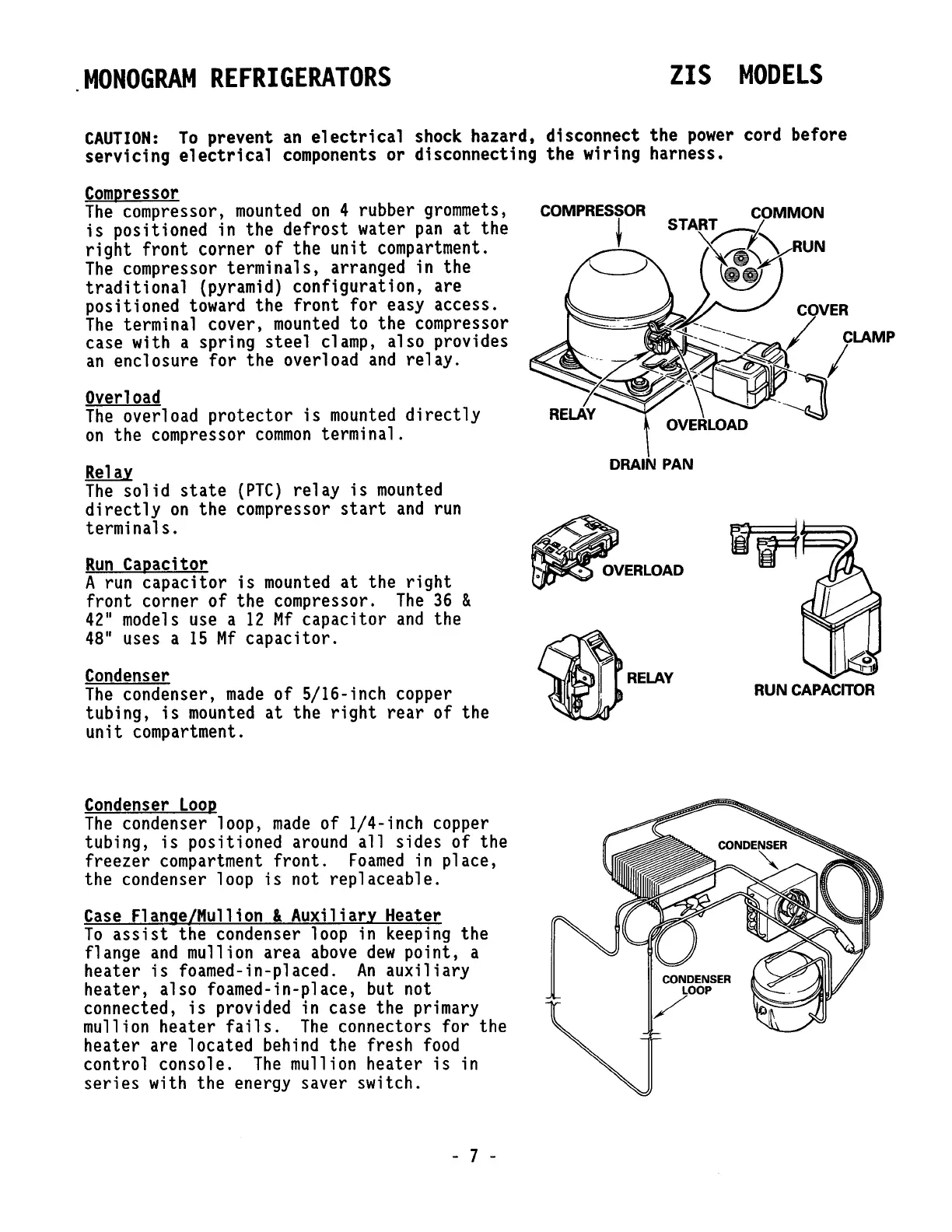

MONOGRAM REFRIGERATORS
ZIS MODELS
CAUTION: To prevent an electrical shock hazard, disconnect the power cord before
servicing
electrical components or disconnecting the wiring harness.
Compressor
The compressor, mounted on 4 rubber grommets,
is positioned in the defrost water pan at the
right front corner of the unit compartment.
The compressor terminals, arranged in the
traditional (pyramid) configuration, are
positioned
toward the front for easy access.
The terminal cover, mounted to the compressor
case with a spring steel
clamp, also provides
an enclosure for the overload and relay.
Overload
The overload protector is mounted directly
on the compressor common terminal.
Relay
The solid state (PTe) relay is mounted
directly on the compressor start and run
terminals.
Run Capacitor
A
run capacitor is mounted at the right
front corner of the compressor. The 36 &
42" models use a 12 Mf capacitor and the
48" uses a 15 Mf capacitor.
Condenser
The condenser, made of 5/16-inch copper
tubing,
is mounted at the right rear of the
unit compartment.
Condenser loop
The condenser loop, made of 1/4-inch copper
tubing,
is positioned around all sides of the
freezer
compartment front. Foamed in place,
the condenser
loop is not replaceable.
Case Flange/Mullion & Auxiliary Heater
To assist the condenser loop in keeping the
flange
and mullion area above dew point, a
heater
is foamed-in-placed. An auxiliary
heater, also foamed-in-place, but not
connected,
is provided in case the primary
mullion heater
fails. The connectors for the
heater are located behind the fresh
food
control console. The mullion heater is in
series with the energy saver switch.
- 7 -
COMPRESSOR
+
~RE~Y
RUN CAPACITOR
