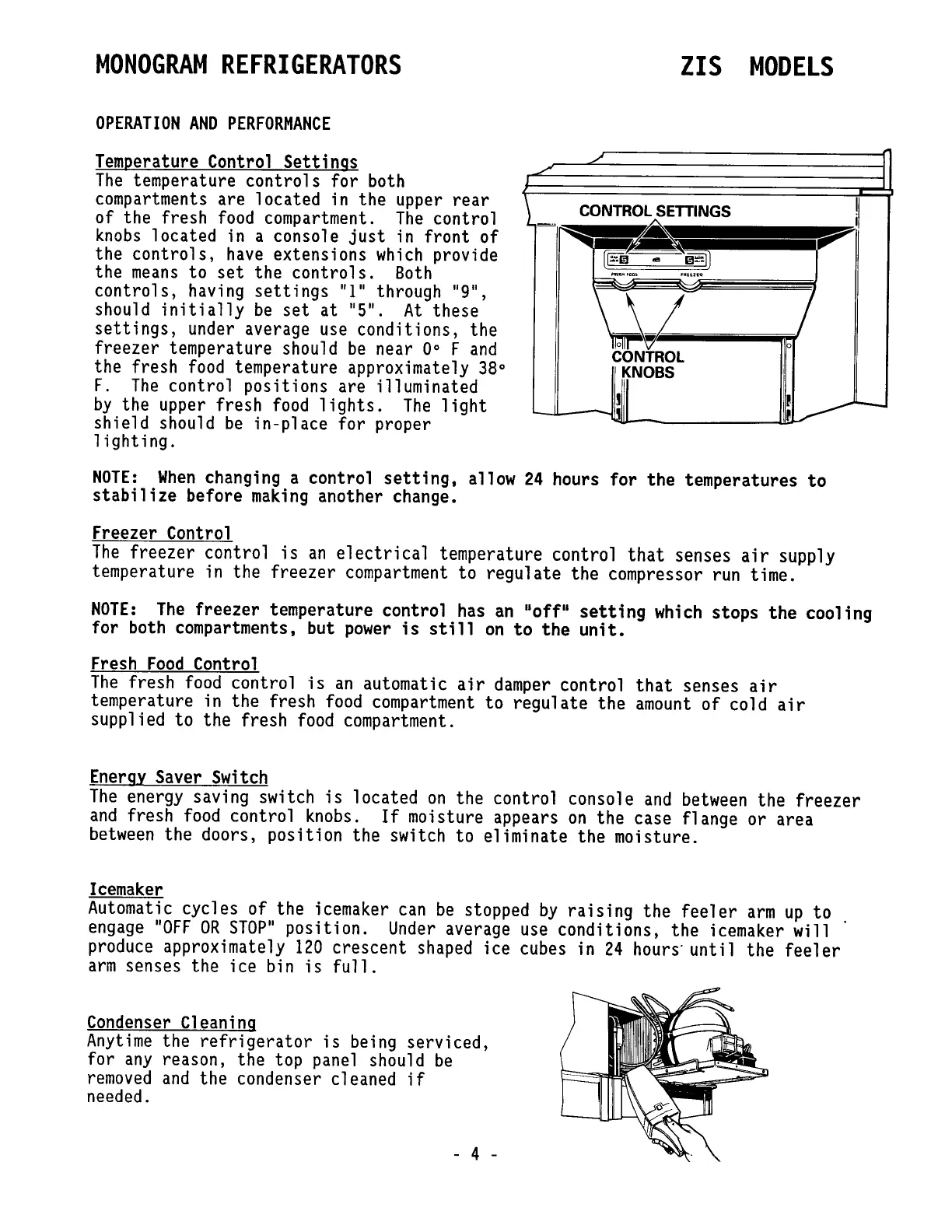

MONOGRAM
REFRIGERATORS
OPERATION
AND
PERFORMANCE
Temperature Control Settings
The
temperature controls for
both
compartments
are located
in
the
upper
rear
of the fresh
food
compartment.
The
control
knobs
located
in
a console
just
in
front of
the controls,
have
extensions
which
provide
the
means
to
set
the controls.
Both
controls, having
settings
"1"
through "9",
should
initially
be
set
at "5".
At
these
settings,
under
average
use
conditions, the
freezer temperature should
be
near 0
0
F
and
the fresh
food
temperature approximately
38
0
F.
The
control positions are illuminated
by
the
upper
fresh
food
lights.
The
light
shield should
be
in-place for proper
lighting.
ZIS
MODELS
NOTE:
When
changing a control
setting,
allow
24
hours for the temperatures
to
stabilize
before
making
another change.
Freezer Control
The
freezer control
is
an
electrical
temperature control
that
senses
air
supply
temperature
in
the freezer
compartment
to regulate the compressor
run
time.
NOTE:
The
freezer temperature control
has
an
"off"
setting
which
stops the cooling
for
both
compartments, but
power
is
still
on
to
the
unit.
Fresh
Food
Control
The
fresh
food
control
is
an
automatic
air
damper
control
that
senses
air
temperature
in
the fresh
food
compartment
to regulate the
amount
of cold
air
supplied to the fresh
food
compartment.
Energy
Saver Switch
The
energy saving switch
is
located
on
the control console
and
between
the freezer
and
fresh
food
control
knobs.
If
moisture appears
on
the case flange or area
between
the doors, position the switch to eliminate the moisture.
Icemaker
Automatic
cycles of the icemaker
can
be
stopped
by
raising the
feeler
arm
up
to .
engage
"OFF
OR
STOP"
position.
Under
average
use
conditions, the icemaker will
produce approximately
120
crescent
shaped
ice cubes in
24
hours' until the
feeler
arm
senses the ice bin
is
full.
Condenser
Cleaning
Anytime
the
refrigerator
is
being serviced,
for
any
reason, the top
panel
should
be
removed
and
the condenser cleaned
if
needed.
- 4 -
