5. Setting up the device
25
Menu level Parameterisation level

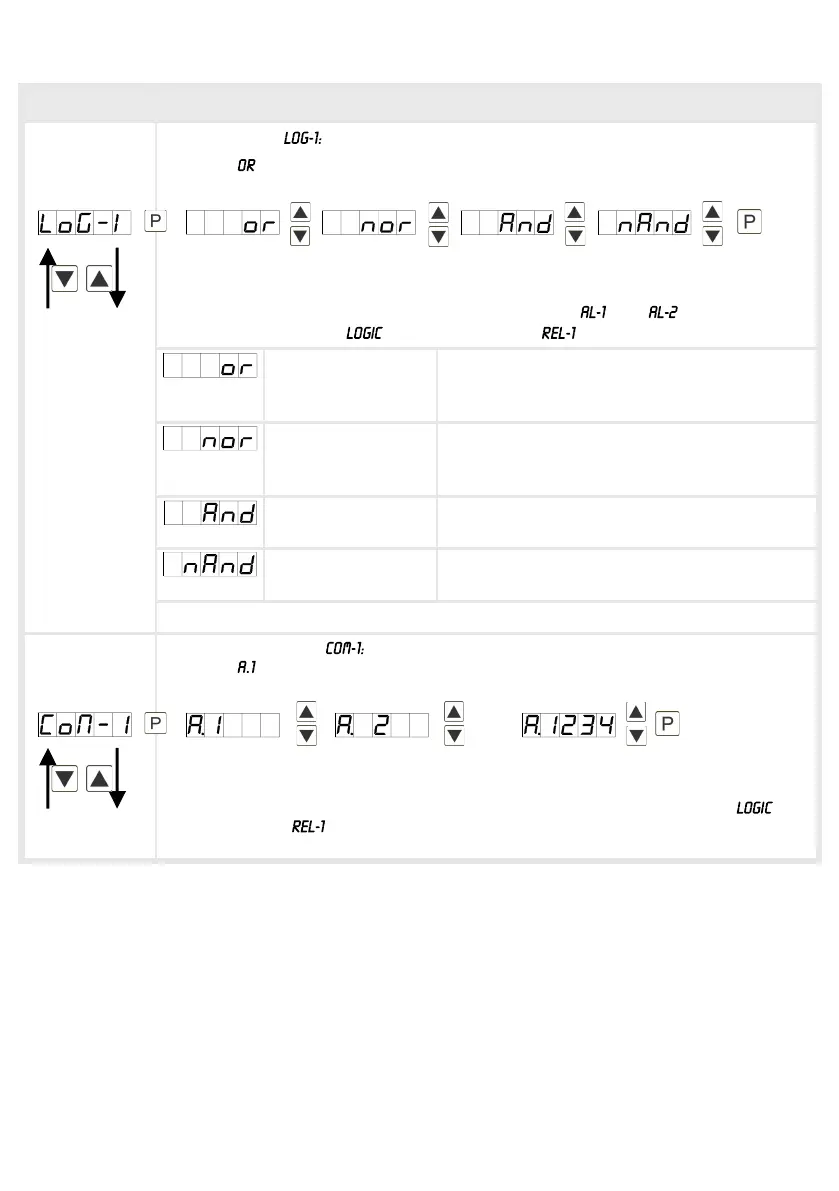

Logic relay 1,
Default:
Here, the switching behavior of the relay is defined via a logic link, the following
schema describes these functions with inclusion of and : This parameter
can only be selected if was selected under .
A1 v A2 As soon as a selected alarm is activated, the
relay operates. Equates to operating current
principle.
A1 v A2 = A1 Λ A2 The relay operates only, if no selected alarm
is active. Equates to quiescent current
principle.
A1 Λ a2 The relay operates only, if all selected alarms
are active.
A1 Λ A2 = A1 v A2 As soon as a selected alarm is not activated,
the relay operates.
With [P] the selection is confirmed and the device changes into menu level.
Alarms for relay 1,
Default:
The allocation of the alarms to relay 1 happens via this parameter, one alarm or a
group of alarms can be chosen. This parameter can only be selected if was
selected under . With [P] the selection is confirmed and the device changes
into menu level.
