SS03/05/10-S/Q/C Hardware Manual

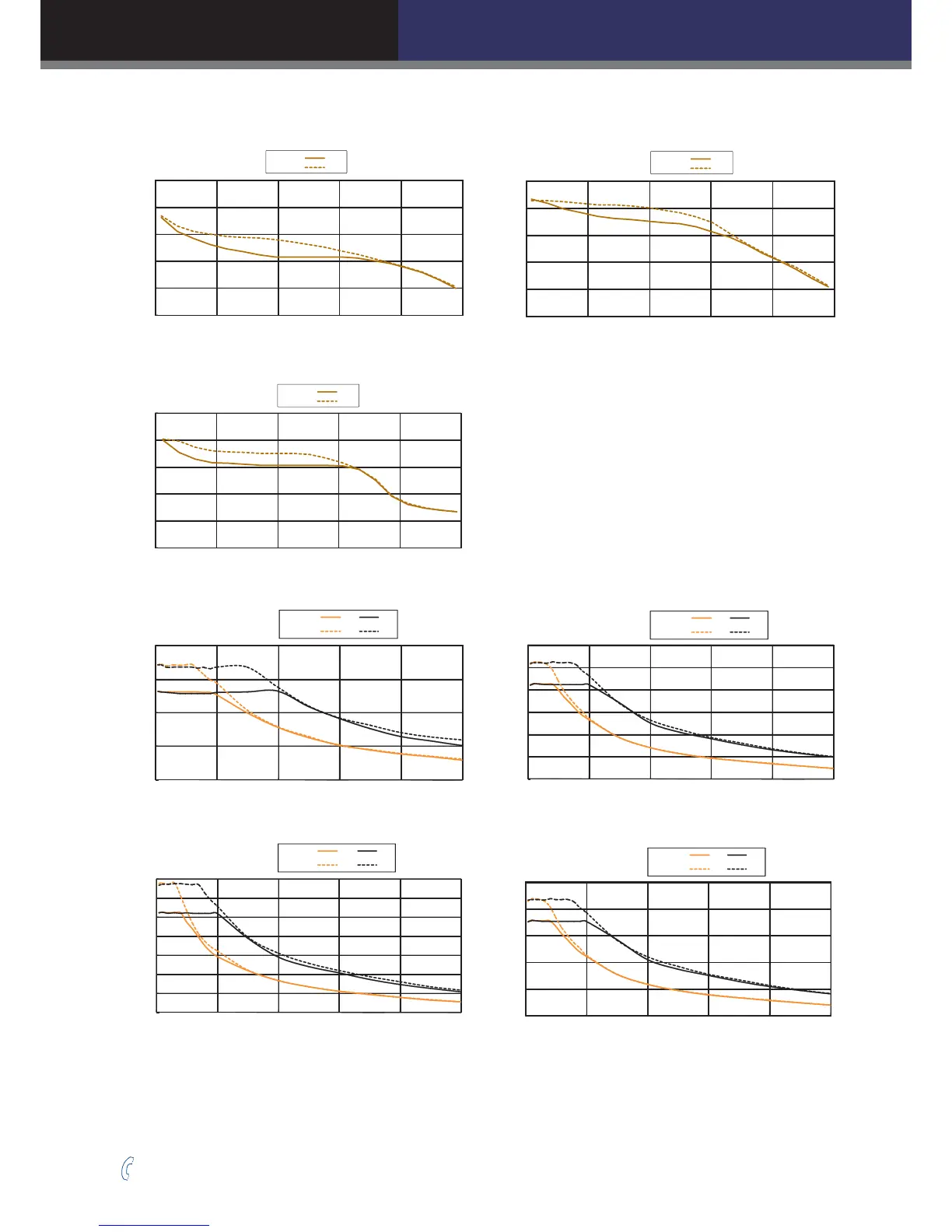

6.5 Torque Curves
0
20
40
60
80
100
01020304050
Torque(mN·m)
Speed(rps)
AM11SS1DMA
24V
24V
Continuous
Boost
0
20
40
60
80
100
0 1020304050
AM11SS2DMA
24V
24V
Torque(mN·m)
Speed(rps)
Continuous
Boost
0
30
60
90
120
150
0 1020304050
AM11SS3DMA
24V
24V
Torque(mN·m)
Speed(rps)
Continuous
Boost
0
0.1
0.2
0.3
0.4
0 1020304050
AM17SS1DGƑ
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.1
0.2
0.3
0.4
0.5
0.6
0 1020304050
AM17SS2DGƑ
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0 1020304050
AM17SS3DGƑ
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.2
0.4
0.6
0.8
1.0
01020304050
AM17SS4DGƑ
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
