3.1.2 X3/CW LIMIT and X4/CCW LIMIT High-speed Digital Inputs
X3/CW LIMIT and X4/CCW LIMIT are high-speed digital inputs operation 5-24V optically isolated
single-ended or differential signal. The maximum input frequency is 2MHz.
;FDQEHFRQ¿JXUHGDV&:OLPLWVHQVRULQSXWDQG;FDQEHFRQ¿JXUHGDV&&:OLPLWVHQVRU
input.
NOTE:
If current is Àowing into or out of an input ,the logic state of that input is low or closed.
If no current is Àowing ,or the input is not connected,the logic state is high or open.

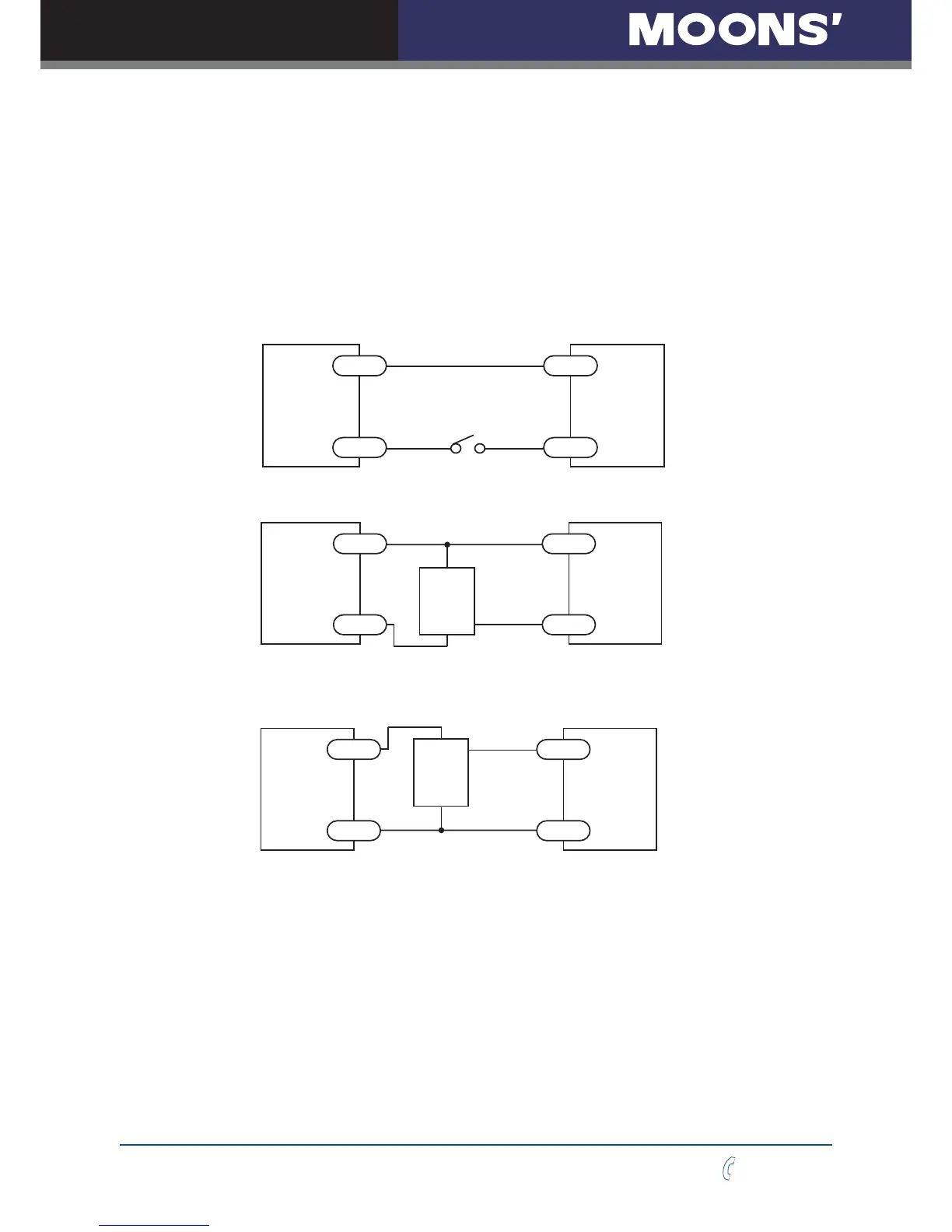

The diagrams below show how to connect to CW LIMIT and CCW LIMIT. Please select the polarity
of the limit sensor by using the Step-servo Quick Tuner.
5-24VDC
Power Supply
Connecting to a switch or relay
X3/X4+
X3/X4-
+
-
Switch or Relay
(Closed: logic low)
SS-S/Q/C
5-24VDC
Power Supply
X3/X4+
X3/X4-
+
-
+
-
output
SS-S/Q/C
Connecting a NPN type Proximity Sensor to an Input
(when proximity sensor activates, output goes low)
NPN
Proximity
Sensor
X3/X4+
X3/X4-
+
-
+
-
output
SS-S/Q/C
Connecting a PNP type Proximity Sensot to an input
(when proximity sensor activates, output goes high)
PNP
Proximity
Sensor
5-24VDC
Power Supply
