3.2 Digital Outputs
3.2.1 Y1/ALARM,Y2/IN POSITION,Y3 and Y4 Digital Outputs
 <FDQEHFRQ¿JXUHGDVDODUPVLJQDORXWSXW,WFDQDOVREHFRQ¿JXUHGDVVWDWLFLQSRVLWLRQ
signal output(static, checking in position when motor is stopped) ,or as dynamic in position
signal output (dynamic, checking in position all the time.)
 <FDQEHFRQ¿JXUHGDV7DFKVLJQDORXWSXWWDFKRXWSXWSURGXFHSXOVHVUHODWLYHWRWKHPRWRU
SRVLWLRQZLWKFRQ¿JXUDEOHUHVROXWLRQ,WFDQDOVREHFRQ¿JXUHGDVVWDWLFLQSRVLWLRQVLJQDO
output(static, checking in position when motor is stopped) ,or as dynamic in position signal
output (dynamic, checking in position all the time.),or as Timing signal output(50 pulses per
rotation)
 <FDQEHFRQ¿JXUHGDVVLJQDORXWSXWWRUHOHDVHEUDNH,WFDQDOVREHFRQ¿JXUHGDVVWDWLFLQ
position signal output(static, checking in position when motor is stopped) ,or as dynamic in
position signal output (dynamic, checking in position all the time.)
 <FDQEHFRQ¿JXUHGDVVWDWLFLQSRVLWLRQVLJQDORXWSXWVWDWLFFKHFNLQJLQSRVLWLRQZKHQPRWRU
is stopped) ,or as dynamic in position signal output (dynamic, checking in position all the time.)
<<<DQG<FDQEHFRQ¿JXUHGE\6WHS6HUYR4XLFN7XQHU

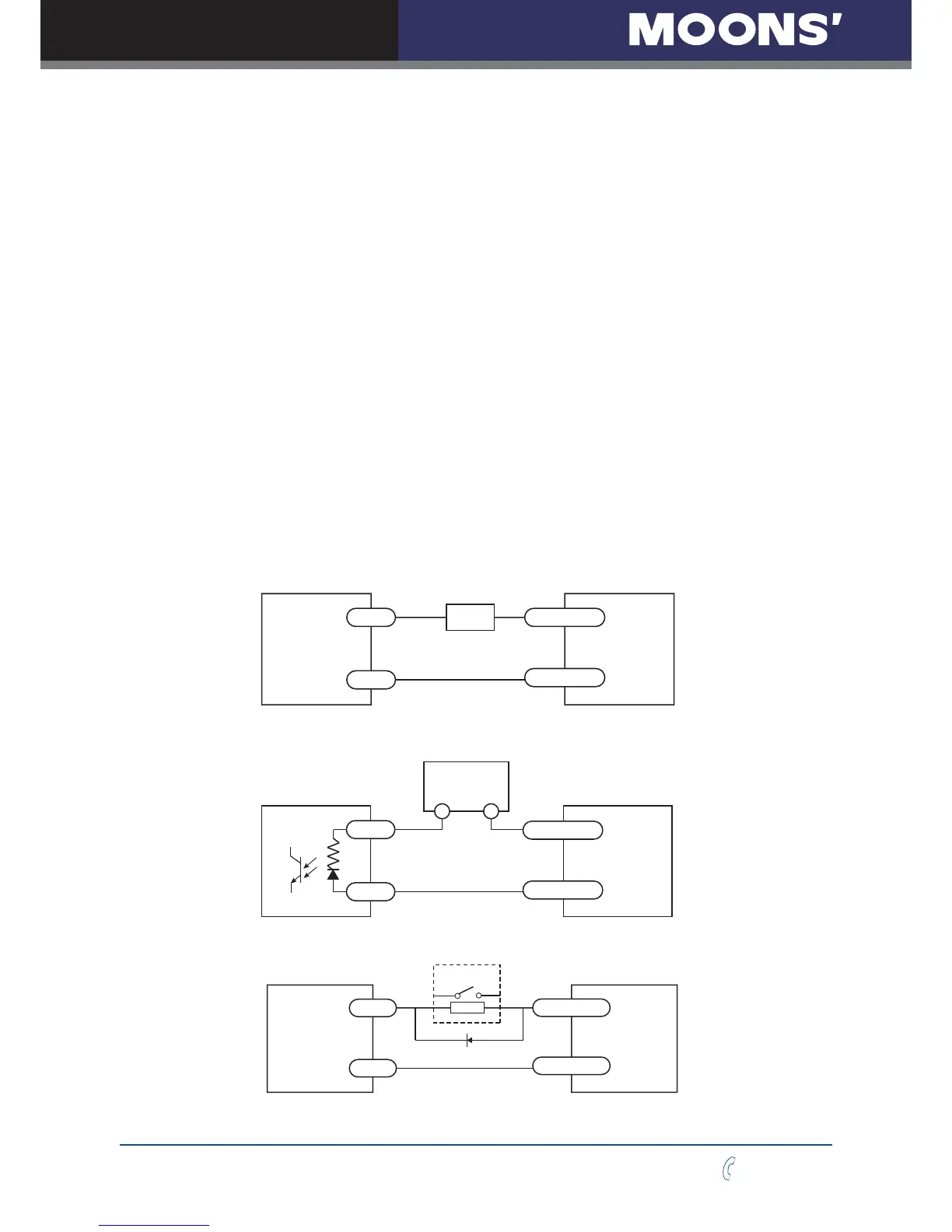

The chats below show how to connect to the output:
NOTE: Do not connect the outputs to more than 30VDC power supply.
And the current of each output terminal must not exceed 100mA.
+
-
Y1/Y2/Y3/Y4+
Y1/Y2/Y3/Y4-
Connecting a Sinking Output
Load
SS-S-Q-C
5-24VDC
Power Supply
COM
IN
PLC
Connecting a Sourcing Output
+
-
5-24VDC
Power Supply
SS-S-Q-C
Y1/Y2/Y3/Y4+
Y1/Y2/Y3/Y4-
+
-
Driving a Relay
relay
1n4935 Suppression Diode
SS-S-Q-C
Y1/Y2/Y3/Y4+
Y1/Y2/Y3/Y4-
5-24VDC
Power Supply
