8
Rev. 1.1
0004102014
SS03/05/10-S/Q/C Hardware Manual
400-820-9661
2 Getting Started
The following items are needed:
A 24-75 Volt DC power supply, see the section below entitled “Choose a Power Supply” for
help in choosing the right one.
A compatible SS motor, please see the section below entitled “Recommended Motor”
$VPDOOÀDWEODGHVFUHZGULYHUIRUWLJKWHQLQJWKHFRQQHFWRUVVFUHZLQFOXGHG
A PC running Microsoft Windows XP/Vista/Windows7(Using serial communication port. Need a
USB to Serial converter if the PC doesn’t have. )
A RS-232 communication cable(included)
Require CAT5 cable for RS-485 or CANopen daisy chain connection.
2.1 Installing Software

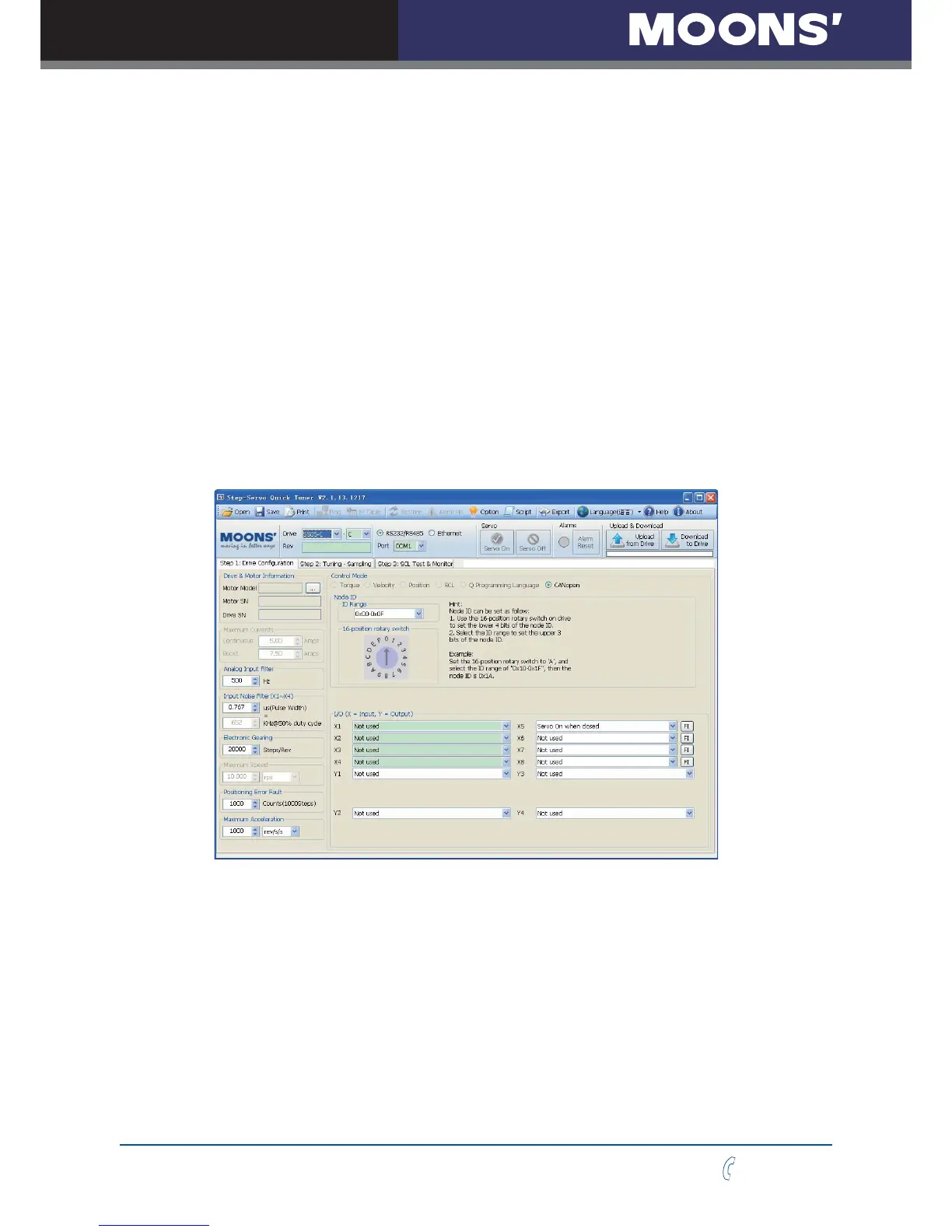

6WHS6HUYR4XLFN7XQHULVWKH3&EDVHGVRIWZDUHDSSOLFDWLRQXVHGWRFRQ¿JXUHDQGSHUIRUP
servo tuning, drive testing and evaluation of the step-servo products. System servo control gains,
GULYHIXQFWLRQDOLW\DQG,2FRQ¿JXUDWLRQDUHVHWZLWK6WHS6HUYR4XLFN7XQHU,WDOVRFRQWDLQVDQ
oscilloscope function to help set the servo control gains.
Download the Step-Servo Quick Tuner from the MOONS’ website and install it.
Launch the software by clicking Start-----Programs ----MOONS’
Connect the drive to PC by RS-232 cable. Please select right COM port in the software.
Connect the drive to the Power Supply.
Connect the motor to the drive.
Power up the drive.
7KHVRIWZDUHZLOOUHFRJQL]H\RXUGULYHGLVSOD\WKHPRGHODQG¿UPZDUHYHUVLRQDQGEHUHDG\
for action.
For -Q drive, download and install Q Programmer software.
For -C drive, if want to use the Q program,it also need to download and install Q Programmer
software.
