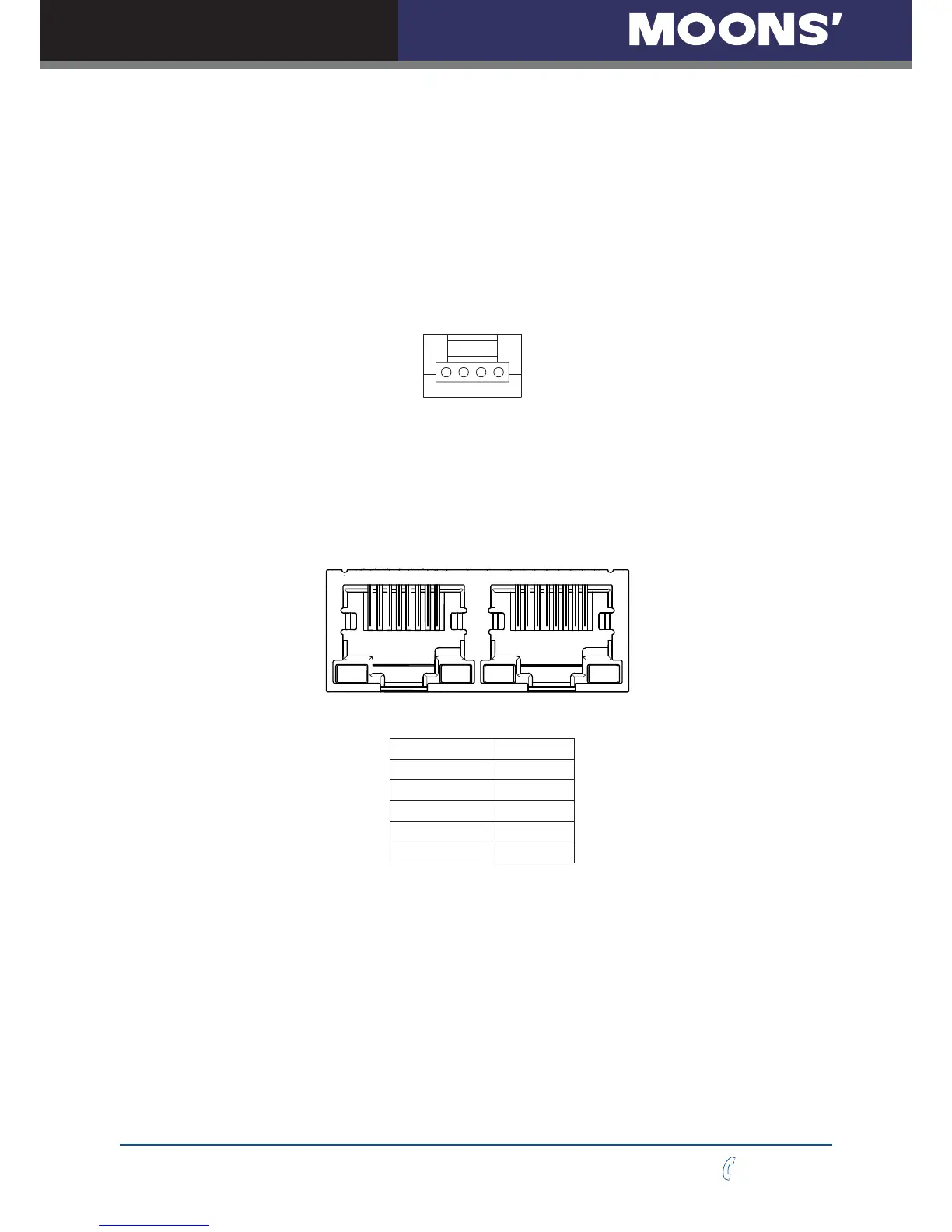

2.2 Connecting to the PC using RS-232
The SS drives are shipped with a 1.5 meters RS-232 communication cable. The DB9 connector is
used to connect to PC. The small end is a crimping connector used to connect to the drive.
Located the SS drive within 1.5 meters of the PC. Plug the DB9 connector into the serial COM
port of the PC. Plug the small end crimping connector into the RS-232 port of the drive. Do not hot
plug.
If the PC doesn’t have a RS-232 serial port, a USB to RS232 converter will be needed.
You can contact MOONS’ to buy a USB to RS-232 converter..
RS-232 Connector Diagram
2.3 Connecting to a Host using RS-485
The RS-485 version SS drives can be daisy-chain connected through the dual-port RJ45
connectors at the side of the drive, using CAT5 cable.
PIN1 PIN1 PIN8PIN8
RJ45 Connector Diagram
PIN Function
1RX+
2RX-
3TX+
6TX-
4
,5,7,8
GND
GND TX +5V RX
