Multi-axis Series Hardware Manual

2.2 Connect the Power

SSDC multi-axis series products share a power connector, the ﬁrst on the left side of the

connector is the V+ of the power supply, the second is the V- of the power supply, be careful not to

connect the reverse.

(Note: Please power on the drive after all the wiring is complete!)

V+ V-

V+

V-

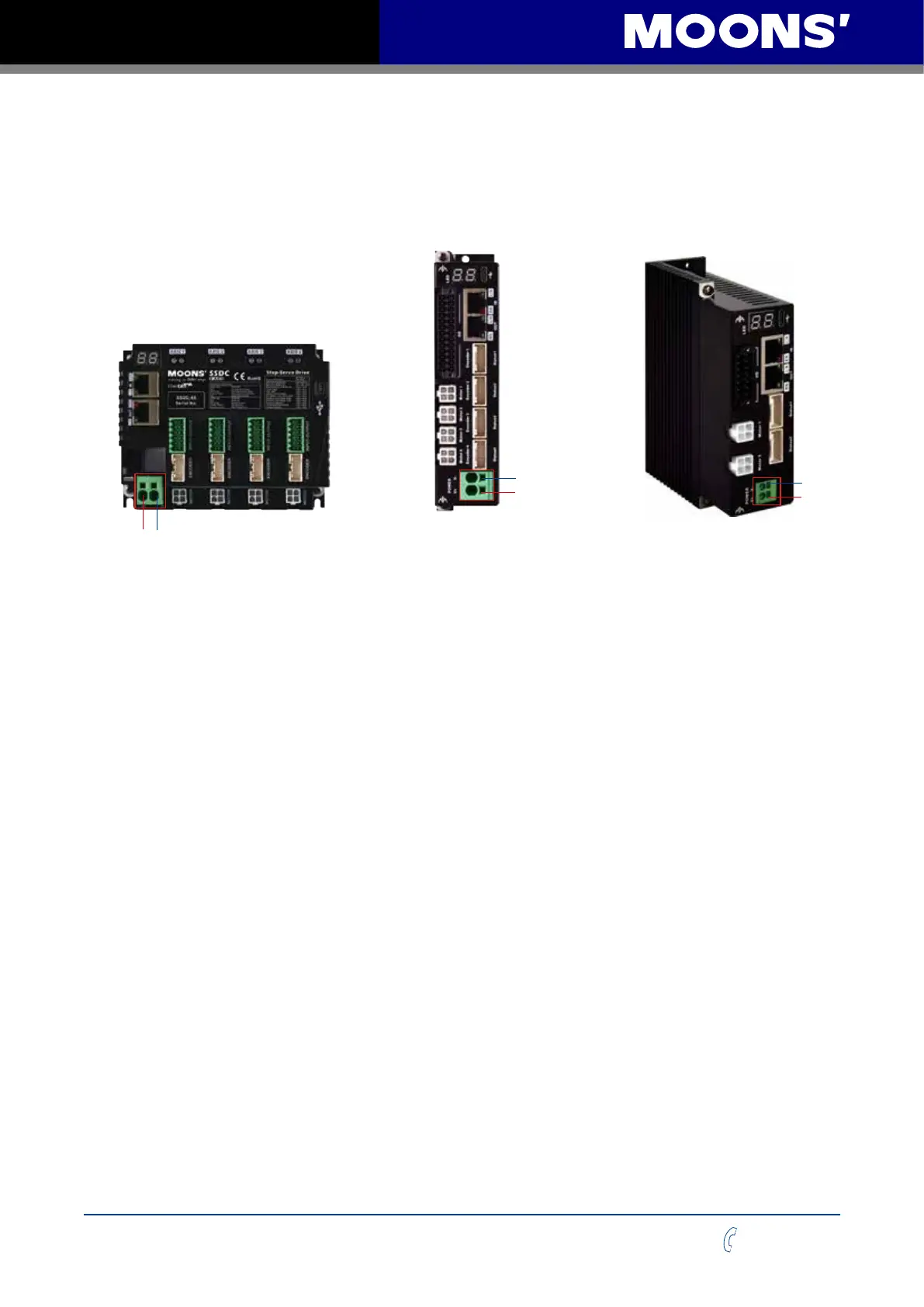

SSDC06/10-4X-ECX

SSDC06/10-4XU-ECX SSDC06/10-2XU-ECX

V+

V-

SSDC06/10 Multi-axis series products operating voltage range 24-70VDC

Please read the section entitled “Choose a Power Supply” above to help you choose the right

power supply.。

(Note: Do not reverse connect the power supply, please power on the driver after all wiring is

complete!)
