Moons' SSDC Multi-axis Series - Drive Dimensions

28
Rev. 1.0
09/27/2023
400-820-9661
Multi-axis Series Hardware Manual

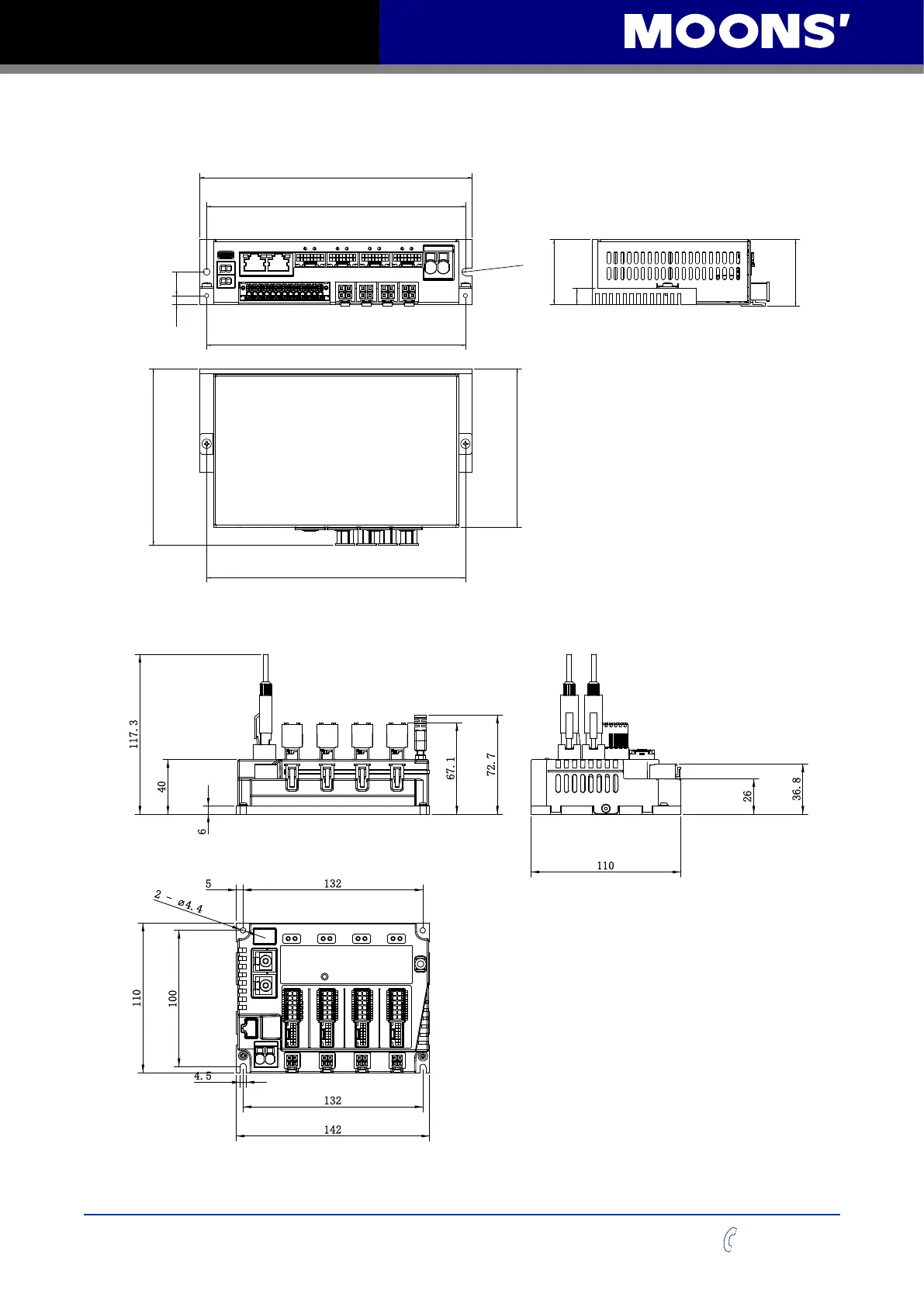

6.2 Drive Dimensions
160
152
R2.1
152
14
5
103.76
152
93
9.4
38
39.1
SSDC-4XU Units: mm
SSDC-4X Units: mm
