2.3 Installing Software

Stepper Suite is a PC-based Step-Servo application conﬁguration and debugging software that

can be used to conﬁgure and set various operating modes, adjust servo tuning parameters,

and test and evaluate drive performance. The software has powerful functions, user-friendly

interface and easy operation. Simple gain adjustment, a variety of control function options, I/O

function Settings, motion trajectory simulation to provide customers with the most rich application

experience.

• Download and install the Stepper Suite software from the website of MOONS ‘(please click

https://www.moons.com.cn /support-training/tools/stepper suite to download the software)

• Click on Start/All Programs/MOONS ‘/ Stepper Suite to run the software (USB driver is already

integrated in the software installation package)

• Connect the drive to the computer via the USB mini communication cable, and note that USB

port is selected in the software port

• Connect the drive to the DC power supply

• Connect drive to motor

Power on the drive software will automatically recognize the drive model and ﬁrmware version,

indicating that the drive is ready.

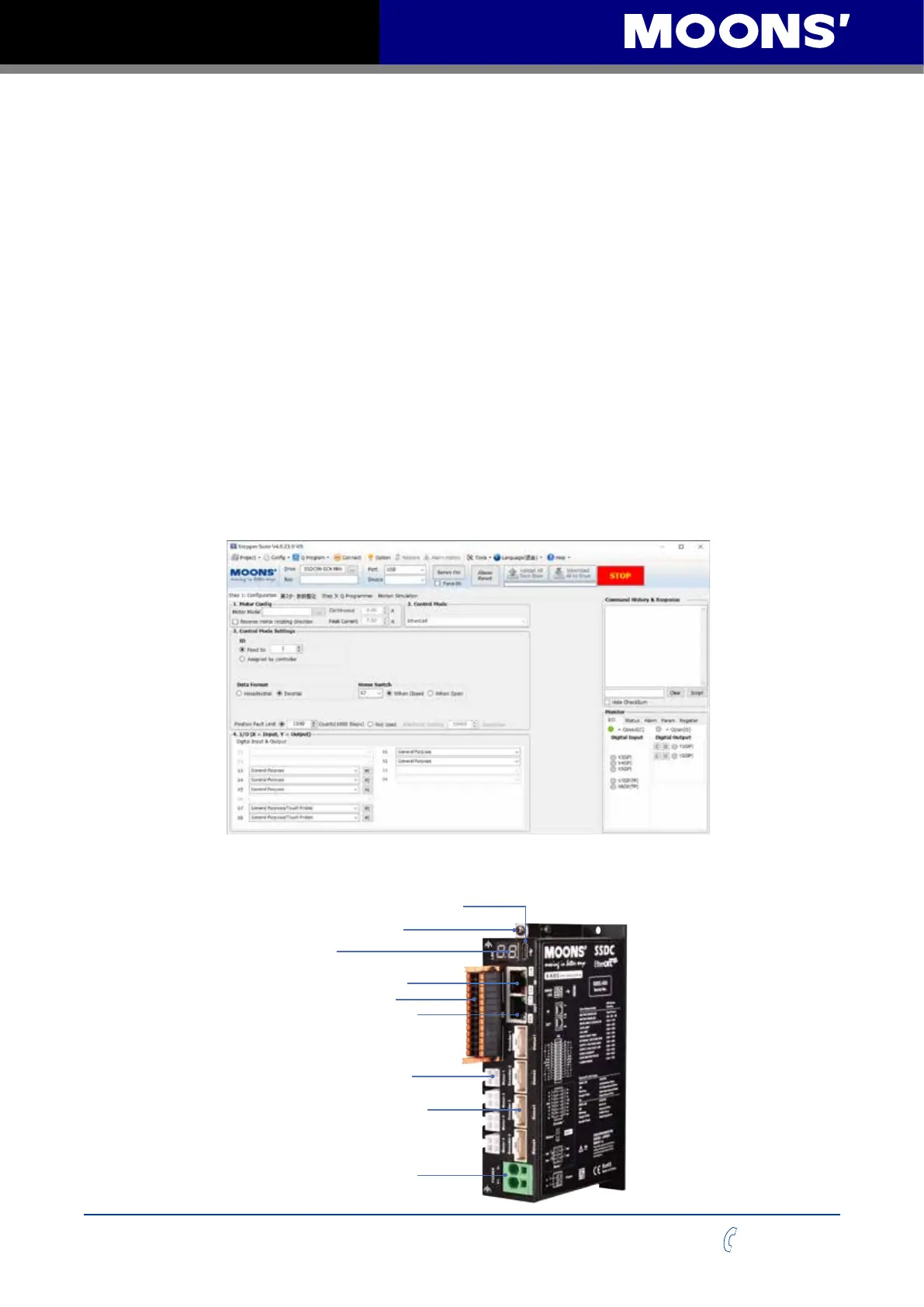

Connectors and other important information are shown below:

Connectors and other important information are shown below：

EtherCAT Input

EtherCAT Output

LED

I/O Connector

Encoder Connector

Motor Connector

Power Connector

Ground Screws

Type C

Communication Interface
