Multi-axis Series Hardware Manual

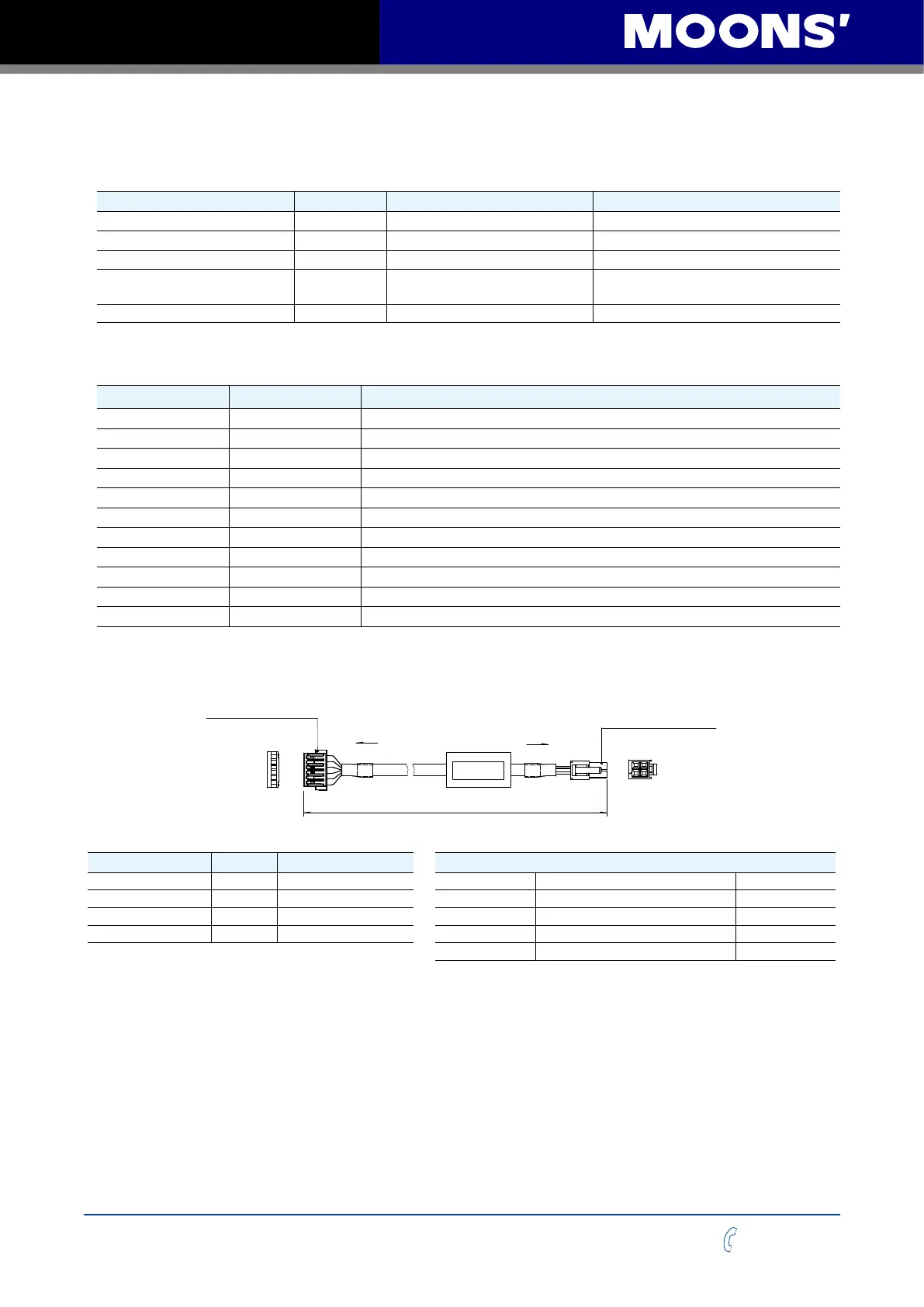

7 Accessories
7.1 Standard Accessories（Included）
Model Number Catagory
Description
15EDGKNHG-3.5-14P-13-00A(H) 1 IO Connector Plug SSDC-2XU
15EDGKNH-3.5-12P-14-00A(H) 4 IO Connector Plug SSDC-4X
15EDGKNHG-3.5-26P-13-00A(H) 1 IO Connector Plug SSDC-4XU
43025-0600 1
STO Connector Plug Plastic
Housing
Only for models with STO drives
43030-0001 8 STO connector plug pin Only for models with STO drives
7.2 Optional Accessories (Sold separately)
Model Catagory Description
2136 Series Cable Extended motor cable
（
For SSDC drive and AM08RS motor
）
2109 Series Cable Extended motor cable
（
For SSDC drive and AM11RS motor
）
2027 Series Cable Extended motor cable
（
For SSDC drive and AM17/23/24SS-N
、
AM17/23/24RS motor
）
2028 Series Cable Extended motor cable
（
For SSDC drive and AM34SS-N
、
AM34RS motor
）
2124 Series Cable Extended encoder cable
（
For SSDC drive and AM08RS motor
）
2118 Series Cable Extended encoder cable
（
For SSDC drive and AM11RS motor
）
2117 Series Cable Extended encoder cable
（
For SSDC drive and AM17/23/24/34SS-N motor
）
2159 Series Cable Extended encoder cable
（
For SSDC drive and AM17/23/24/34RS motor
）
2012 Series
Cable Network Cable
2013 Series
Cable Network cable with shield
RC880 Regeneration Clamp Regeneration Clamp
7.2.1 Extended motor cable（For AM08RS motor）
L
A
Housing：ZHR-6
Crimp：SZH-002T-P0.5
Housing：39-01-3048 (Molex)
Crimp：39-00-0046 (Molex)
B
J1
A向
1
6
J2
B向
4
3
2
1
Model
Length(L) Description
Wiring Diagram
2136-0100 1m
Standard type PIN(J1) Color (Signal) PIN(J2)
2136-0300 3m
Standard type
6
Blue(B-)
1
2136-0500 5m
Standard type
4
Red(B+)
2
2136-1000 10m
Standard type
3
Green(A-)
3
1
Black(A+)
4
