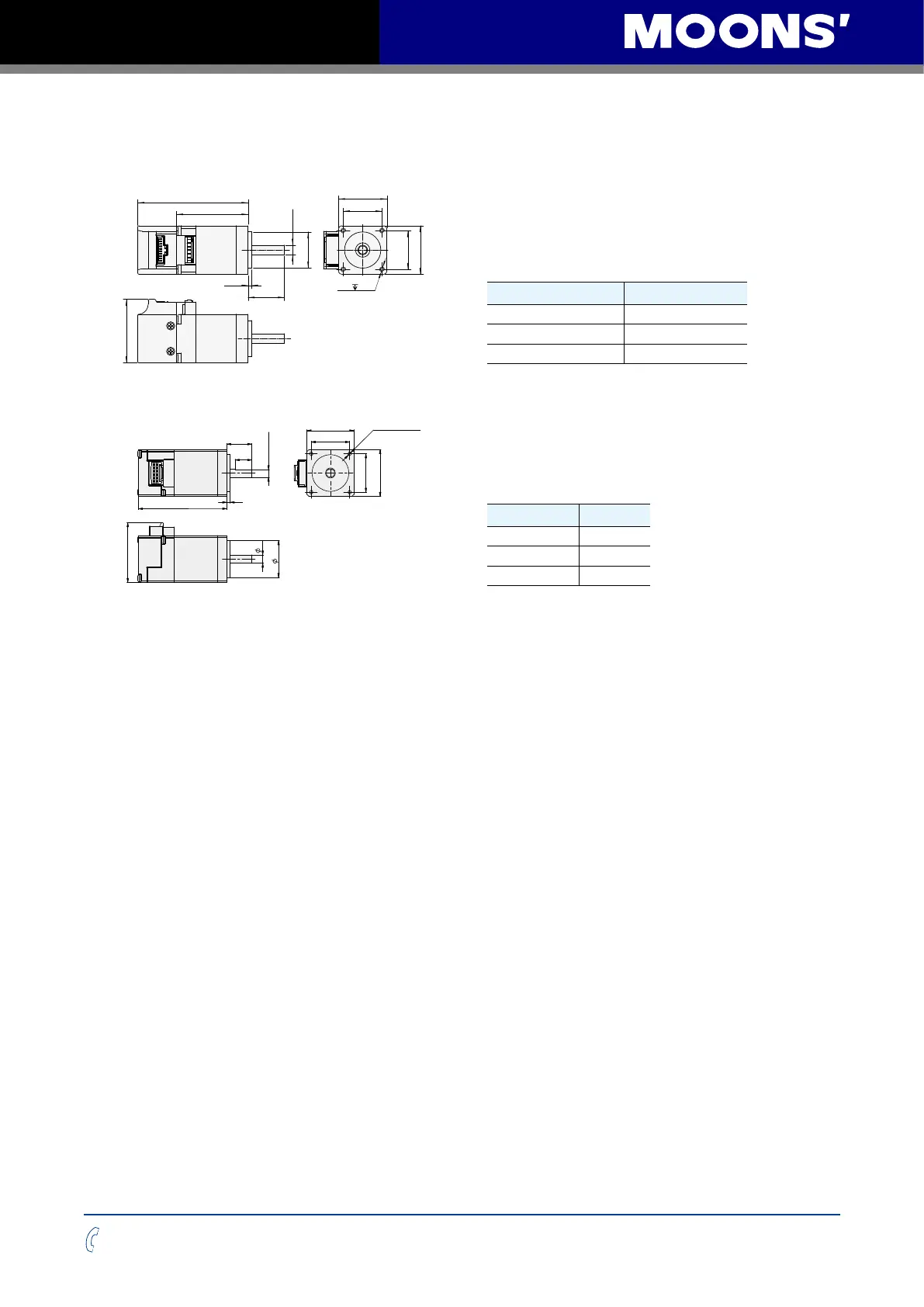

6.4 Motor Dimensions (Unit:mm)
AM08 Series
L
20.3 Max
20.3 Max
29.5 Max
1.5±0.2
15±0.5
16±0.2
16±0.2
4-M2 3 Min
26.2
φ4-0.012
0
φ15-0.052
0
Model L
AM08RS1DMA 45.5
AM08RS2DMA 55.5
AM08RS3DMA 72.5
AM11 Series
4.5 FLAT
Depth 2.5 Min
36
5
22
L
15
2
10
4-M2.5
28
23
23
28
Model L
AM11RS1DMA 43.8
AM11RS2DMA 52.9
AM11RS3DMA 64.1
