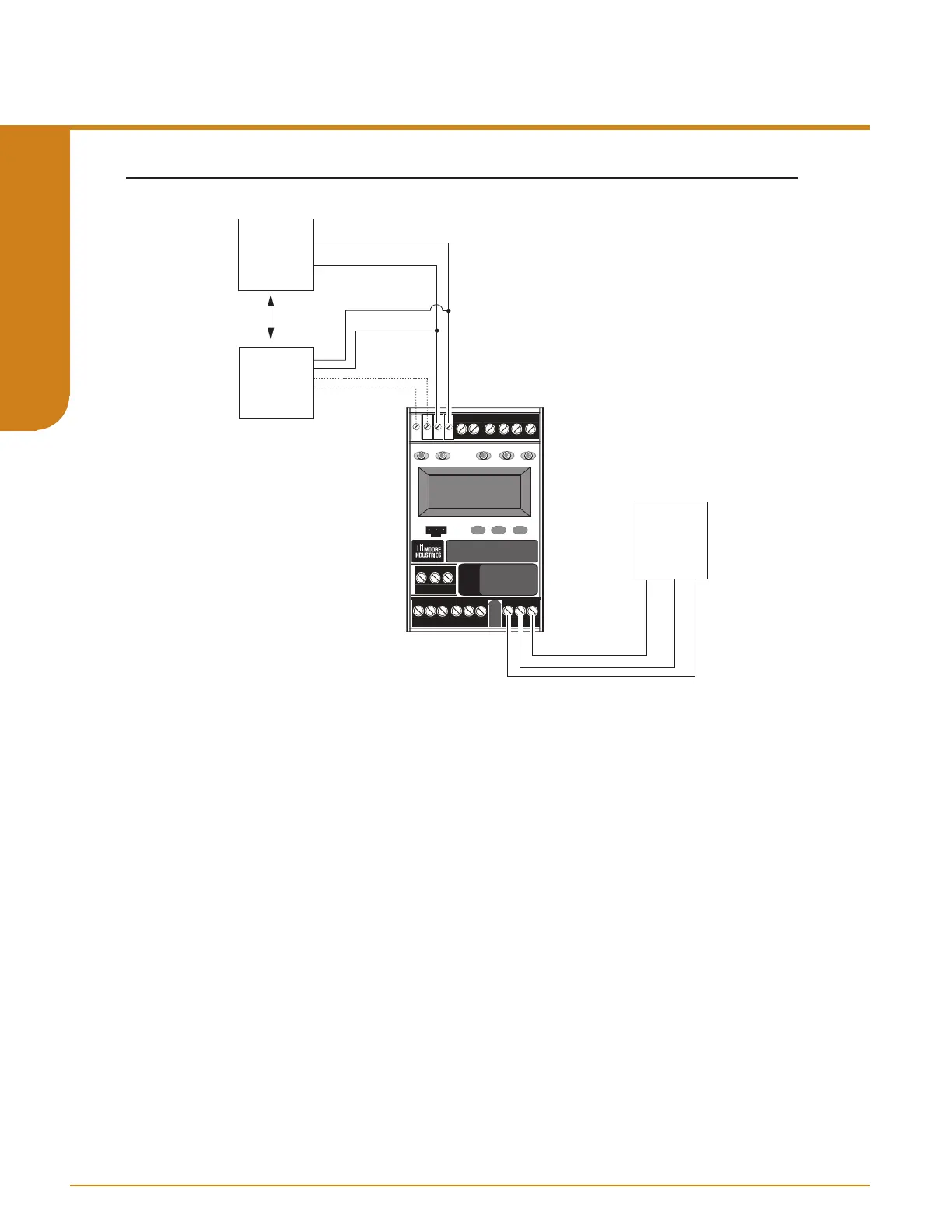

Figure 3.5. STA (TPRG) Hook-Up Diagram
POWER
SUPPLY
GND
-
+
MILLIVOLT
SOURCE
OR T/C
SIMULATOR
_
+
OHMS
OR RTD
SIMULATOR
SELECT
DOWN
UP
COM
READY
INPUT TRIP 1TRIP 2
FAULT
STA
SAFETY
TRIP
ALARM
TAG
*Power Supply for unit is
determined by configuration
ordered.
See Table 3.4
for Sensor
Hook-up Guide
