Section 8 - Applications
The following are examples of typical STA congurations.

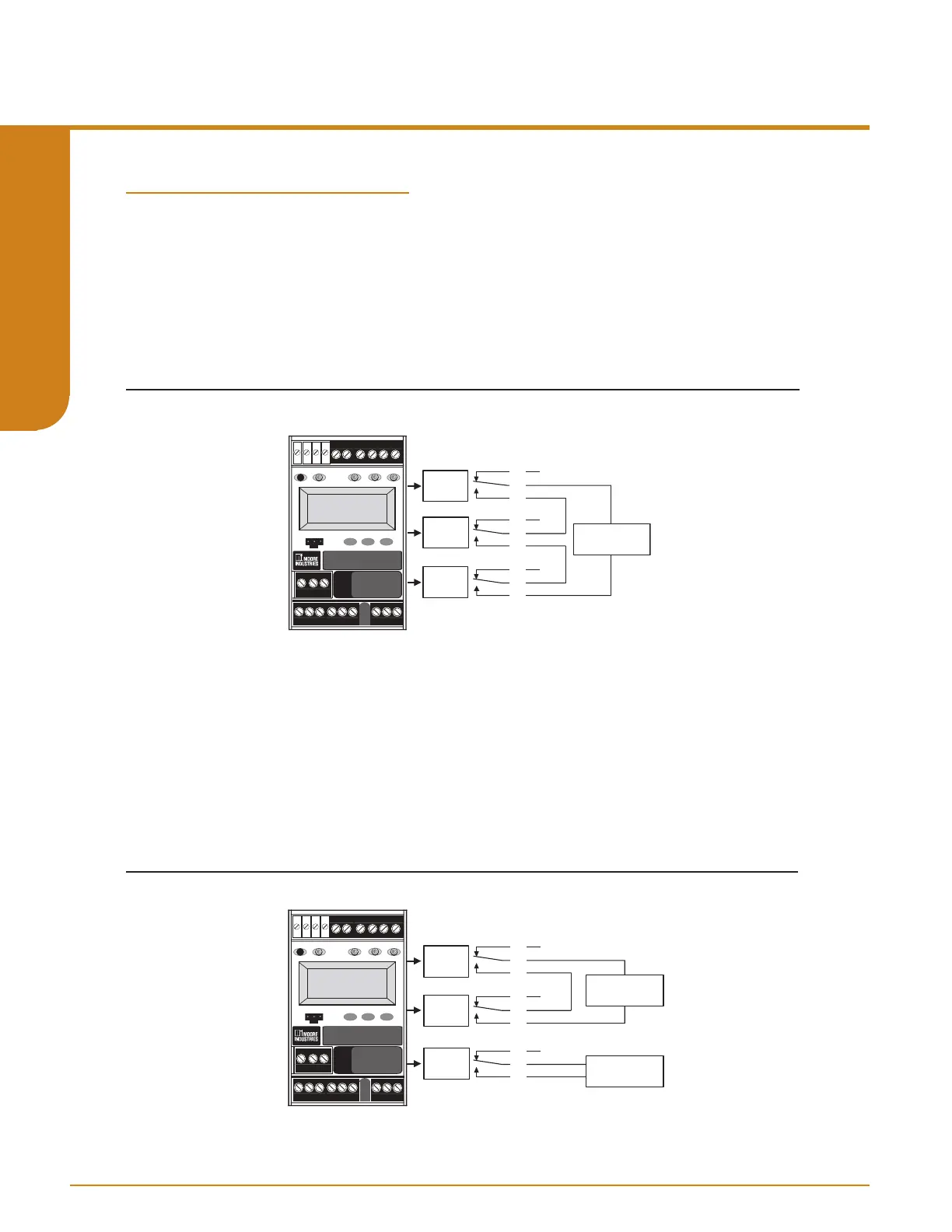

High Integrity Alarm Trip
The conguration shown in Figure 8.1. o󰀨ers the highest trip integrity. Since the trip and fault
relays are wired in series, any trip alarm or STA fault will trip the nal element or logic solver.
However this conguration is vulnerable to spurious trips as STA safe failures will also trip the
nal element.
Figure 8.1. High Integrity Alarm Trip example
High Availability Architecture
The configuration shown in Figure 8.2. offers higher system availability. The Fault alarm is wired
separately to inform the safety system that there is a fault alarm and that this component’s ability
to carry out its portion of Safety Instrumented Function cannot be performed. This configuration
can be used in applications where it is safe to keep the process running for a short time while
a defective instrument is repaired, however this configuration will NOT trip if an STA fault is
diagnosed.
This type of conguration must be used with care in a safety system. The end user must
determine how long the process is allowed to continue after a STA fault is detected and ensure
that the unit can be repaired or replaced within this time.
Figure 8.2. High Availability Alarm Trip example
