SECTION 4

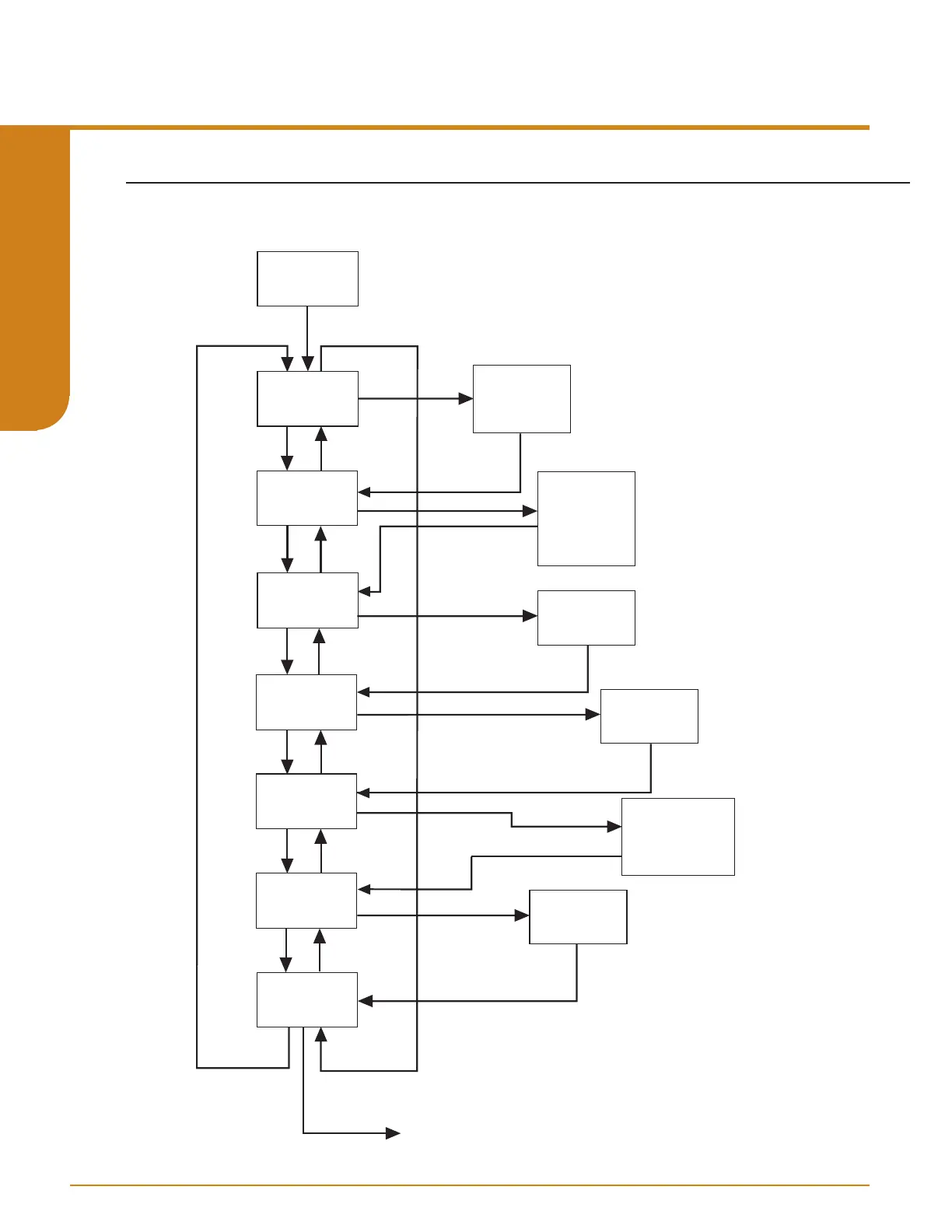

Figure 4.11. CONFG OPTNS Menu
CONFG
OPTNS
D
U
D
U
DSPLY
MODE
SET
DPS
SET
FILTR
SEL
D
D
U
U
DSPLY
TEST
D
U
START
DELAY
CONFG PASWD menu
D
U
Selection:
PV
AOUT
PV + AOUT
SEL
SEL
SEL
Selection:
AUTO
XXXXX
XXXX.X
XXX.XX
XX.XXX
SEL
SEL
Selection:
50 HZ
60 HZ
Display test
is executed,
returns to
FCTRY CONFG.
SEL
SEL
SEL
Change Value:
XXX SEC
SEL
Selection:
RESET NO
RESET YES
SEL
SEL
EXIT
OPTNS
D
U
FCTRY
CONFG
