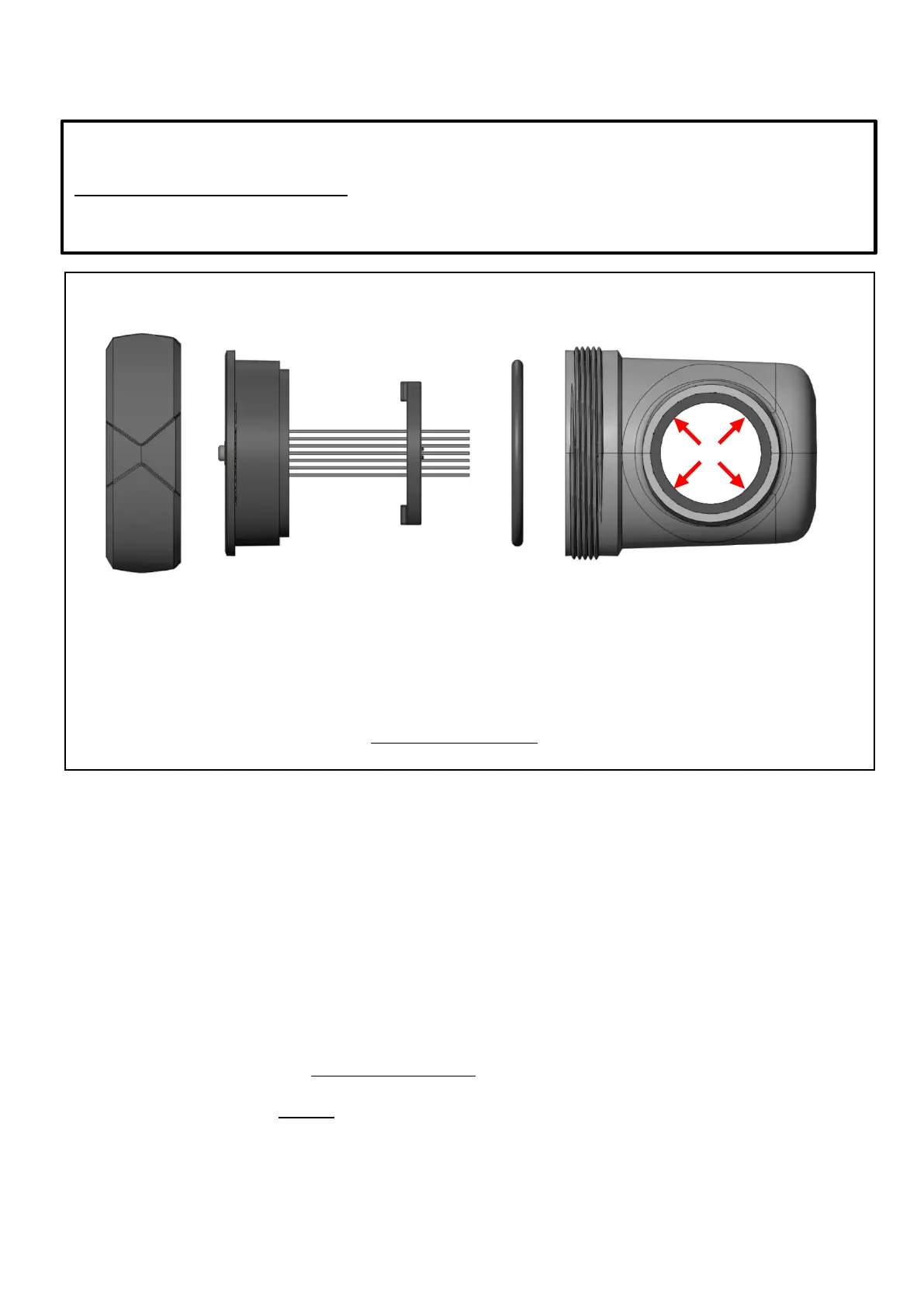

Exploded diagram of the assembly:
A : Nut
B : Electrode
C : Seal
D : Sleeve
E : Pipes (50 mm outer diameter)
1) Fully disassemble the cell as per the exploded diagram above.
2) Rub down all bonding surfaces with sandpaper: sleeve D, pipe E.
3) Glue the assembly [sleeve D - pipe E].
4) Wait for the glue to dry completely.
5) Grease seal C.
6) Place seal C at the bottom of electrode B.
7) Insert electrode B into sleeve D, paying attention to the fool-proofing devices.
8) Screw on and tighten nut A by hand onto sleeve D.
I
The electrical connections at cell level:
- must not be oriented upwards in order to avoid any deposit of water or moisture on them.
- must be sufficiently and regularly (re)tightened using an appropriate wrench.
