MoTeC Configuration 43
Bar 1 and Bar 2
The Bar 1 and Bar 2 facility provides the means to configure two bar type
graphs. One could most likely be configured to graphically represent the
current value of the Lap Gain/Loss Running channel as a Gain / Loss bar, the
other can be configured as any other useful indicator such as a battery
voltage, fuel, temperature or pressure gauge.
Two intermediate points can be set, see the battery voltage example below.
However, a gain/loss bar can only use the first intermediate point.

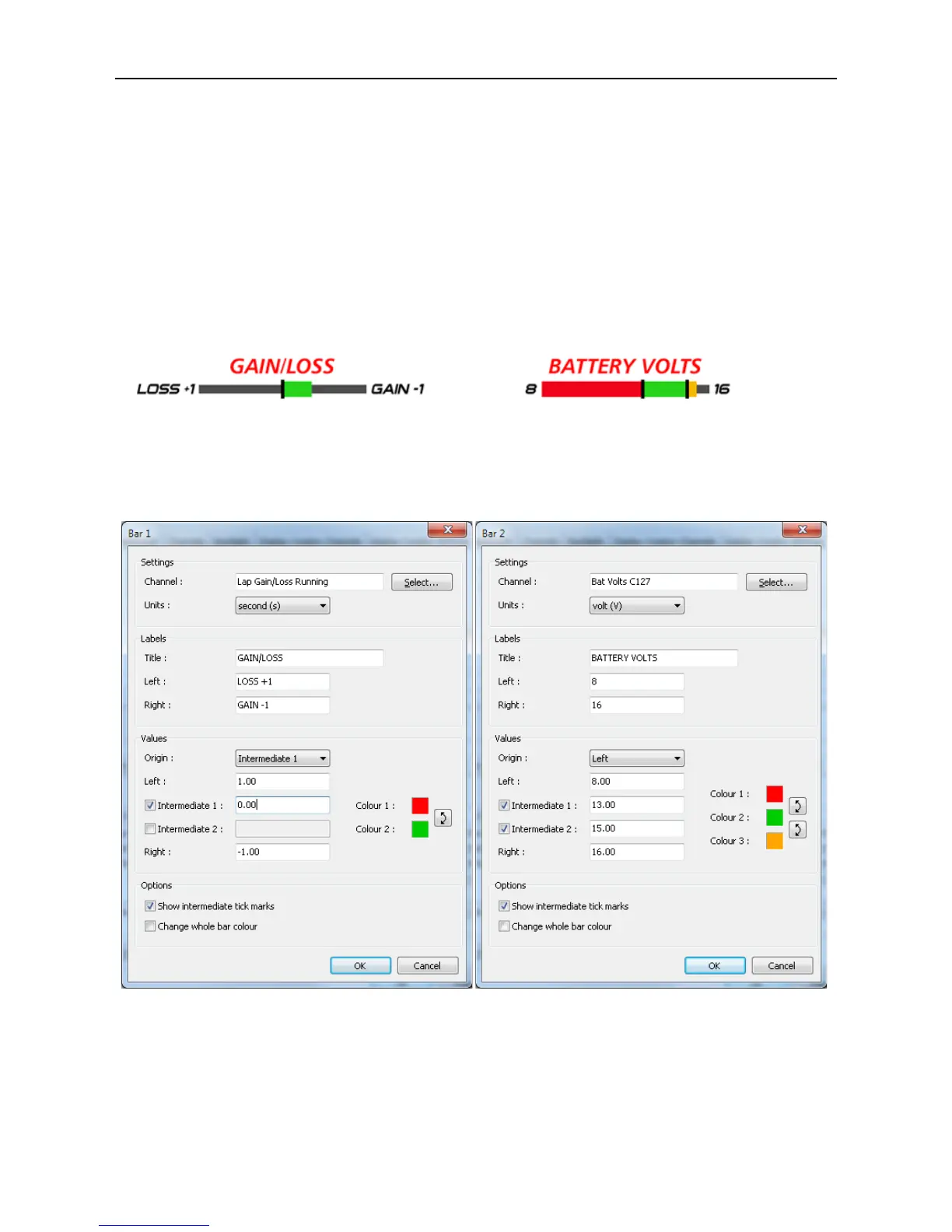

Example Bar 1 (gain / loss bar) and Bar 2 (battery voltage gauge)
These bars can be customised to suit a user's preference. The properties for
these two examples are shown below.
In the battery volts example, with the Change whole bar colour option not
selected, the three specific colours will display in the relative section of the bar
according to the channel value, as shown in the example.
If the Change whole bar colour option is selected, the whole bar colour will be
red if the channel value is from 8 to 13, green from 13 to 15 and red from 15
to 16.
