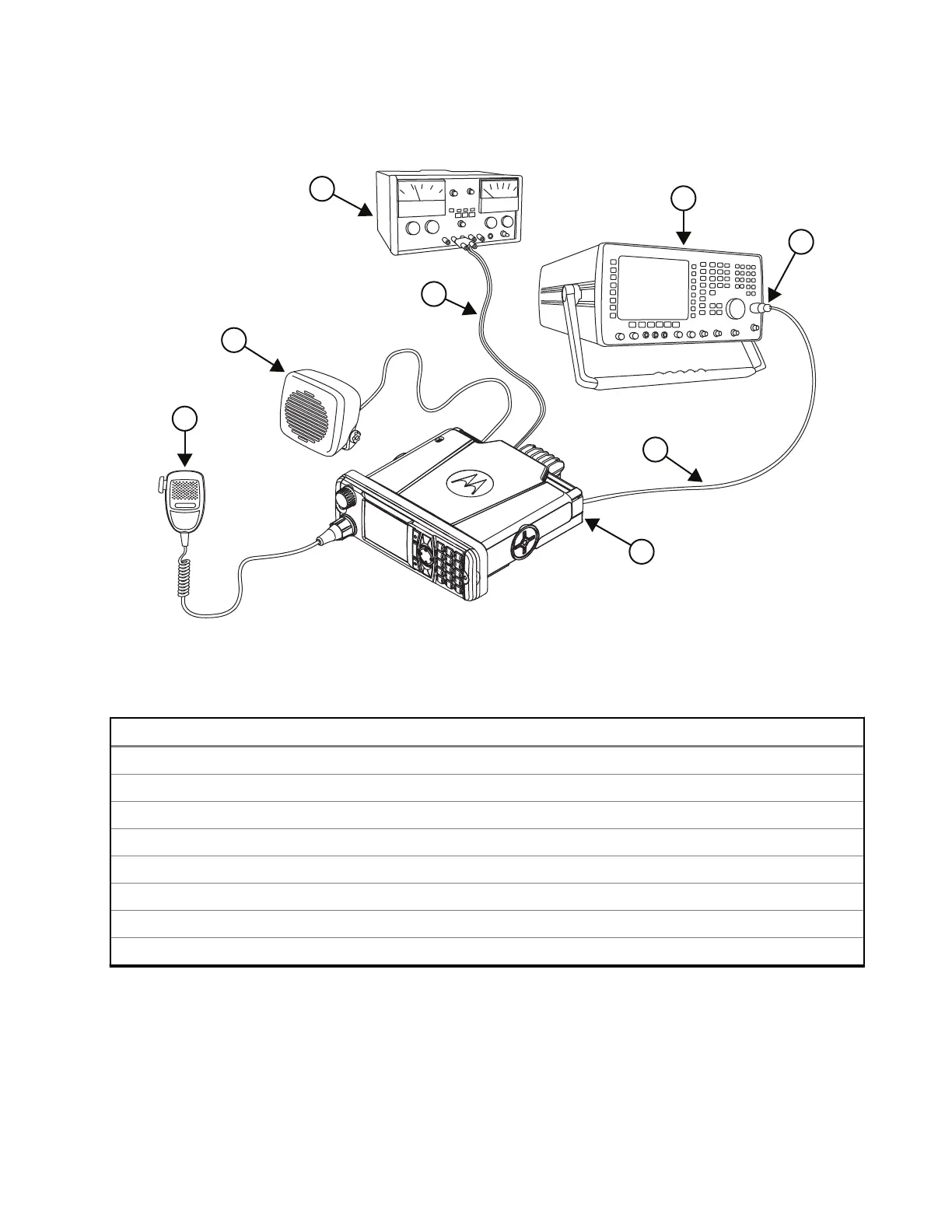

Figure 2: Typical Test Setup
1
5
6
2
3
4
7
8
Table 31: Typical Test Setup
Annotation Description
1 Microphone
2 Speaker
3 Power Supply 13.2 V 5 A
4 DC Cable
5 IFR 39xx
6 N-Type RF Connector
7 RF-Cable
8 BNC-Type RF Connector
4.2
Test Equipment
The table below lists the special test equipment required for servicing TETRA mobile terminals.
MN009999A01-AA
Chapter 4: Test Setup and Testing
