Motorola solutions MXM600 - Figure 3: Dual Control Head with a Combination of IP54 or IP67 RECH, and TSCH

The Ethernet Remote Mount is configurable using the following configurations:
● Remote Mount installation with IP54 RECH
● Remote Mount installation with IP67 RECH
● Remote Mount installation with TSCH
● Dual Control Head with two IP54 RECH
● Dual Control Head with two IP67 RECH
● Dual Control Head with two TSCH
● Dual Control Head with a combination of IP54 RECH and TSCH
● Dual Control Head with a combination of IP67 RECH and TSCH
● Dual Control Head with a combination of IP54 RECH and IP67 RECH
● Multi-Radio Control installation with TSCH
● Multi-Radio Control installation with IP54 RECH
● Multi-Radio Control installation with IP67 RECH
NOTE:
● The Expansion Head has a protection grade of IP54 when all dust covers are closed. To maintain
IP54 sealing when connecting an RJ50 Remote or Mobile Ethernet Cable, the dust cover from the
cable must be properly sealed against the Expansion Head front housing.
● To maintain IP54 sealing when connecting an RS232 data cable, use an IP54 specified cable.
● The flex is not designed for continuous insertion. Replace the flex after several uses.

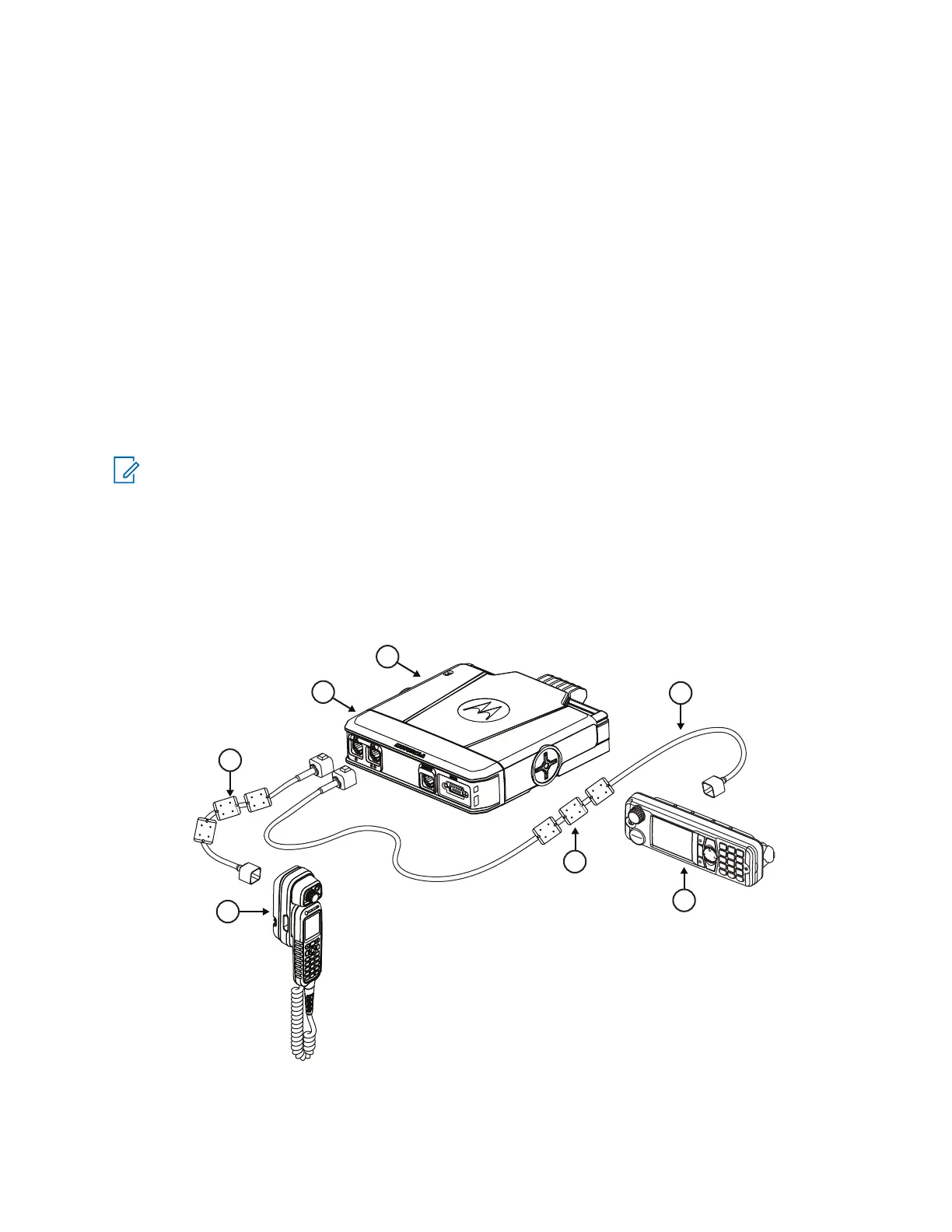

Figure 3: Dual Control Head with a Combination of IP54 or IP67 RECH, and TSCH
3
2
1
6
5
5
4
MN009999A01-AA
Chapter 5: Maintenance
63
