5.4.3
Assembling the Databox Expansion Head Flex
CAUTION: The flexes are not designed for multiple insertions. Please inspect for abnormalities on the
flexes before reassembly or when troubleshooting.
Procedure:
1. Insert the 18-pin flex tail of PA003639A01.
2. Insert the 6-pin flex tail of PA003639A01.
3. Insert the Main Flex, PA003640A01.
CAUTION:
Do not insert both tails at the same time.
Ensure that the white legend on the flex is aligned to the connector edge.

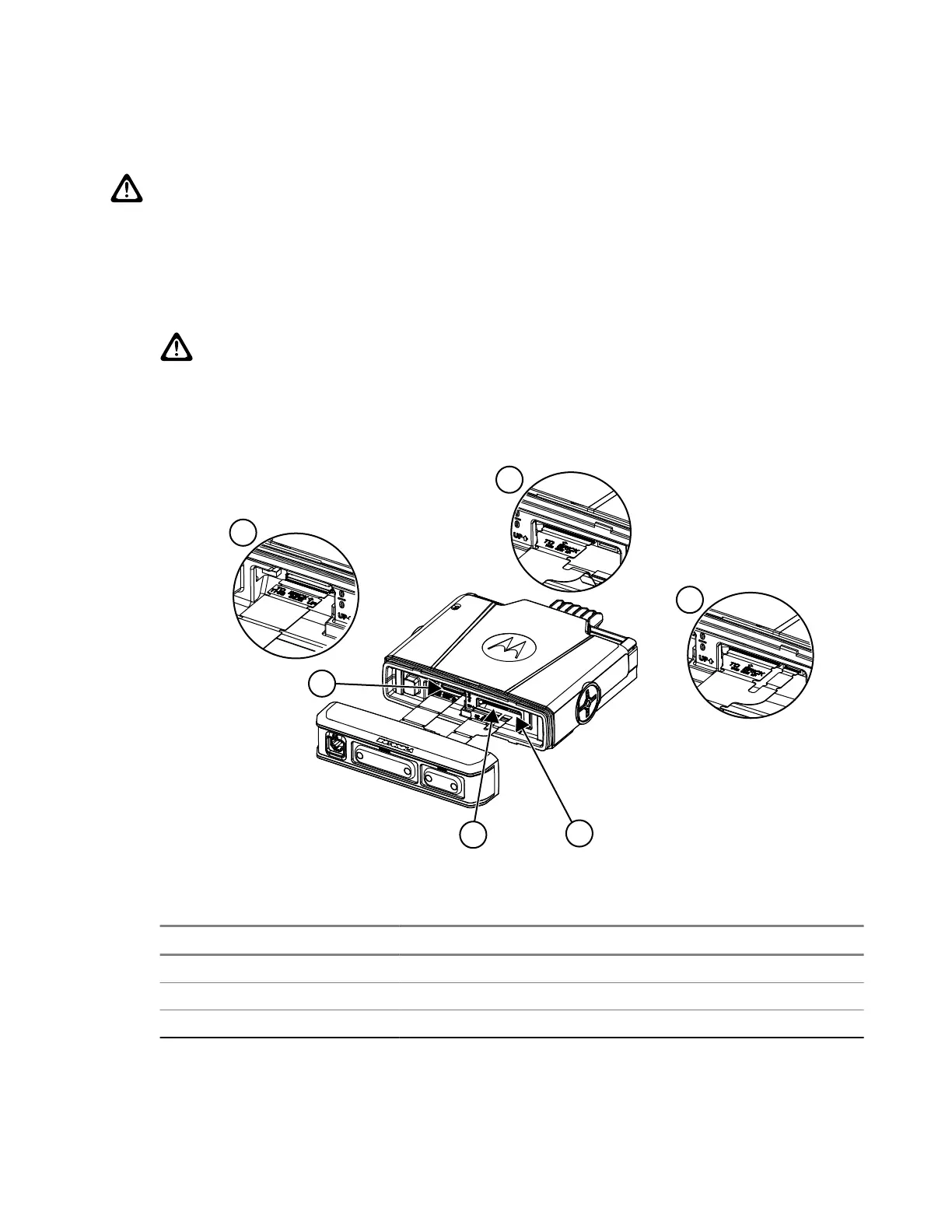

Figure 12: Databox Expansion Head (DEH) Connector
1
2
3
3
1
2
Table 42: DEH Flex Connectors
Number Description
1 Y-Flex, PA003639A01 (18-pin flex tail)
2 Y-Flex, PA003639A01 (6-pin flex tail)
3 Main Flex, PA003640A01
