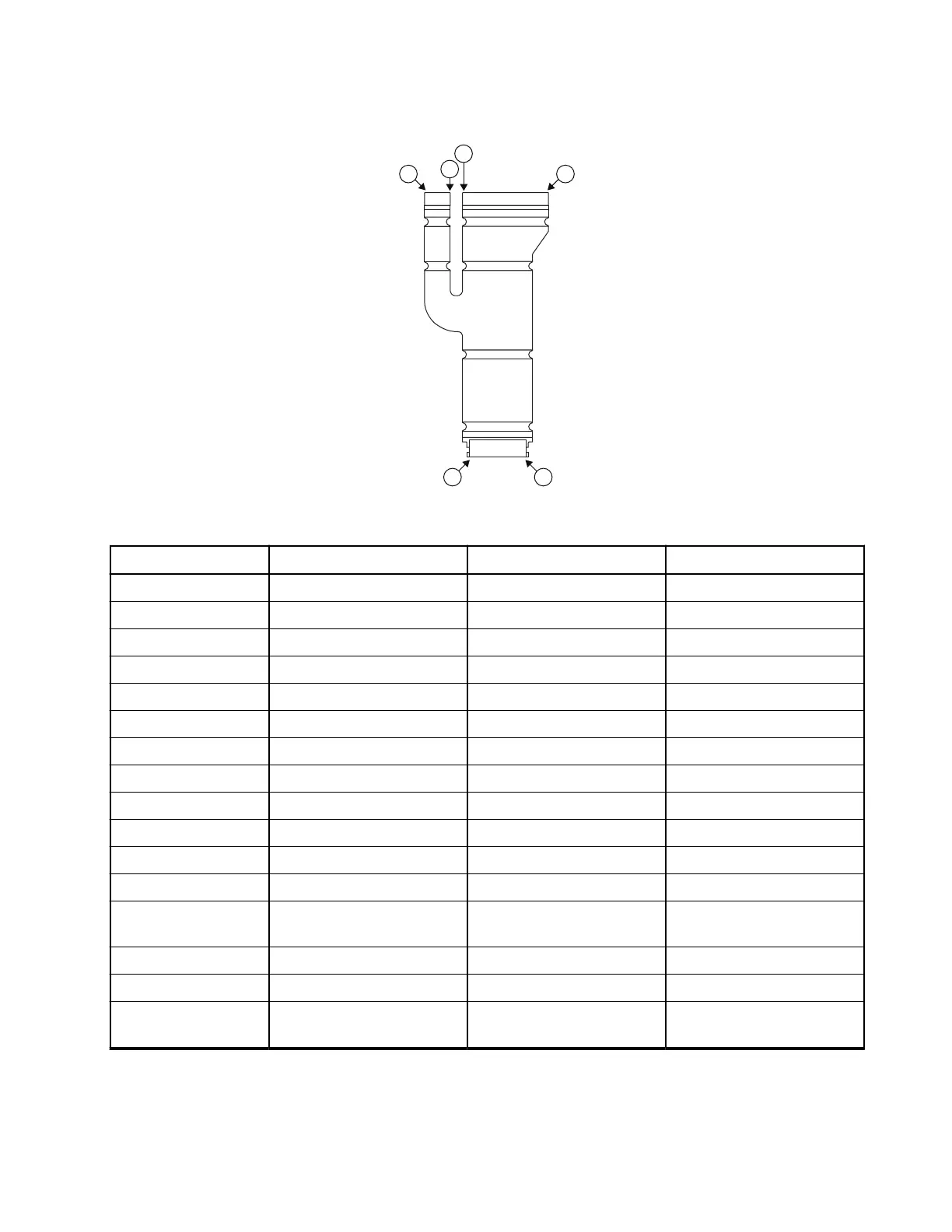

Figure 14: SREH or DEH Y-Flex
1 30
1
6
18
1
Table 43: Y-Flex Contacts
30 Contacts 18 Contacts 6 Contacts Remarks
1 - 1 -
2 - 2 -
3 - 3 -
4 - 4 -
5 - 5 -
6 - 6 -
7 18 - -
8 17 - -
9 16 - -
10 15 - -
11 14 - -
12 13 - -
13, 14, 15, 16, 17,
18, 19, 20
12, 11, 10, 9, 8, 7 - Connected lines
21 6 - -
22 5 - -
23, 24, 25, 26, 27,
28, 29, 30
4, 3, 2, 1 - Connected lines
